A-17

Scanner

2000 microEFM Appendix A

simplify eld wiring. Then, once in the eld, the user connects all eld wiring directly to the terminal strip

without opening the Scanner 2000 enclosure.

The terminal housing is available with either brass or stainless steel plugs.

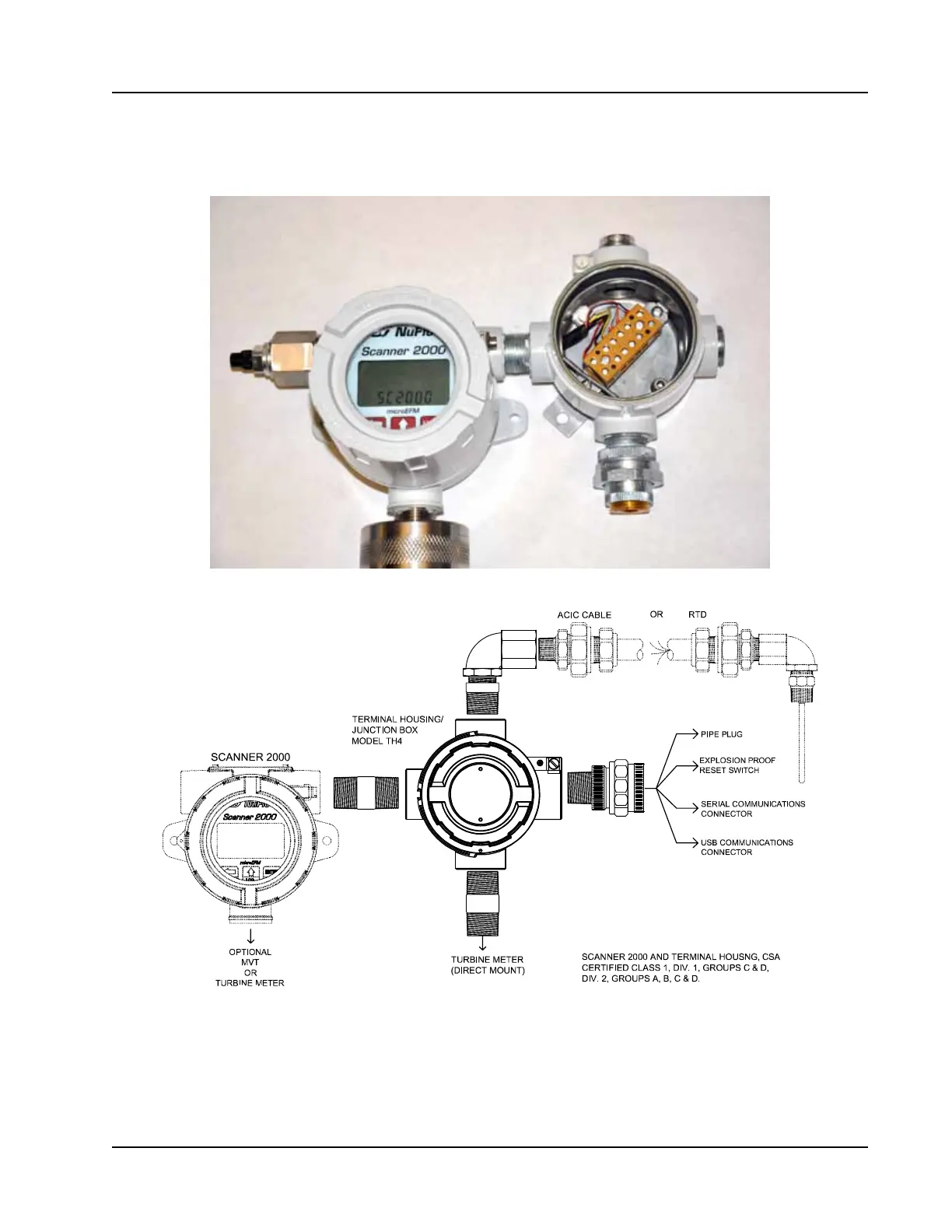

Figure A.22—Model TH4 terminal housing with cover removed

Figure A.23—Typical installation of Scanner 2000 with Model TH4 terminal housing
