Cameron Scanner 2000 microEFM User Manual

64
Section 3 Scanner
®
2000 microEFM
When an external power supply is used as the primary power source, the lithium battery pack serves as
a backup power supply. The use of an alternate power source extends battery life and helps ensure that
timekeeping and volume accumulation will not be interrupted during a power failure.
External Power Supply

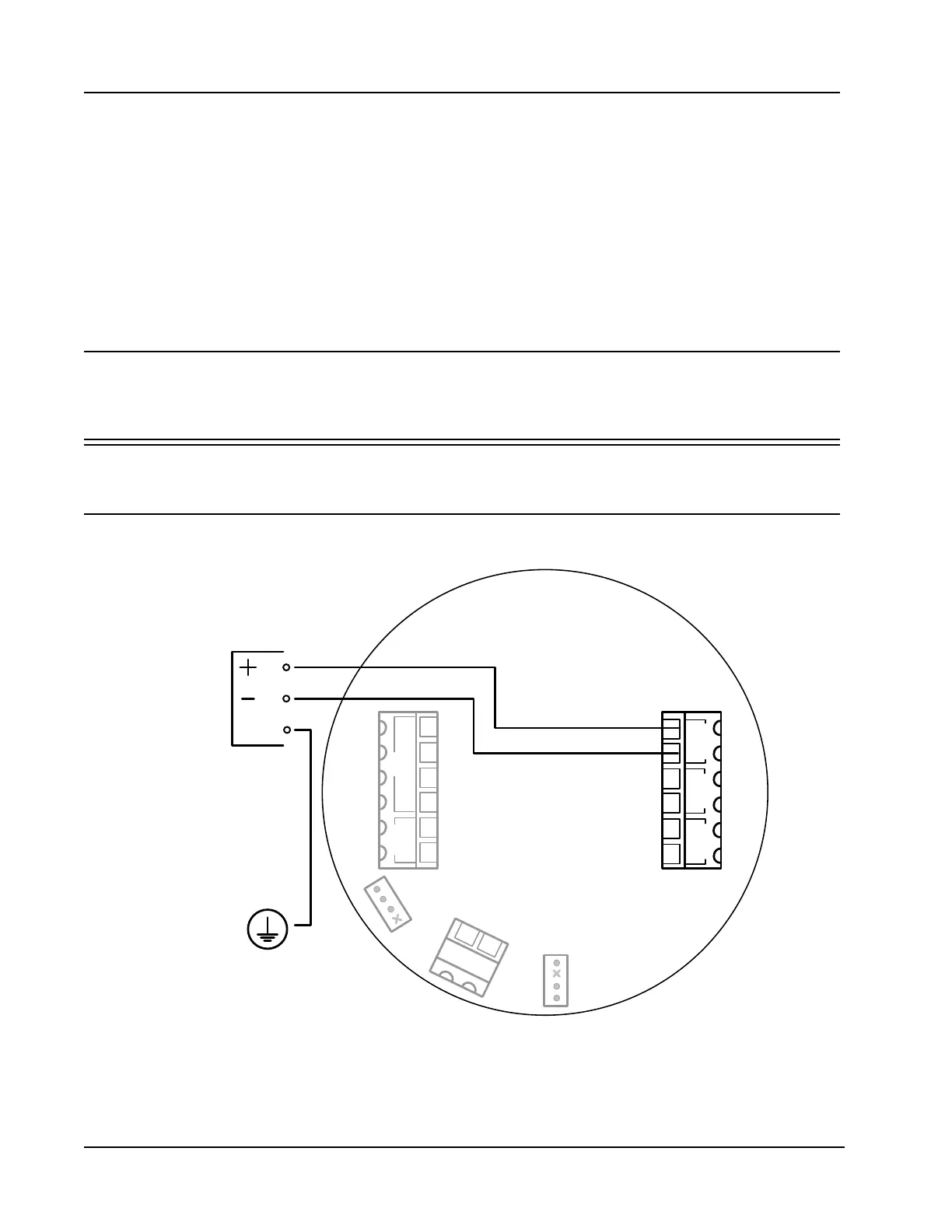

The Scanner 2000 can be connected to a remote power supply by a two-conductor cable (Figure 3.3). The
power supply and cable must be capable of supplying 6 to 30 VDC @ 50 mA.
The external power supply must be an approved SELV source, insulated from the AC main by double/
reinforced insulation per CSA C22.2 No.61010-1-04 / UL 61010-1 – 2nd Edition.
Important In all applications using an external power supply, a switch or circuit breaker must be in-
cluded in the safe area external power supply installation within easy reach of the opera-
tor. The switch or circuit breaker must be marked as the “disconnect” for the safe area
external DC power supply.
Important If the main circuit board is marked with a revision level of 02 or older (revisions 01, C, B,
or A), a zener diode (Part No. 1.5KE33CA) must be installed for CE approval. The zener
diode is not required for revision 03 and newer circuit boards.
J1
TB1 TB2
TB3
BATTERY
13
14
J2
POWER
RTD
PORT 2
PORT 1
I
+
R
+
R
-
I
-
SCANNER 2000
Main Circuit Board
PN: 9A-30160010
POWER
SUPPLY
6 to 30
VDC
–
+
–
+
–
+
–
+
2
3
4
5
6
1
7
8
9
10
11
12
TFM 1
GND
GROUND
SCREW INSIDE
ENCLOSURE
SWITCH
DIG OUT 1
Figure 3.3—External power supply wiring
