Section 1 Scanner
®
2000 microEFM

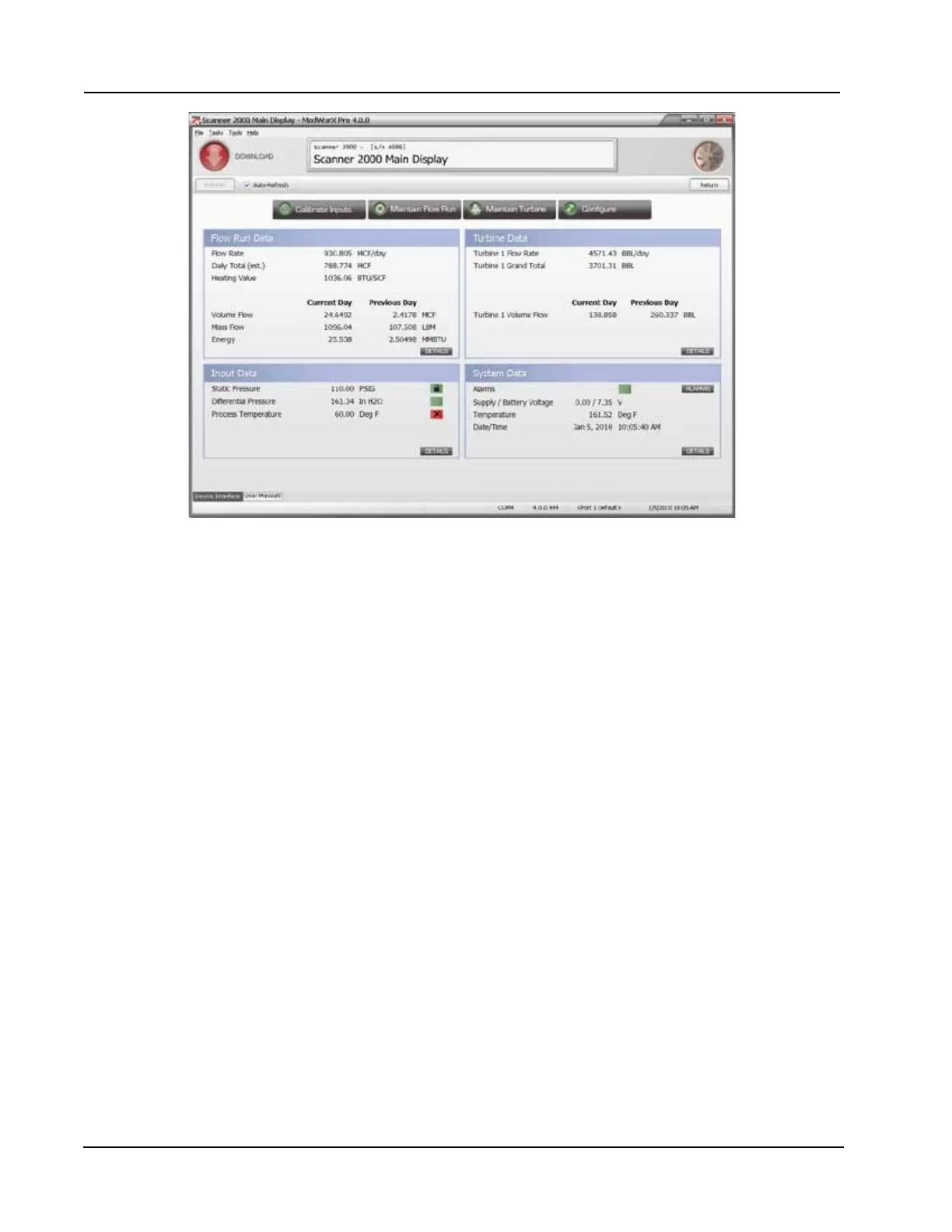

Figure 1.6—ModWorX™ Pro software interface
The standard Scanner 2000 microEFM saves up to 2304 interval logs (interval periods are adjustable from
5 sec to 12 hours ), 768 daily logs, and 1152 event/alarm logs in nonvolatile memory. With the optional
expansion board, the Scanner 2000 saves up to 6392 interval logs. A user can selectively download data logs
and instrument conguration settings using the ModWorX™ Pro software. The download les are stored in
an uneditable format on the user’s CPU, and can be viewed immediately or exported to an alternative format
(.csv, .xls, .rtf, html, Flow-Cal
®
, or PGAS
®
).
Log data can be viewed or printed as a table or a trend chart, or exported to a spreadsheet.
Event logs track user changes to ow parameters that impact log data. Such changes may include orice plate
changes, K-factor changes, input setting changes, and device events like over-range and resets. Event/alarm
logs can be viewed or printed in tabular format. In addition to showing old and new values, each event log is
time-stamped, and includes the register associated with the change.
Instructions for installing the software are provided on the installation CD pocket folder provided with each
instrument. User manuals containing step-by-step instructions on software functions are linked to the software
interface for quick and easy access (note the tabbed links at the bottom of the screen in Figure 1.6).
LCD/Keypad Functions
From the three-button keypad on the front of the instrument, the user can perform the following tasks:
• scroll through display parameters
• view daily ow totals
• save a current total
• check the temperature and system voltage
• congure basic parameters such as slave address, baud rate, time, turbine K-factor, and orice plate size
