Section 3 Scanner
®
2000 microEFM
Grounding Procedures
To power the Scanner 2000 microEFM with an external DC supply, route the ground conductor through a
conduit opening in the top of the Scanner 2000 enclosure with the power conductors and connect it to the
ground screw inside the enclosure (note the round sticker that marks this location in Figure 3.1).
If national or local electrical codes require the enclosure to be grounded, a protective earth grounding
conductor may be required. To install a protective earth ground, connect an earth ground conductor to the
stainless ground lug near the top of the Scanner 2000 enclosure (also shown in Figure 3.1) or to the internal
ground screw, and connect the other end to a ground rod or other suitable system earth ground. The ground
lugs will accept wire sizes from 14 AWG solid conductor to 4 AWG stranded conductor.
Internal
ground screw
External
ground screw

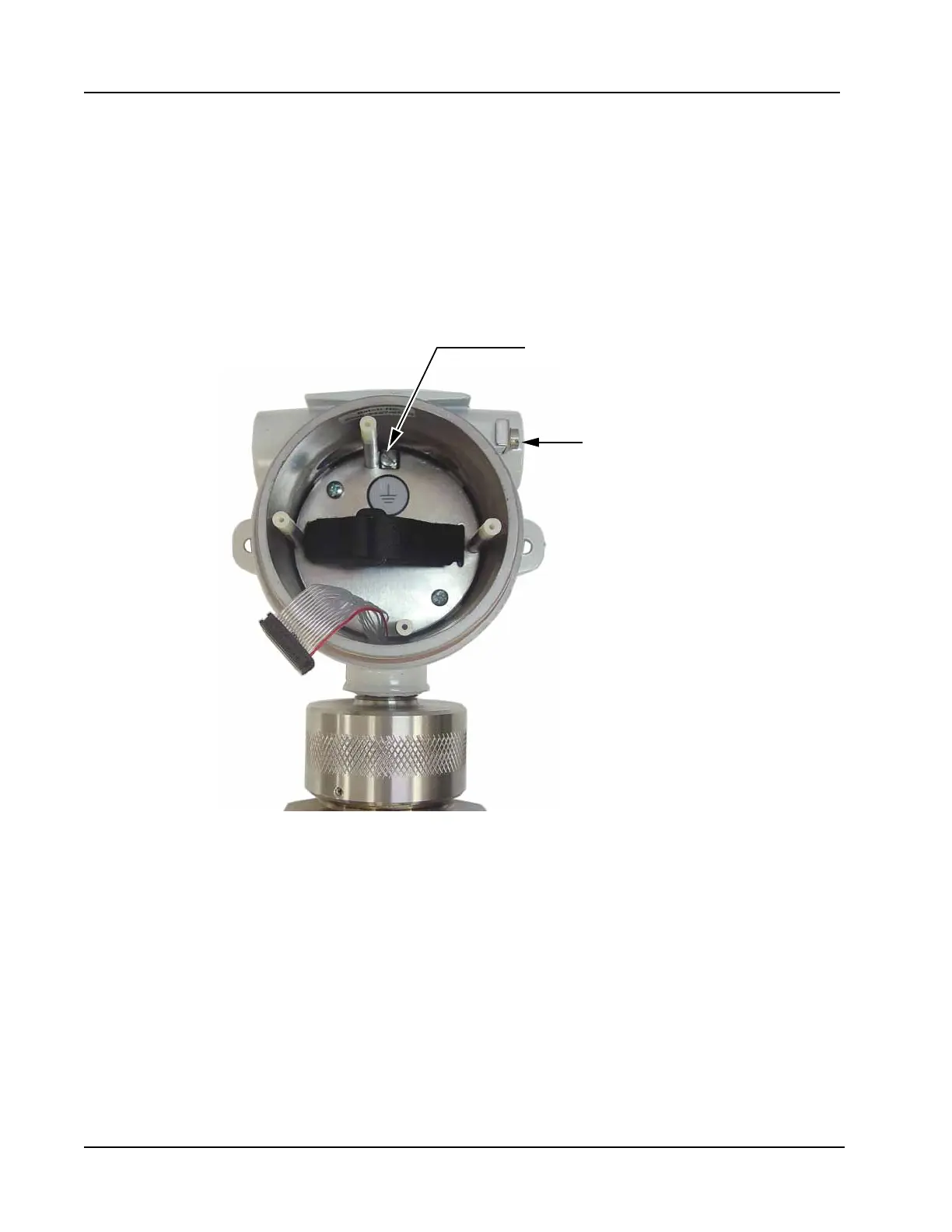

Figure 3.1—Ground screw locations
