68
Section 3 Scanner
®
2000 microEFM
RS-485 Output—Permanent Computer Connection
The RS-485 output is required for communication with the interface software. The wiring diagram in Figure
3.7 supports a permanent connection.
TB1 TB2
POWER
TFM 1 RTD
+
PORT 2 PORT 1
I+
+
R+ R
-
I
-
PORT 2 RS-485
COMMUNICATIONS
PORT 1 RS-485
COMMUNICATIONS
SCANNER 2000
Main Circuit Board
PN: 9A-30160010
J1
TB3
BATTERY
13
14
J2
2
3
4
5
6
1 7
8
9
10
11
12
SWITCH
DIG OUT 1
+
+
+
+

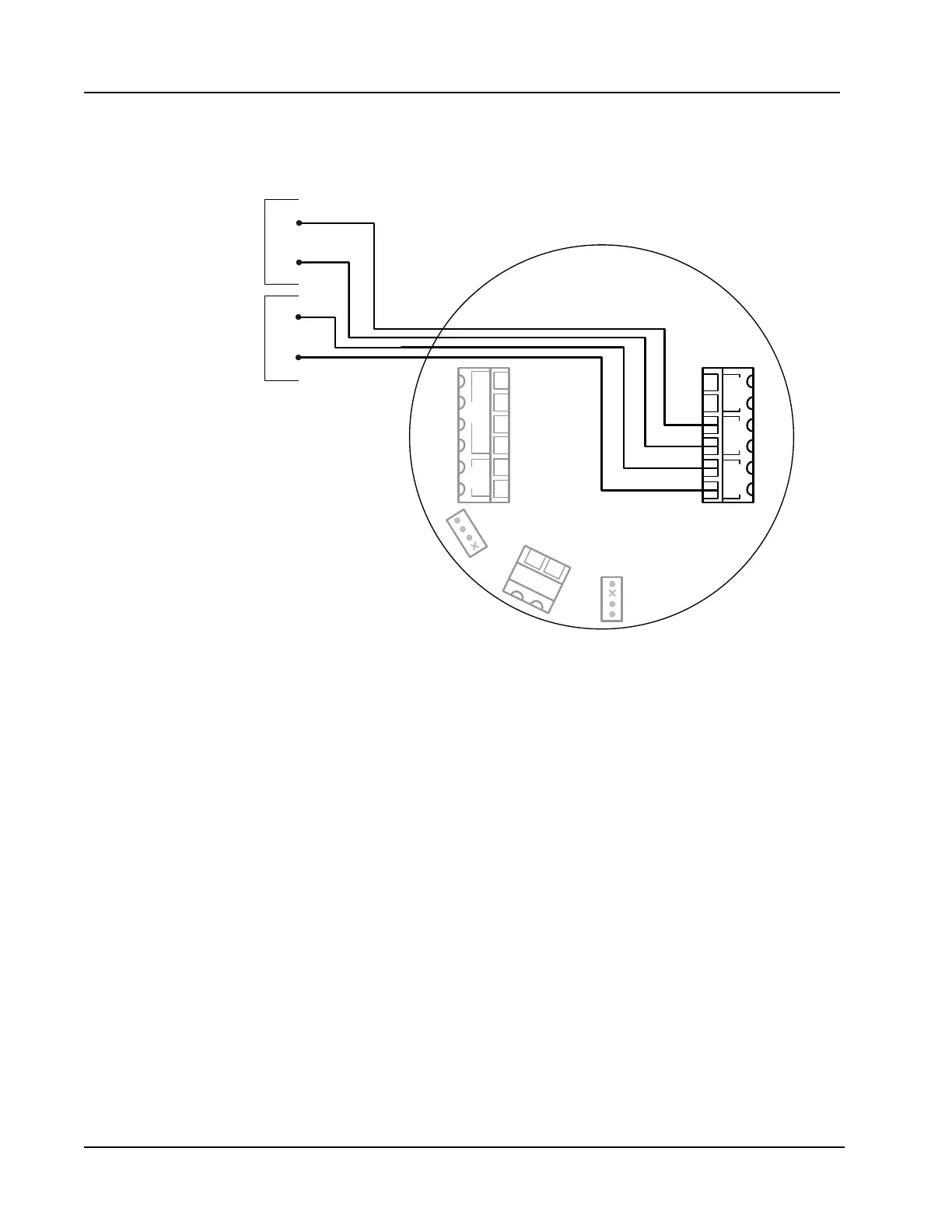

Figure 3.7—RS-485 output (permanent connection)
