Section 2 Scanner
®
2000 microEFM
7000 Series
turbine meter
M20 to 3/4”-14 NPT reducer
3/4”-14 NPT to M20 stand-off tube
approx. 9.00
(228.6)

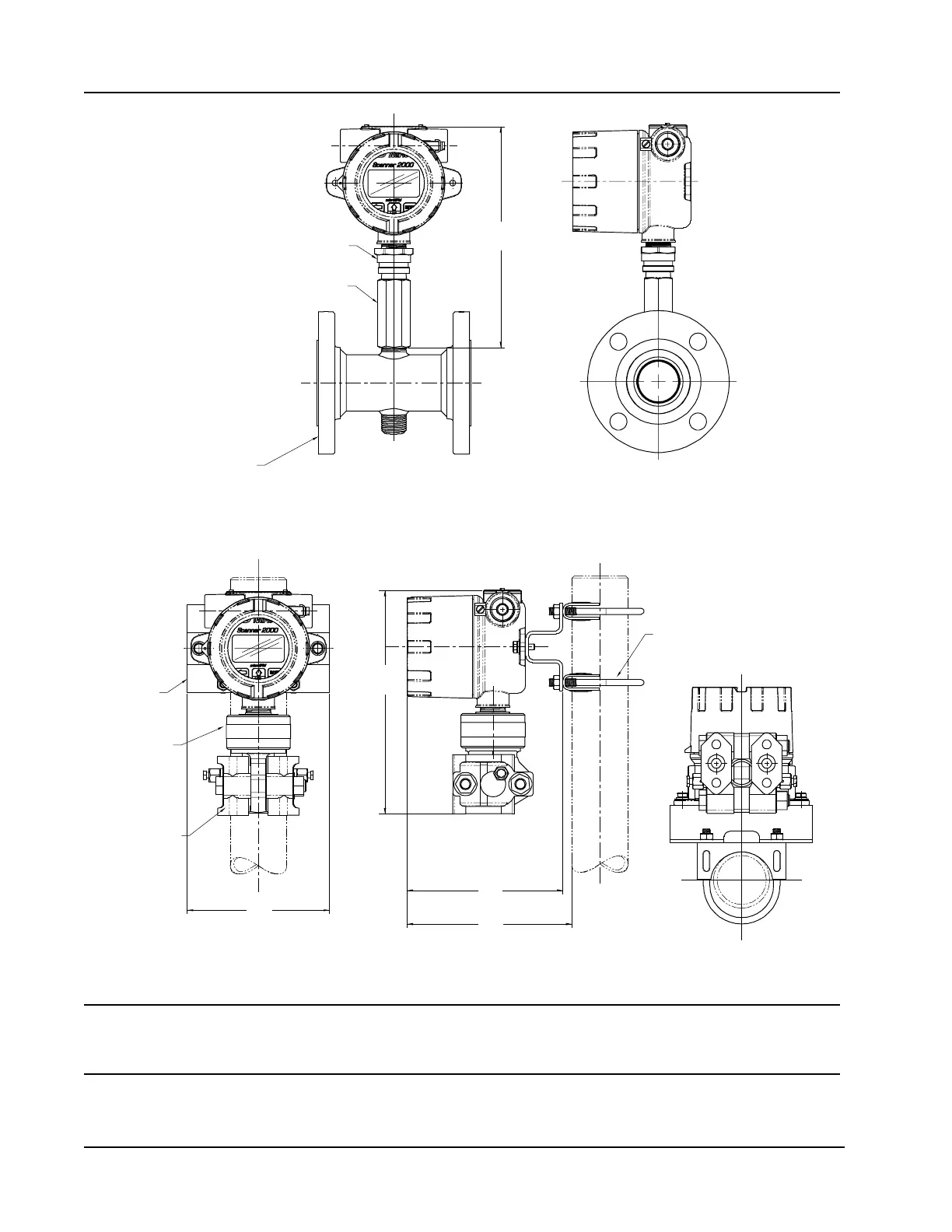

Figure 2.3—Scanner 2000 direct-mounted to a Barton 7000 Series owmeter (ATEX-approved only when
direct-mounted to a Barton 7000 Series owmeter)
Pole
mount kit
MVT
MVT adapter
Pole
mount kit
6.00
(152.4)
6.95
(176.5)
6.56
(166.6)
9.60
(243.8)
Figure 2.4—Scanner 2000 with MVT, remote-mounted on a 2-in. pole using a NuFlo hardware kit (Part No.
9A-30028004)
Important The vertical pipe mount conguration shown in Figure 2.4 is not recommended for side-
port MVTs when mated with a block manifold for liquid or steam measurement. A hori-
zontal pipe mount should be considered for these installations.
