Cisco A9K-SIP-700 Configuration Guidelines

Router Distinguisher = 1.1.1.1:32775
VE ID = 5
VE Block Offset = 1
VE Block Size = 10
Label Base = 16120
Minimum Configuration for BGP Autodiscovery with LDP Signaling
This example illustrates the minimum L2VPN configuration required for BGP Autodiscovery with LDP
Signaling, where any parameter that has a default value is not configured.
(config)# l2vpn
(config-l2vpn)# bridge group {bridge group name}
(config-l2vpn-bg)# bridge-domain {bridge domain name}
(config-l2vpn-bg-bd)# vfi {vfi name}
(config-l2vpn-bg-bd-vfi)# autodiscovery bgp
(config-l2vpn-bg-bd-vfi-ad)# vpn-id 10
(config-l2vpn-bg-bd-vfi-ad)# rd auto
(config-l2vpn-bg-bd-vfi-ad)# route-target 1.1.1.1:100
(config-l2vpn-bg-bd-vfi-ad)# commit
VPLS with BGP Autodiscovery and LDP Signaling
The following figure illustrates an example of configuring VPLS with BGP autodiscovery (AD) and LDP
Signaling.

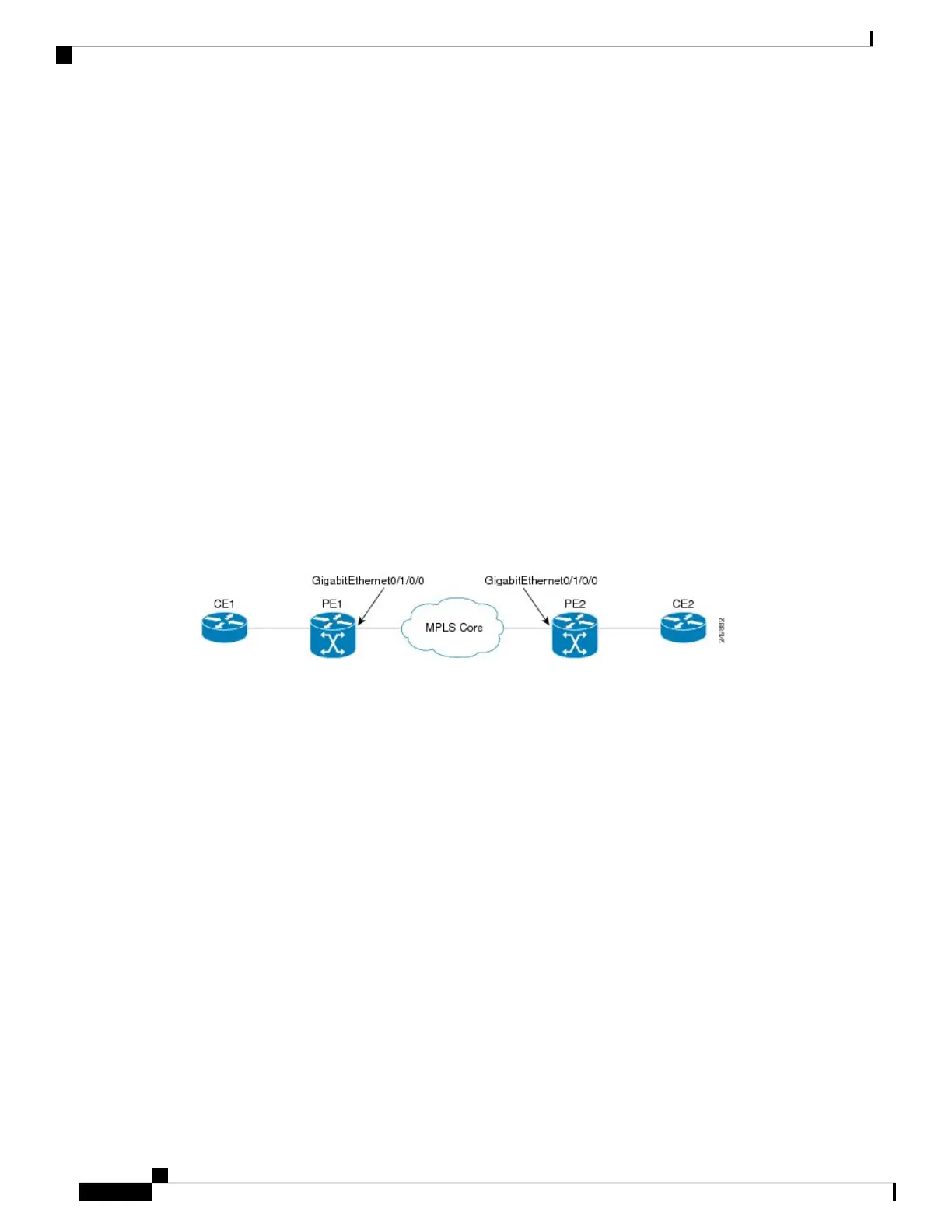

Figure 36: VPLS with BGP autodiscovery and LDP signaling
Configuration at PE1:
l2vpn
router-id 10.10.10.10
bridge group bg1
bridge-domain bd1
vfi vf1
vpn-id 100
autodiscovery bgp
rd 1:100
router-target 12:12
Configuration at PE2:
l2vpn
router-id 20.20.20.20
bridge group bg1
bridge-domain bd1
vfi vf1
vpn-id 100
autodiscovery bgp
rd 2:200
router-target 12:12
signaling-protocol ldp
vpls-id 120:100
