--> Creates an EFP for null S-tagged frames.
interface GigabitEthernet0/0/0/10.102 l2transport
encapsulation dot1q priority-tagged
--> Creates an EFP for null C-tagged frames:
interface GigabitEthernet0/0/0/10.103 l2transport
encapsulation dot1q any
--> Creates an EFP for C-tagged frames:
To configure a port-based service, all the above EFPs must be added to the same
edge bridge domain.
Note

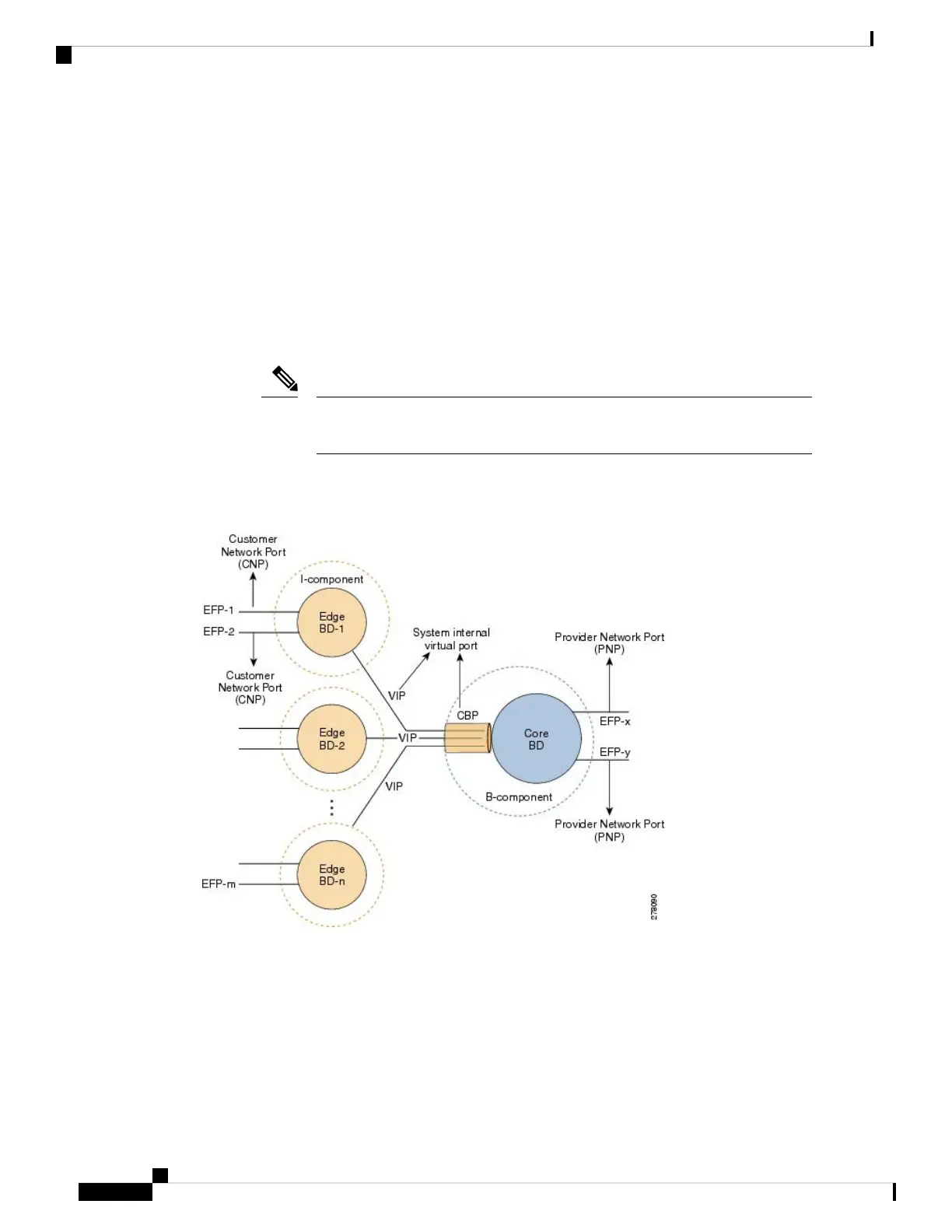

The following figure shows the PBB bridge component topology on the Cisco ASR 9000 Series Routers.
Figure 42: PBB Bridge Component Topology on Cisco ASR 9000 Series Routers
Multiple I-SID Registration Protocol Lite
The 802.1Qbe—Multiple I-SID Registration Protocol (MIRP) standard provides the ability to flush learned
MAC address registration entries held in the filtering database of an I-component on a per I-SID basis. The
backbone service instance identifier (I-SID) is a field in the backbone service instance tag which identifies
the backbone service instance of a frame. MIRP defines mechanisms for I-SID flushing, and has the required
capabilities to handle topology changes that occur in networks attached to a provider backbone bridged
L2VPN and Ethernet Services Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.3.x
360
Implementing IEEE 802.1ah Provider Backbone Bridge
Multiple I-SID Registration Protocol Lite
