Cisco A9K-SIP-700 Configuration Guidelines

bridge-domain bd30
Interface bundle-Ether2.20
pbb edge i-sid 280 core-bridge core_b1
bridge group gr2
bridge-domain core_bd1
pbb core
evpn evi 1000
!
router bgp 100
bgp router-id 1.1.1.2
address-family l2vpn evpn
!
neighbor 1.1.1.100
remote-as 100
address-family l2vpn evpn
PBB-EVPN Multi Homed Network
This example shows how to configure PBB-EVPN on a Multi Homed Network with Active-Active per service
load balancing:

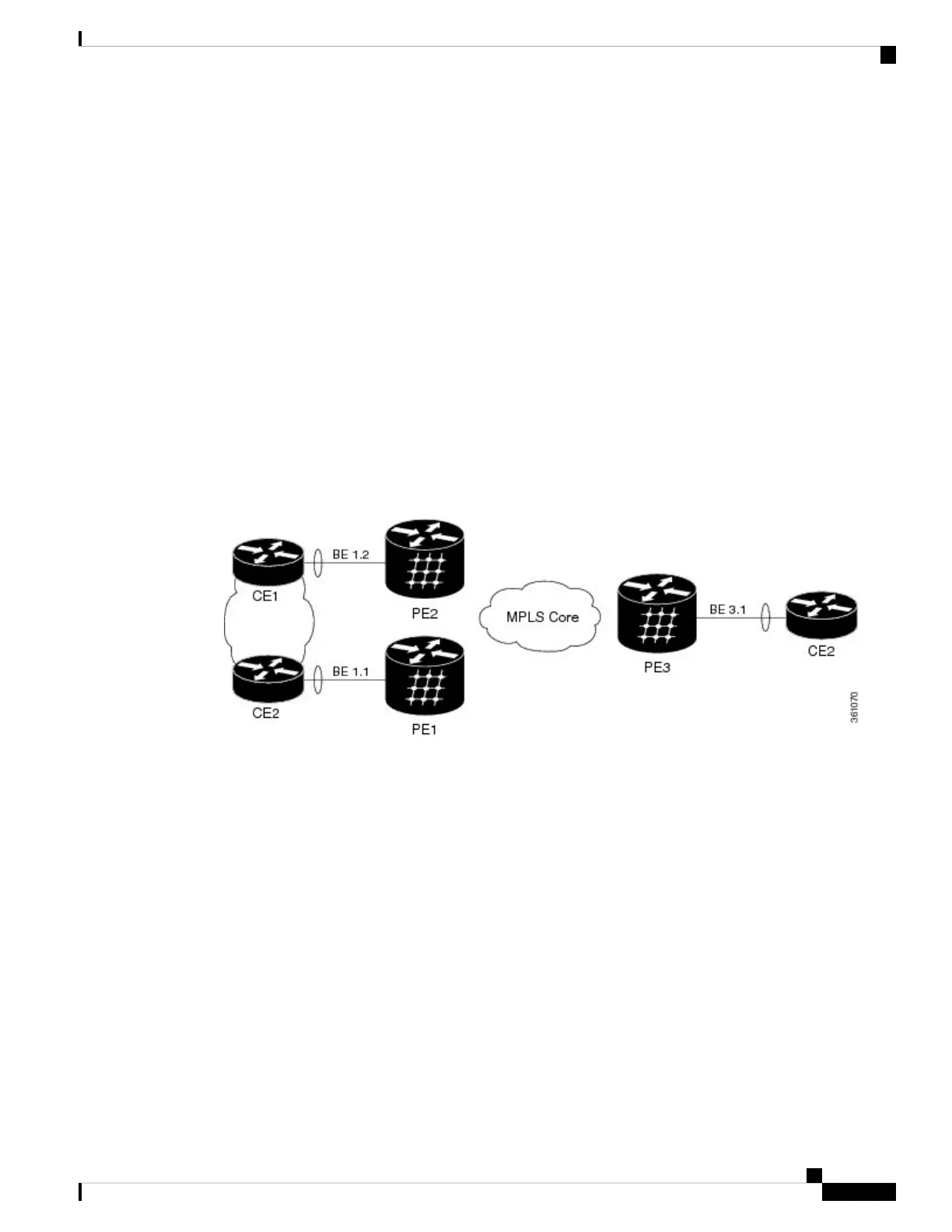

Figure 53: PBB-EVPN Multi Homed Network
Configuration on PE1:
interface bundle-Ether1.1 l2transport
encapsulation dot1q 1
evpn
interface bundle-Ether1
ethernet-segment
load-balancing-mode per-service
l2vpn
pbb
backbone-source-mac 00aa.00bb.00cc
bridge group gr1
bridge-domain bd1
interface bundle-ether1.1
pbb edge i-sid 400 core-bridge core_bd1
bridge group gr2
bridge-domain core_bd1
pbb core
evpn evi 1000
L2VPN and Ethernet Services Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.3.x
409
Implementing IEEE 802.1ah Provider Backbone Bridge
PBB-EVPN Multi Homed Network
