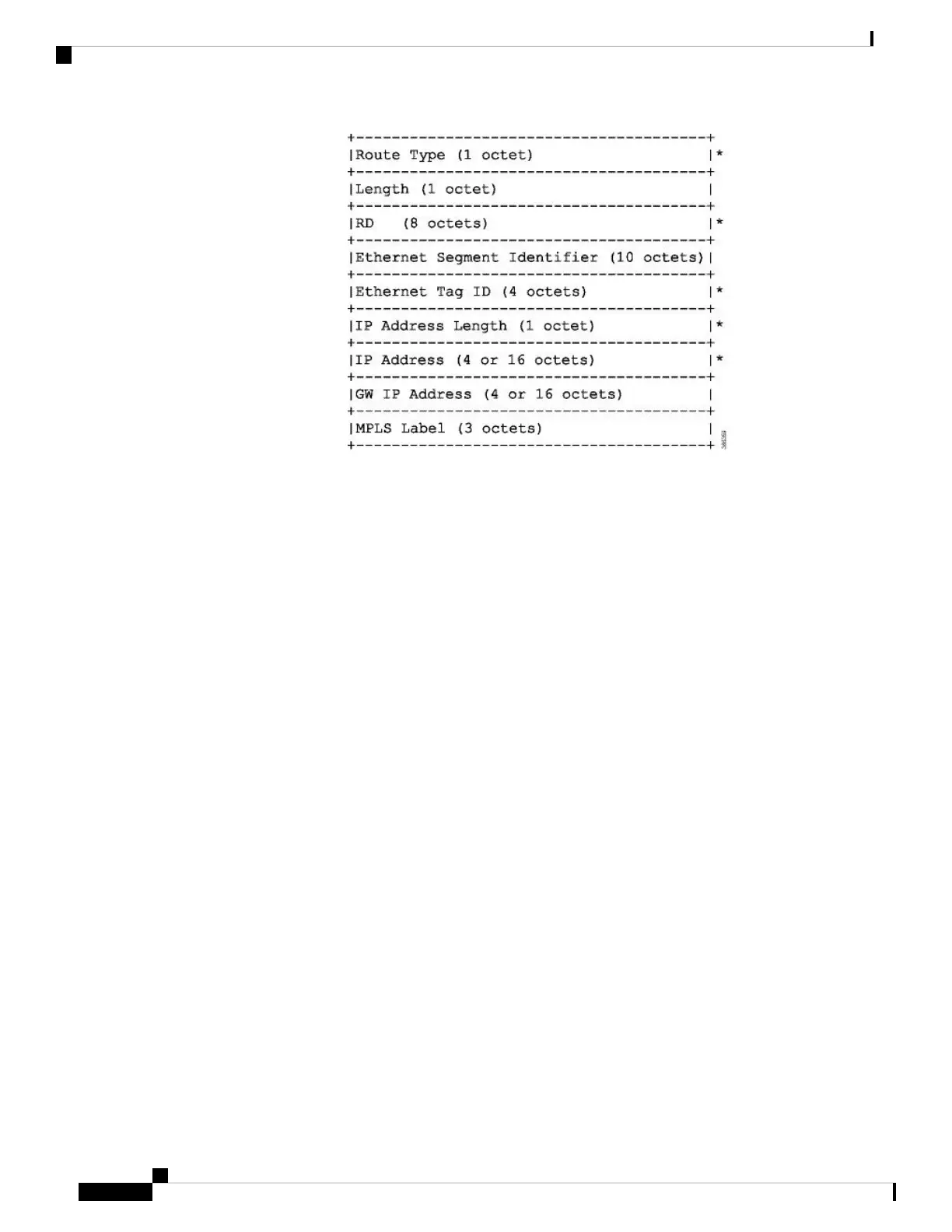

NLRI Format: Route-type 5:
[Type][Len][RD][ESI][ETag][IP Addr Len][IP Addr][GW IP Addr][Label]
Net attributes: [Type][RD][ETag][IP Addr Len][IP Addr]
Path attributes: [ESI], [GW IP Addr], [Label]
Example
route-policy evpn-policy
if rd in (30.30.30.30:1) [and/or evpn-route-type is 5] [and/or esi in
(0000.0000.0000.0000.0000)] [and/or etag is 0] [and/or destination in (12.2.0.0/16)] [and/or
evpn-gateway in (0.0.0.0)] then
set ..
endif
end-policy
EVPN RPL Attribute
Route Distinguisher
A Route Distinguisher (rd) attribute consists of eight octets. An rd can be specified for each of the EVPN
route types. This attribute is not mandatory in route-policy.
Example
rd in (1.2.3.4:0)
EVPN Route Type
EVPN route type attribute consists of one octet. This specifies the EVPN route type. The EVPN route type
attribute is used to identify a specific EVPN NLRI prefix format. It is a net attribute in all EVPN route types.
L2VPN and Ethernet Services Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.3.x
572
EVPN Features
EVPN RPL Attribute
