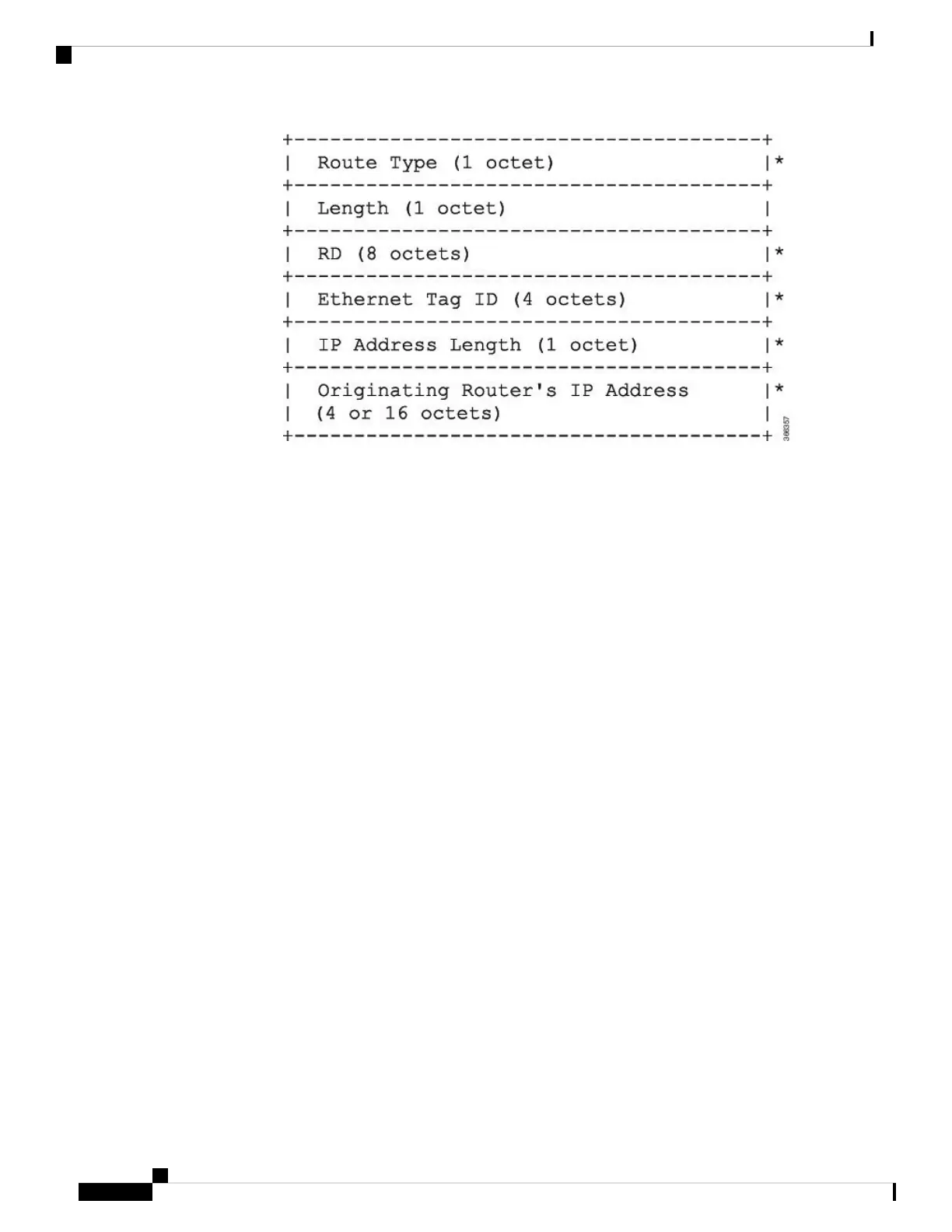

NLRI Format: Route-type 3:
[Type][Len][RD][ETag][IP Addr Len][Originating Router's IP Addr]
Net attributes: [Type][RD][ETag][IP Addr Len][Originating Router's IP Addr]
Example
route-policy evpn-policy
if rd in (1.1.1.1:300) [and/or evpn-route-type is 3] [and/or etag is 0] [and/or
evpn-originator in (1.1.1.1)] then
set ..
endif
end-policy
Route Type 4: Ethernet Segment Route
Ethernet segment routes enable to connect a CE device to two or PE devices. ES route enables the discovery
of connected PE devices that are connected to the same Ethernet segment.
An Ethernet Segment route type specific EVPN NLRI consists of the following fields:
L2VPN and Ethernet Services Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.3.x
570
EVPN Features
EVPN Route Types
