Citizen CL-E700 Series - SA Fan of the Unit Ribbon

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-16

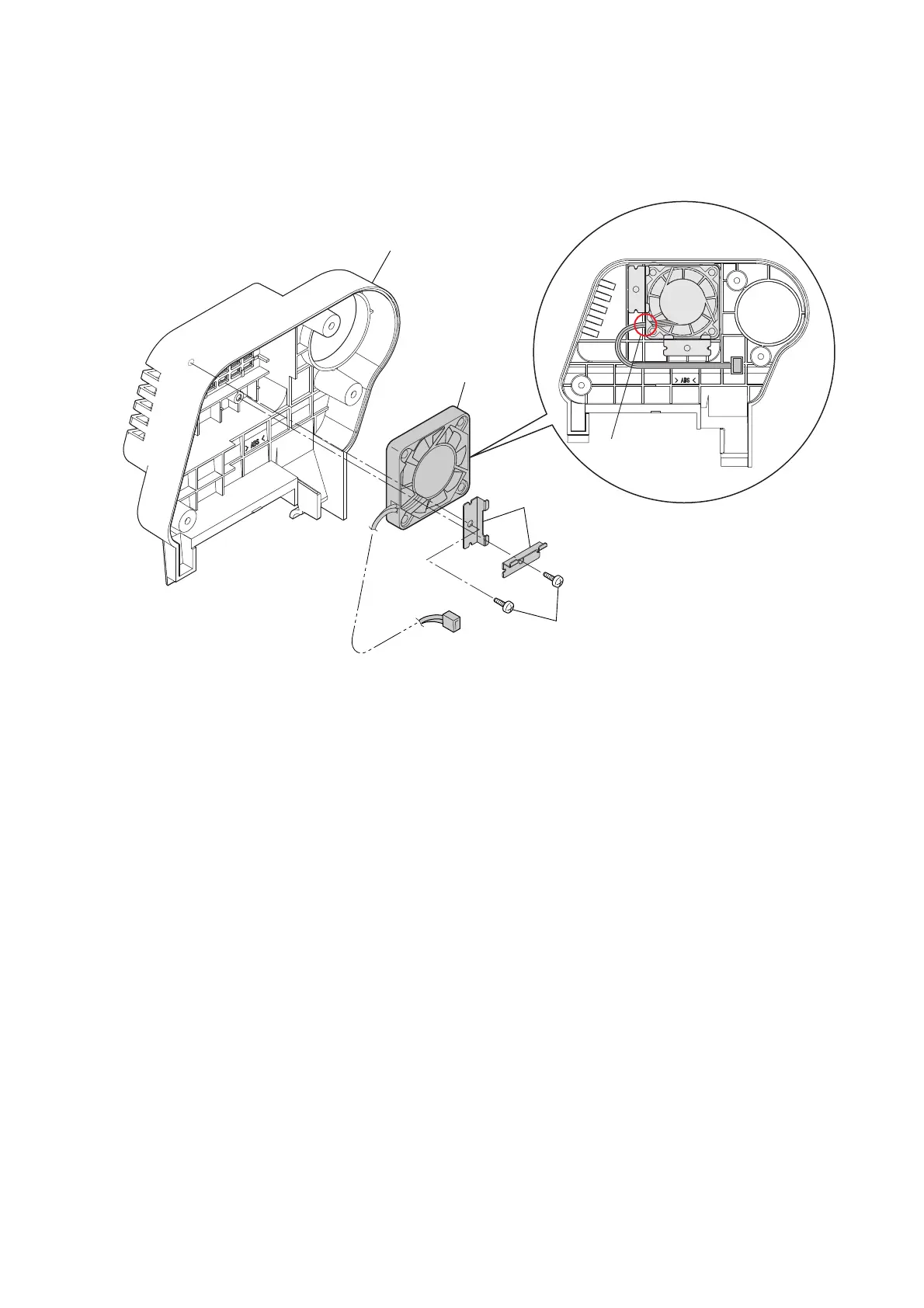

3-6-4. “SA Fan” of the “Unit Ribbon”
1. Remove the “SA2 Ribbon Unit Fan”. Refer to “3-6-3 “Unit Ribbon” Covers”.
2. Remove the 2 screws (BHT (#2) M3.0x6 (NI)) and detach the “Plate Fan” (2 pcs.).
3. Remove the “SA Fan” from the “Cover Ribbon Motor”.
Note on reassembling:
• Referring to the magnified view, insert the cable of the “SA Fan” into the groove indicated by
a circle.
J604
SA Fan
Cover Ribbon Motor
Plate Fan
BHT (#2) M3.0x6 (NI)
Groove
(Pass here.)
