Citizen CL-E700 Series Technical Manual

Chapter 3 Disassembly and Maintenance
3-5 Quick Detachment of Major Parts
CL-E700 series 3-8

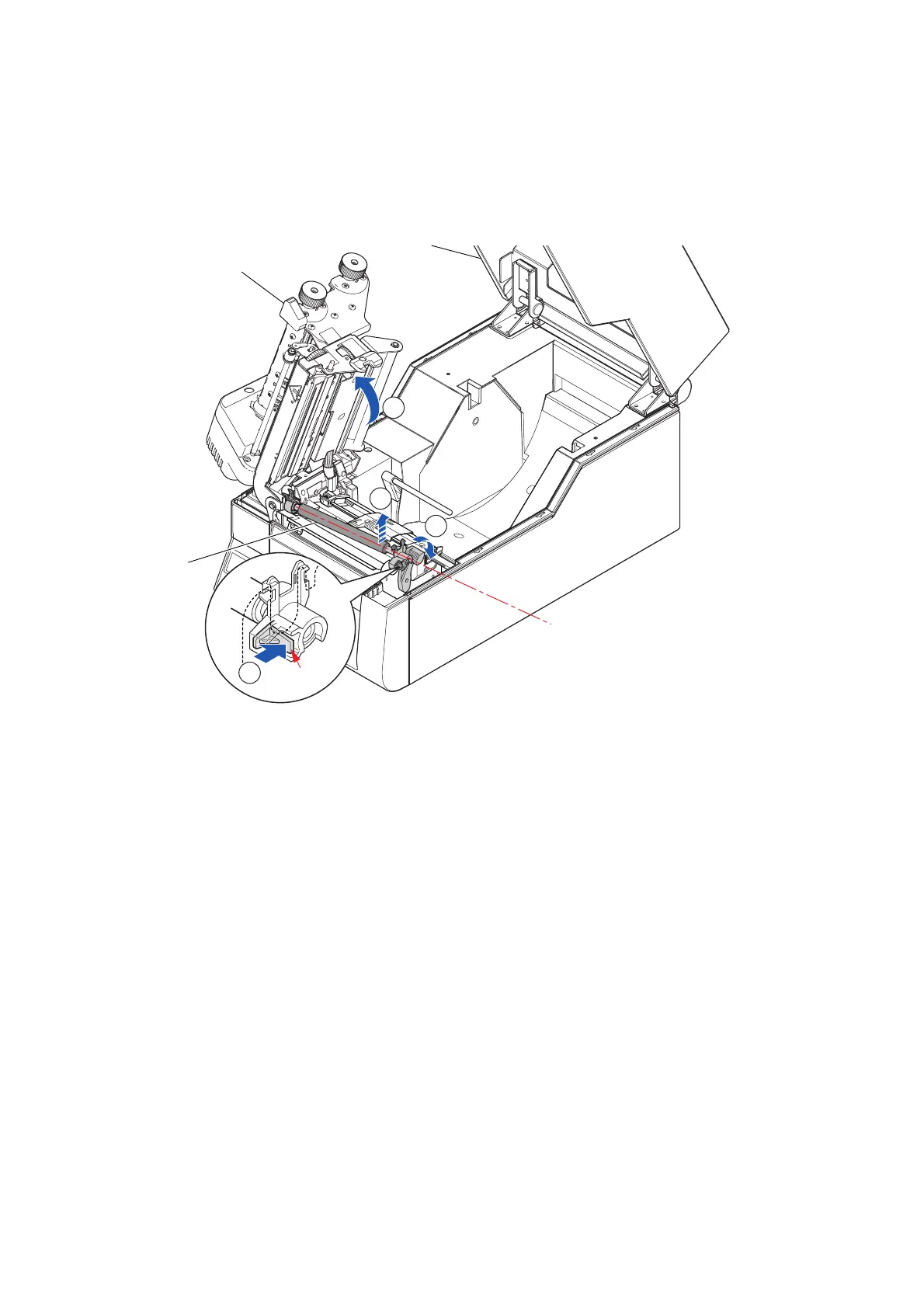

3-5-2. SA Platen
1. Open the “SA Top Cover” Block.
2. Push the “Lever Head Lock” () and open the Head Block ().
3. While pressing the part “A” of the “SA Platen” (), raise its right end by about indicated
degrees, and then remove the “SA Platen” by lifting it upwardly.
Note on reassembling:
• After mounting the “SA Platen”, be sure that it is securely engaged with the main body.
1
2
4
3
SA Platen
A
3
Head Block
"SA Top Cover" Block
