Citizen CL-E700 Series Technical Manual

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-20
3-6-8. “Plate Ribbon Guide Roller” Block
1. Remove the 2 screws (BH M3.0x3 (NI)) and detach the “Plate Ribbon Guide Roller” Block.
2. Disengage the 1 E-ring (E-Ring 3.0) and remove the “Bushing Ribbon Guide R” and “Roller
Ribbon Guide R”.
3. If required, remove the 1 screw (No0 PH(4-0.3) M2x3 (NI)) and detach the “Cam Tension
Base Adjust”.
Do not remove the “Cam Tension Base Adjust” unless you need to. Once it
is removed, readjustment is required.
Note on reassembling:
• When remounting the “Cam Tension Base Adjust”, align the + mark of the “Cam Tension
Base Adjust” with the scribe line as shown below. (The “Cam Tension Base Adjust” is set to
the mechanical center.)
Next, perform the adjustment according to “
3-7-2(2-2) Rear side “Cam Tension Base Adjust”
position ad
justment (For user)”.

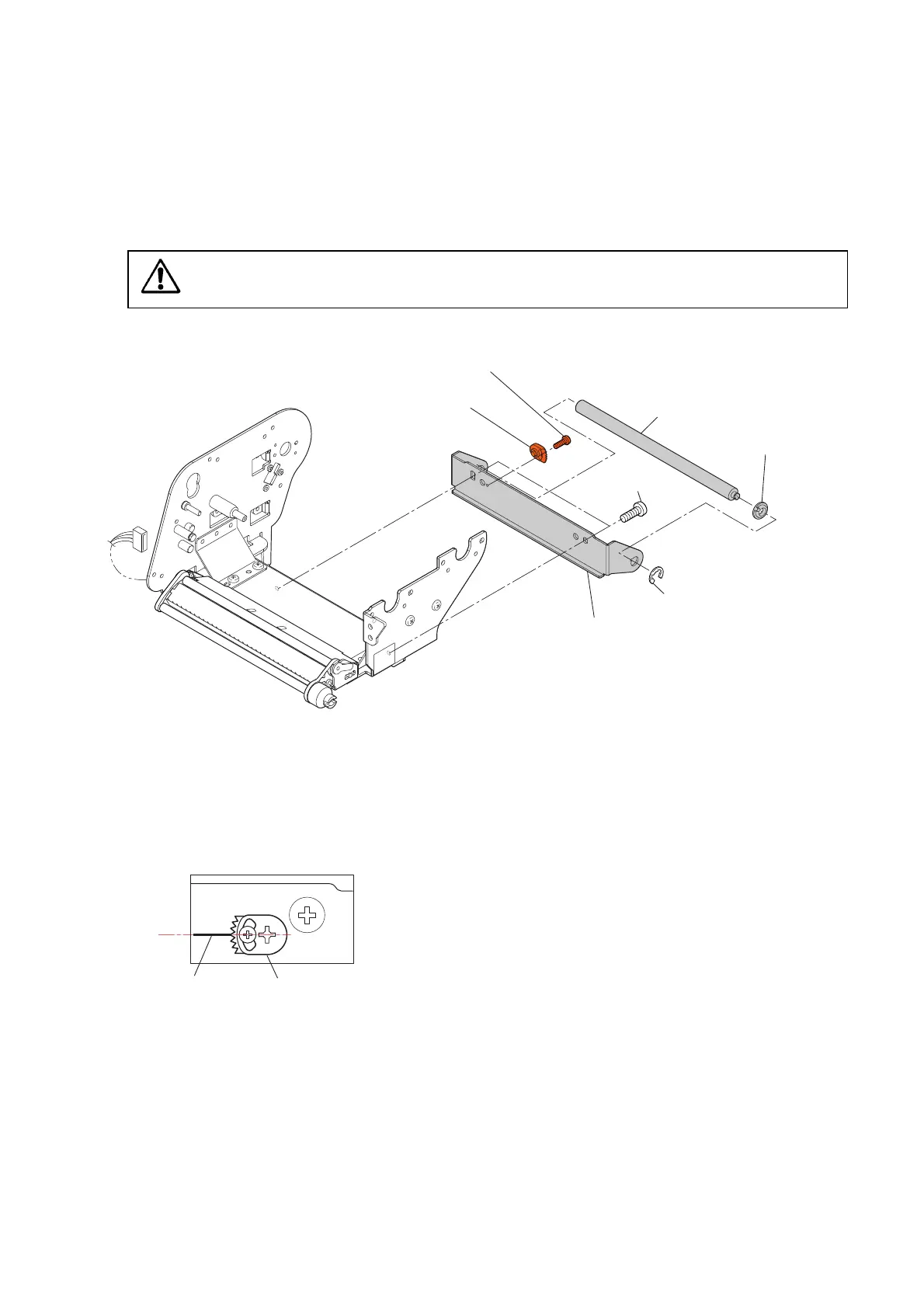

Roller Ribbon Guide R
Bushing Ribbon Guide R
E-Ring 3.0
Plate Ribbon Guide Roller
BH M3.0x3 (NI)
No0 PH(4-0.3) M2x3 (NI)
Cam Tension Base Adjust
[Do not remove unless you need to.]
[Do not remove unless you need to.]
Cam Tension Base Adjust
Scribe line
