Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
3-31 CL-E700 series
Notes on reassembling:
Once the label is peeled off, it cannot be reused.
Attach the “Ferrite Core” to the “SA Power SW Cable” () so that the 2 AC power lines pass
through the “Ferrite Core”. Then securely close the hook to fasten the “Ferrite Core”.

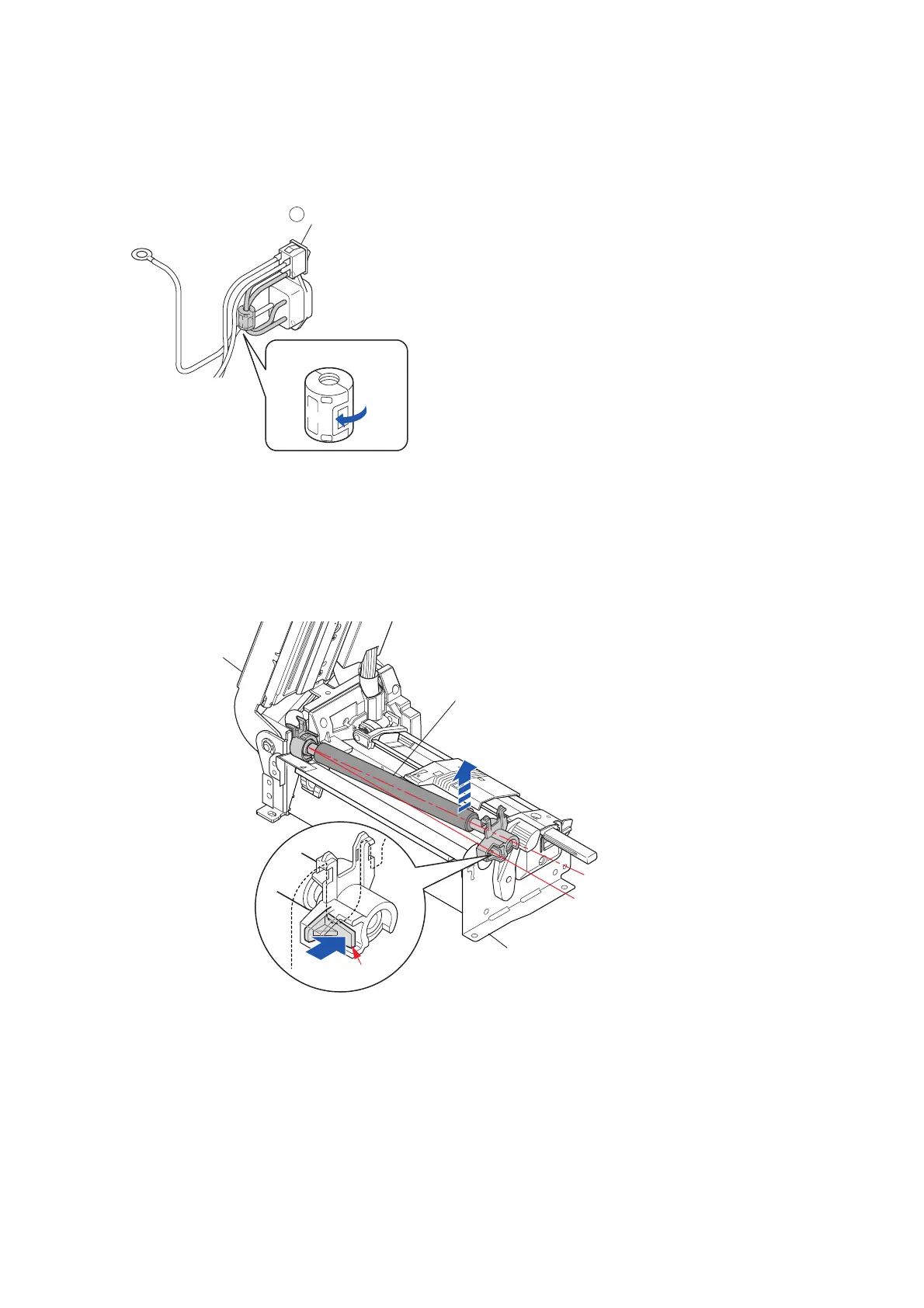

3-6-16. SA Platen
1. Open the Head Block.
2. While pressing the part “A” of the “SA Platen”, raise its right end by about the indicated
degrees.
3. Remove the “SA Platen” by lifting it upwardly.
Head Block
SA Platen
Unit Mechanism
A
Ferrite Core
SA Power SW Cable
