Citizen CL-E700 Series

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
3-15 CL-E700 series

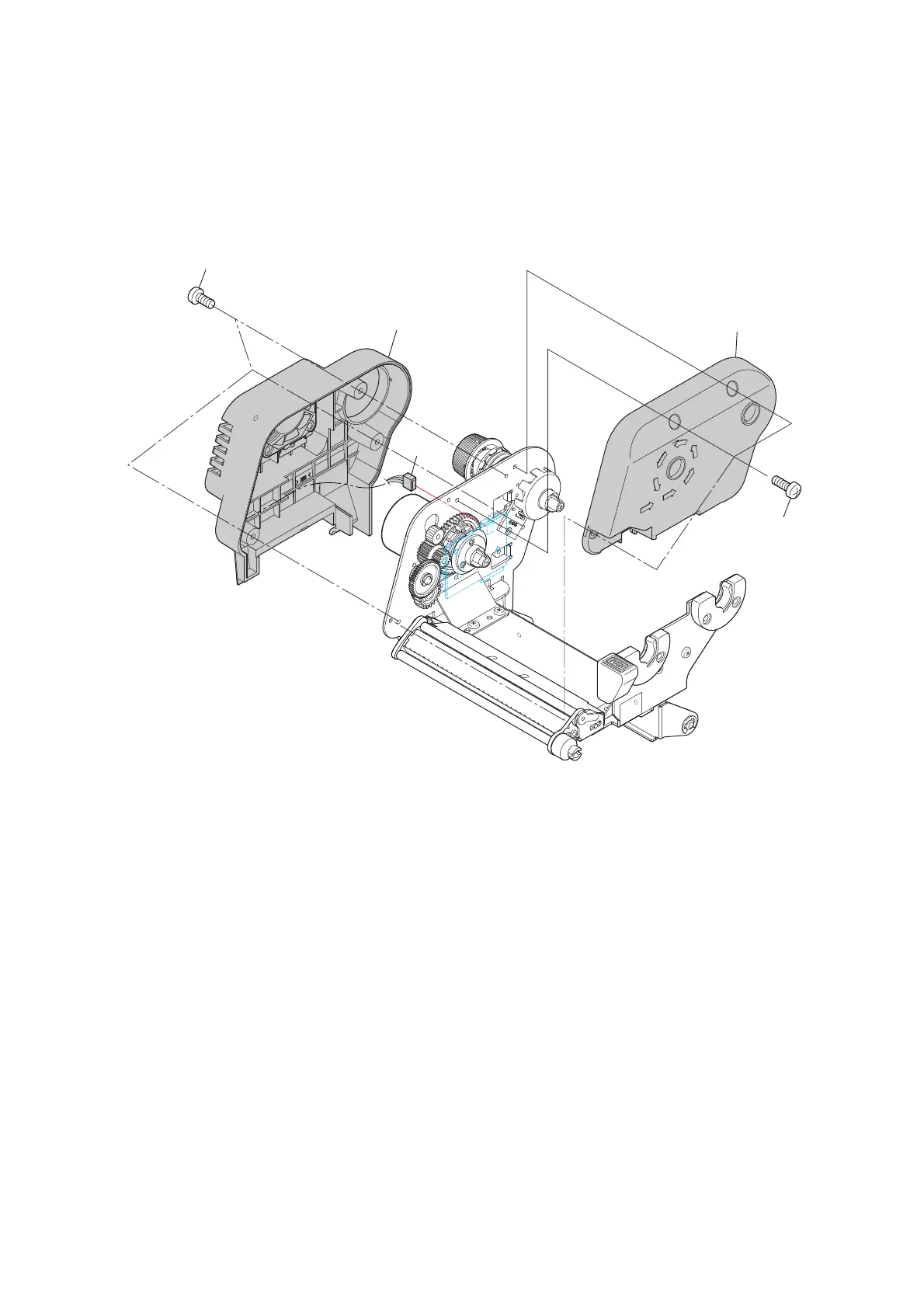

3-6-3. “Unit Ribbon” Covers
1. Remove the 3 screws (BH M3.0x4 (NI)) and detach the “Cover Ribbon Gear” to the right.
2. Remove the 3 screws (BH M3.0x4 (NI)) and detach the “SA2 Ribbon Unit Fan” to the left.
3. Disconnect the connector J604 from the main body.
Note on reassembling:
• When mounting the “SA2 Ribbon Unit Fan”, pay attention so as not to pinch the cable of
J604.
BH M3.0x4 (NI)
Cover Ribbon Gear
SA2 Ribbon Unit Fan
BH M3.0x4 (NI)
J604
