Citizen CL-E700 Series Technical Manual

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
3-13 CL-E700 series
3-6-2. Unit Ribbon
When removing the “Unit Ribbon”, do not loosen the “Forbidden Screws”.

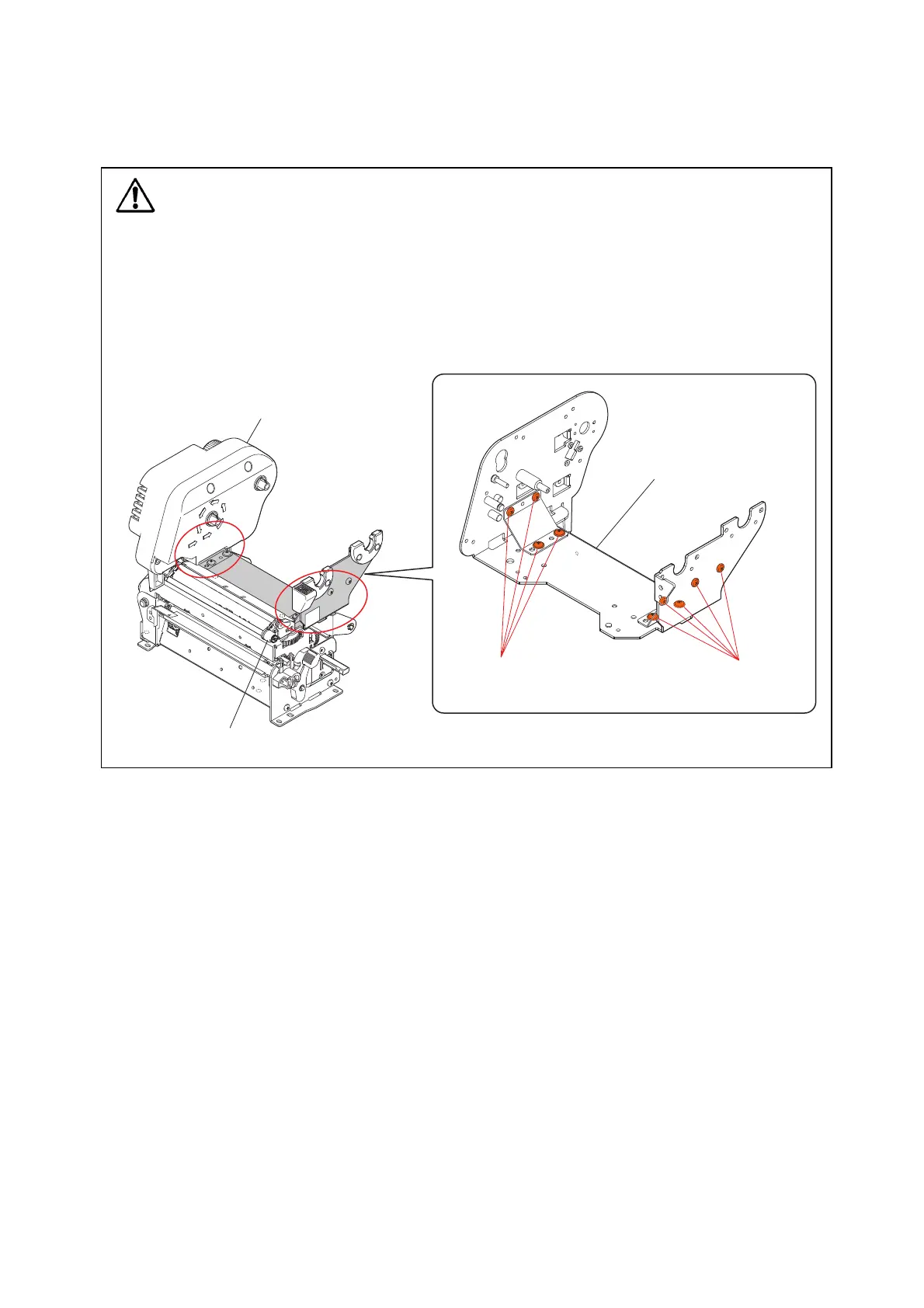

“Forbidden Screws” in the “Unit Ribbon”
DO NOT loosen the 9 “Forbidden Screws” of the “SA Ribbon Frame (with
Support)”.
The “SA Ribbon Frame (with Support)” consists of three parts and is
assembled with the 9 screws.
Once the “SA Ribbon Frame (with Support)” is disassembled, correct ribbon
running cannot be assured. Therefore, a ribbon wrinkle may not be removed
with the Ribbon Left-Right Balance Adjustment Knob, as expected.
DO NOT LOOSEN.
Forbidden 4 Screws
SA Ribbon Frame
(with Support)
Ribbon Left-Right Balance Adjustment Knob
Unit Ribbon
Forbidden 5 Screws
DO NOT LOOSEN.
