Citizen CL-E700 Series Technical Manual

Chapter 4 Troubleshooting
4-2. Troubleshooting
4-15 CL-E700 series

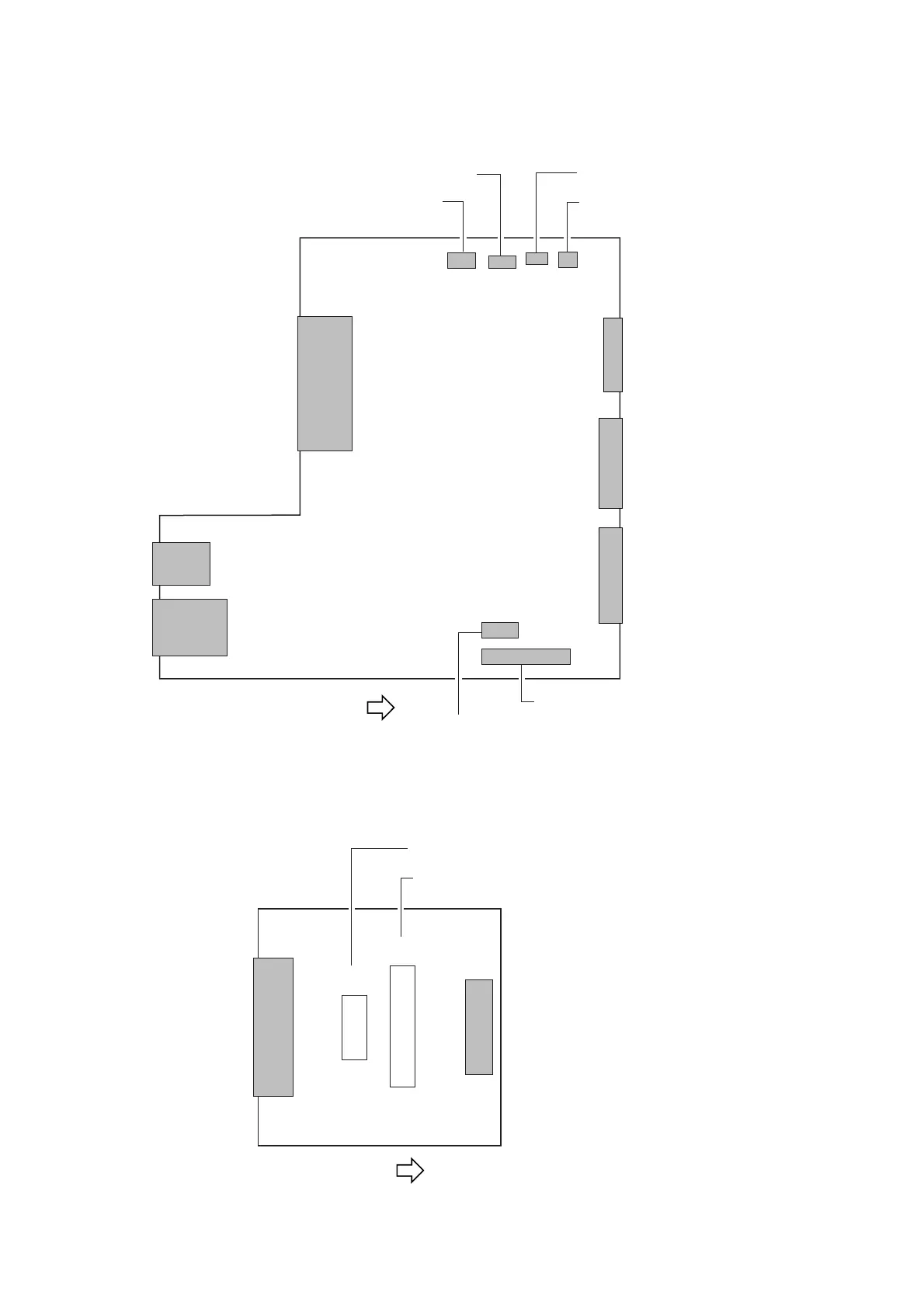

4-2-7. Connector Location
[SA Main PCB]
[SA Relay PCB]
USB2.0
J7
J4
J3
J8 J6
J5
J9
SA Main PCB
J14
To Interface Board
(Optional)
To Unit Power Supply
Front
To SA Opepane PCB
J10
J12
J13
J2
To SA TRA Sen PCBTo SA Ref Sensor PCB
To SA Relay PCB
To SA Head
To thermistor of "SA PF Motor"
To SA PF Motor
Ethernet
To SA Head Up Sensor PCB
J301
SA Relay PCB
To SA Main PCB
Front
To Peeler (Optional)
J303
J302
J304
To SA Ribbon Control PCB
To Cutter (Optional)
