Citizen CL-E700 Series

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
3-29 CL-E700 series

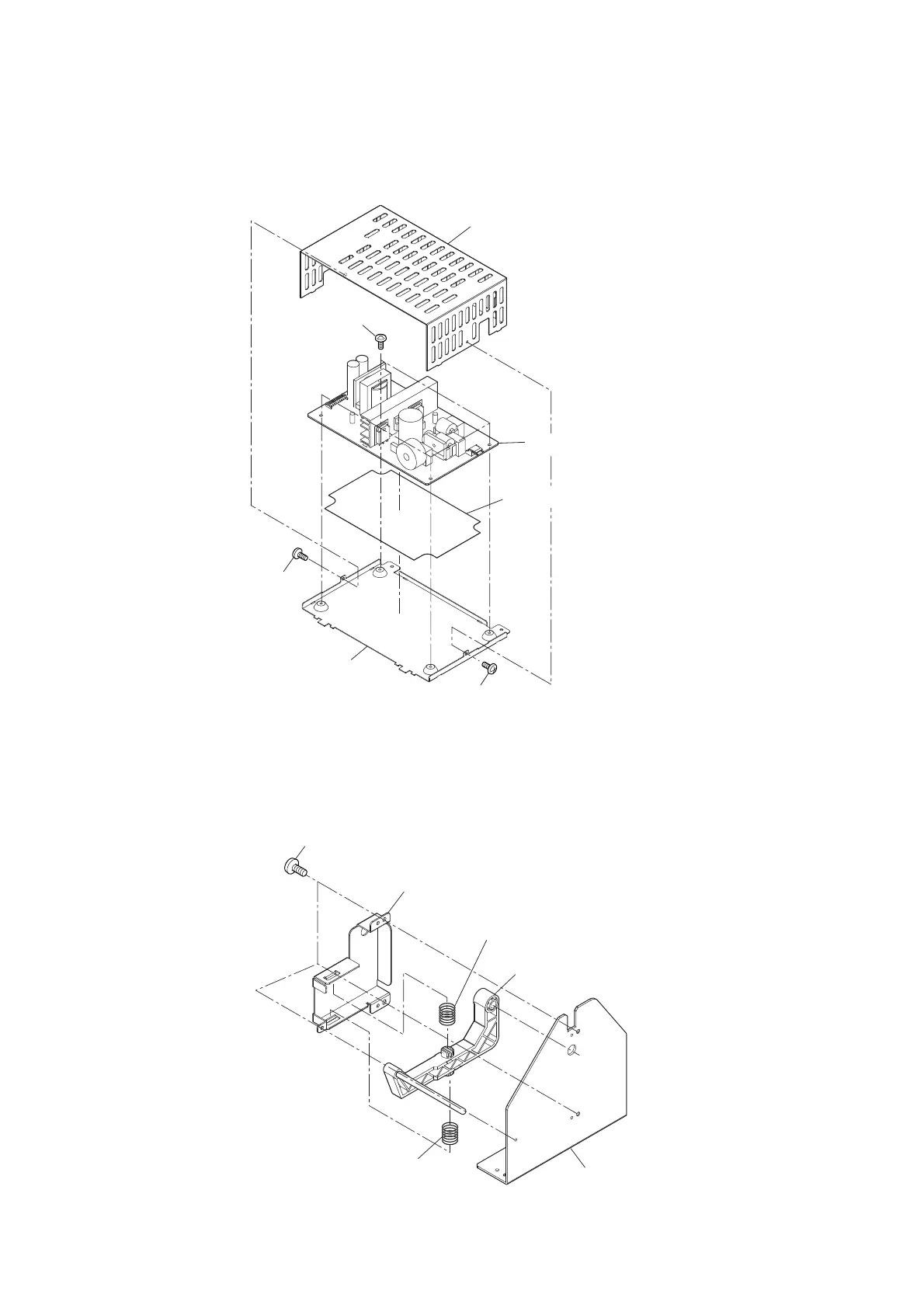

(2) Unit Power Supply
1. Remove the 2 screws (B
H M3.0x4 (NI)) and detach the “Cover Power PCB”.
2. Remove the 4 screws (PH (SW+PW) M3x5) and detach the “Unit Power Supply”.
3. Remove the “Sheet Insulation Power PCB” from the “Plate Power PCB”.
(3)
Plate Holder Paper L
1.
Remove the 3 screws (B
H M3.0x4 (NI)) and detach the “Cover Lever”.
2. Remove the “SA Damper Shaft” and “Spring Damper” (2 pcs.) from the “Plate Holder
Paper L”.
Plate Holder Paper L
SA Damper Shaft
Cover Lever
Spring Damper
Spring Damper
BH M3.0x4 (NI)
Cover Power PCB
Plate Power PCB
Sheet Insulation Power PCB
PH (SW+PW) M3x5
Unit Power Supply
BH M3.0x4 (NI)
BH M3.0x4 (NI)
