Citizen CL-E700 Series Technical Manual

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-48

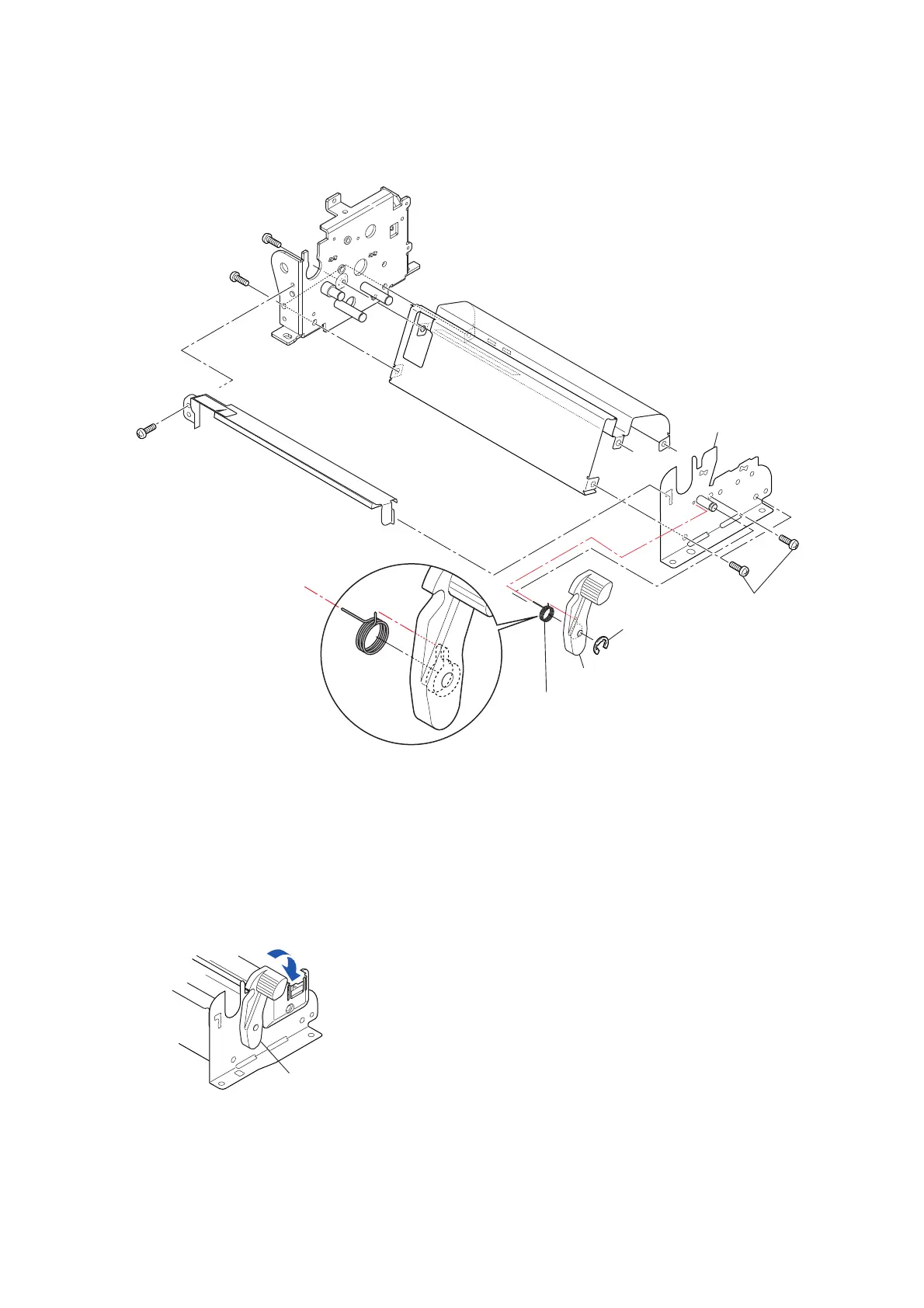

(2) “Lever Head Lock” and “SA Main Plate R”
1. Remove the 3 screws (B
H M3.0x4 (NI)) and detach the “SA Main Plate R”.
2. Disengage the 1 E-ring (E-Ring 2.5), and remove the “Lever Head Lock” and “Spring
Head Lock” from the “SA Main Plate R”.
Note on reassembling:
• When mounting the “Lever Head Lock”, hook the “Spring Head Lock” as shown in the
magnified view on the above figure. Hook one end of the “Spring Head Lock” on the
groove of the “Lever Head Lock”, and insert the other end into the hole in the “SA Main
Plate R”.
Also, mount the “Lever Head Lock” on the “SA Main Plate R” as shown below. Then, be
sure that the lever moves smoothly.
Lever Head Lock
E-Ring 2.5
Lever Head Lock
Spring Head Lock
BH M3.0x4 (NI)
SA Main Plate R
