Citizen CL-E700 Series Technical Manual

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-18
(2) Ribbon Gears
1. Disengage the 1 E-ring (E-Ring 4.0) and remove
the “Gear 2 Ribbon”, “Gear 1 Ribbon”,
“Gear 3 Ribbon” and “Gear 4 Ribbon” in that order.
2. Remove the 1 screw (No0 PH (4-0.3) M2x5(NI)) and remove the “Plate Ribbon
Washer”, “SA Holder R Shaft”, “Spring Ribbon Return” and “Gear 5F Ribbon” in that
order.
Notes on reassembling:

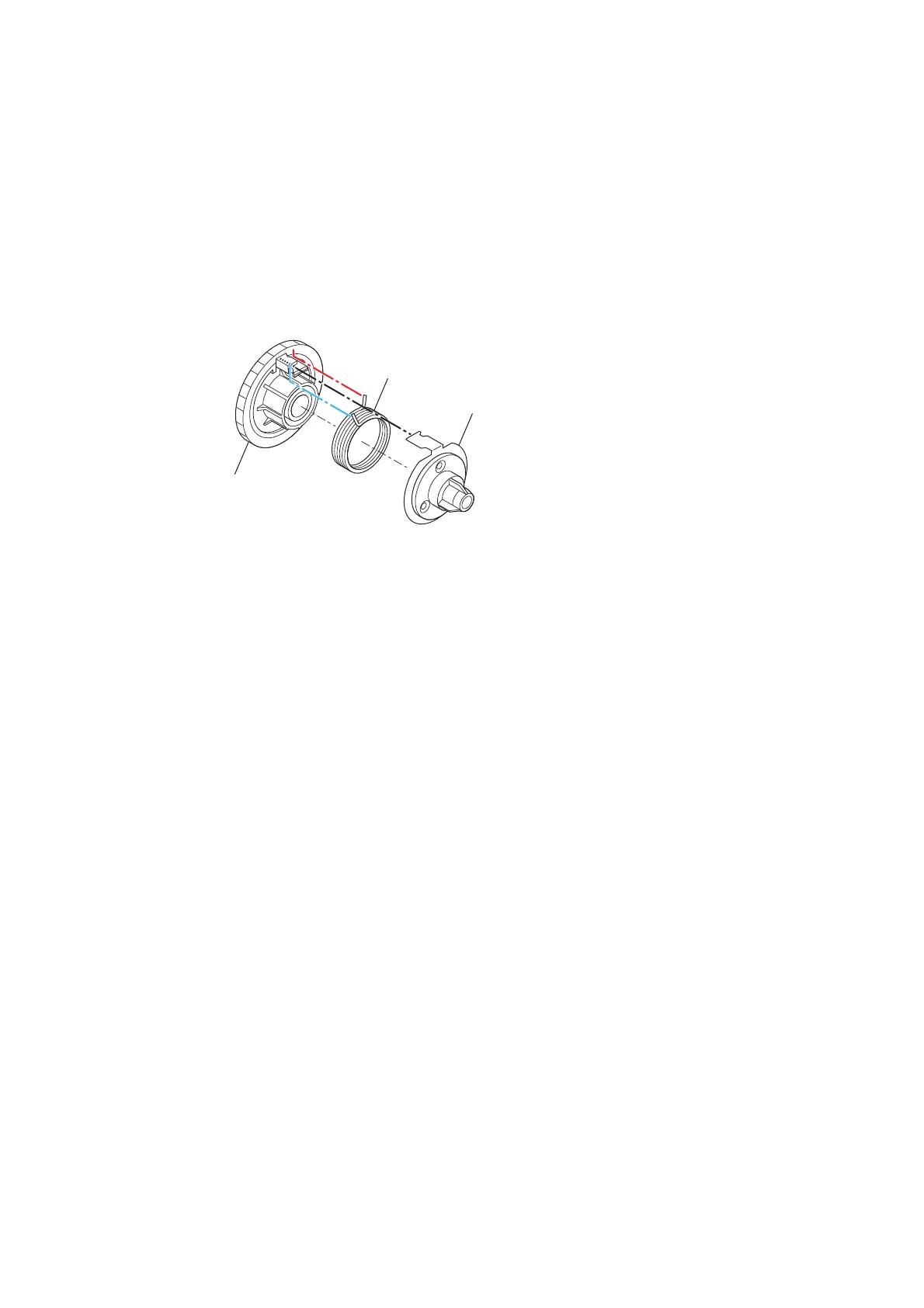

• Assemble the “SA Holder R Shaft”, “Spring Ribbon Return” and “Gear 5F Ribbon” as
shown below.
• Apply FLOIL G-474C to the gears and the shafts marked with “
”. Refer to the figure on
the previous page.
Gear 5F Ribbon
SA Holder R Shaft
Spring Ribbon Return
