Citizen CL-E700 Series Technical Manual

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-44
3-6-20. SA PF Motor
1. Remove the “Unit Ribbon”. Refer to “3-6-2 Unit Ribbon”.
2. Remove the “Unit Opepane”. Refer to “3-6-10(1) Unit Opepane”.
3. Remove the “Case” and “Cover S
teel L”. Refer to “3-6-11 Case”.
4. Remove all connectors f
rom the “SA Main PCB”. Refer to “3-6-12(1) “SA Main PCB”
Connectors”.
5. Remo
ve the “Unit Mechanism”. Refer to “3-6-13 Unit Mechanism”.
Tips
: The “SA PF Motor (with Thermistor)” can be removed without detaching the “Unit
Mechanism”.

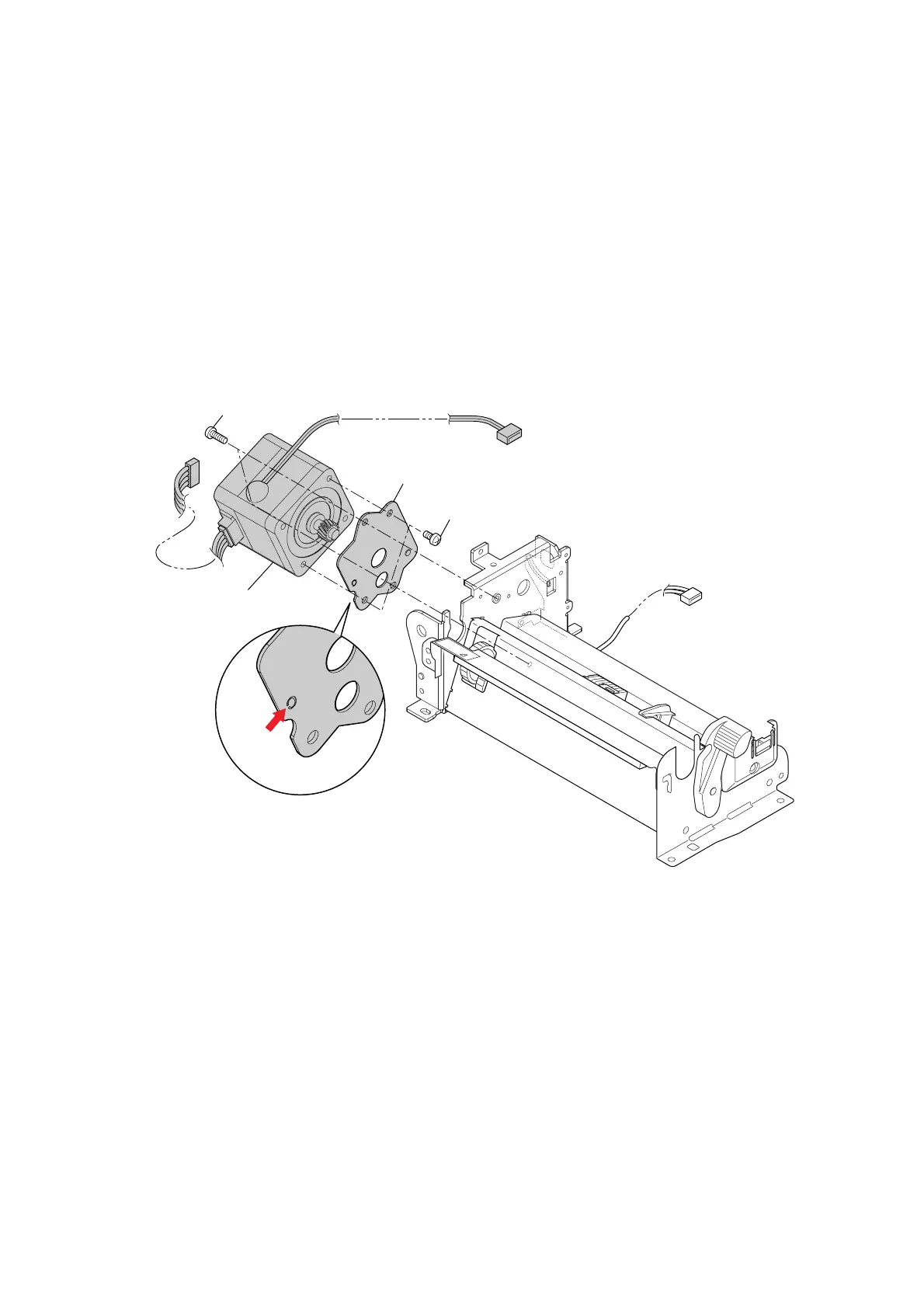

6. Remove the 2 screws (BH M3.0x4 (NI)) and detach the PF Motor Block.
7. Remove the 2 screws (BH M3.0x4 (NI)) and detach the “Plate Motor Bracket” from the “SA
PF Motor (with Thermistor)”.
Notes on reassembling:
• Referring to the above magnified view, mount the “Plate Motor Bracket” on the “SA PF Motor
(with Thermistor)” so that its letter “C” is located on the connector side of the “SA PF Motor
(with Thermistor)”.
• Mount the “SA PF Motor (with Thermistor)” on the frame so that its connector faces the front.
BH M3.0x4 (NI)
BH M3.0x4 (NI)
Plate Motor Bracket
SA PF Motor (with Thermistor)
Letter
"C"
J602
J603
