Citizen CL-E700 Series

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-30

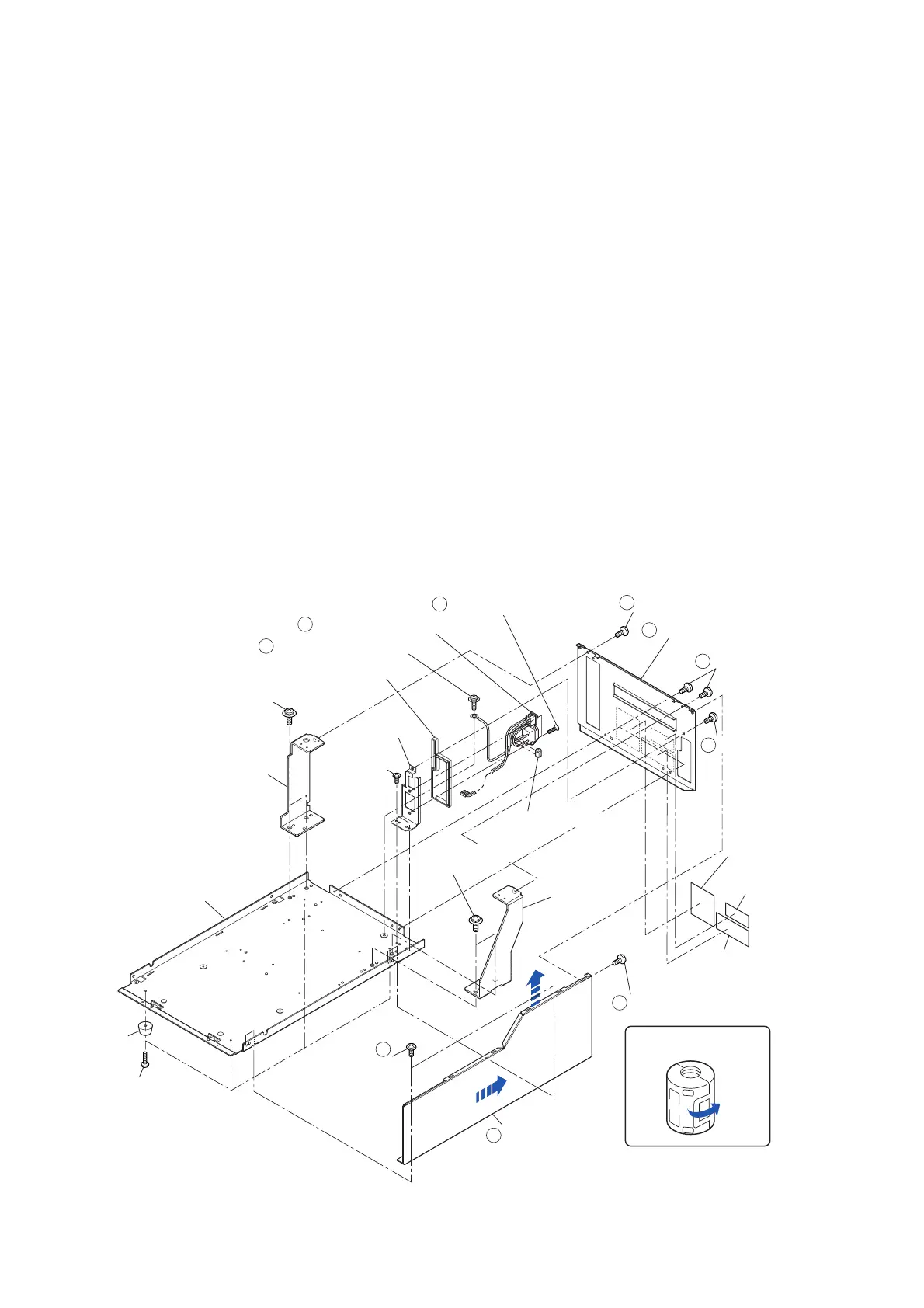

3-6-15. “SA Power SW Cable” and “Frame Bottom”
1. Remove the “Unit Ribbon”. Refer to “3-6-2 Unit Ribbon”.
2. Remove the “Unit Opepane”. Refer to “3-6-10(1) Unit Opepane”.
3. Remove the “Case” and “Cover S
teel L”. Refer to “3-6-11 Case”.
4. Remove all connectors f
rom the “SA Main PCB”. Refer to “3-6-12(1) “SA Main PCB”
Connectors”.
5. Remo
ve the “Unit Mechanism”. Refer to “3-6-13 Unit Mechanism”.
6. Remove the “Unit Power Supply” Block and “Pap
er Holder” Block. Refer to “3-6-14(1) “Unit
Power Supply” Block and “Paper Holder” Block”.
7.
Remove the 1 screw (BH M3.0x5K) () and 2 screws (BH M3.0x4 (NI)) (), and detach the
“Cover Steel R” ().
8. Remove the 5 screw (BH M3.0x5K) (), detach the “Cover Steel Rear” (), and peel off the
labels (“Label FCC ICES VCCI-A”, Label Caution and Label Rating) from it.
9. Remove the 1 screw (PH (SW+PW) M4x6) () and 2 screws (NO2 FH M3.0x6 (NI)) (), and
detach the “SA Power SW Cable” () and “Cover Plate Inlet”. Then, by releasing the hook,
remove the “Ferrite Core” from the “SA Power SW Cable” (). (Refer to the magnified view.)
10. Remove the 2 screw (BH M3.0x4 (NI)) and detach the “Plate Inlet”.
11. Remove the 2 screw (PH (SW+PW) M4x6) and detach the “Plate Hinge R”.
12. Remove the 2 screw (PH (SW+PW) M4x6) and detach the “Plate Hinge L”.
13. Remove the 4 screw (BH M3.0x8) and detach the “Leg” (4 pcs.).
PH (SW+PW) M4x6
BH M3.0x4
(NI)
Plate Inlet
Cover Plate Inlet
PH (SW+PW) M4x6
SA Power SW Cable
BH M3.0x5K
BH M3.0x4 (NI)
BH M3.0x5K
Cover Steel R
Label Caution
Cover Steel Rear
Leg
BH M3.0x8
Frame Bottom
Plate Hinge L
NO2 FH M3.0x6 (NI)
1
3
4
5
6
BH M3.0x5K
4
BH M3.0x5K
4
7
8
2
PH (SW+PW)
M4x6
Label Rating
Label FCC
ICES VCCI-A
Ferrite Core
Plate Hinge R
Ferrite Core
