Citizen CL-E700 Series Technical Manual

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-36

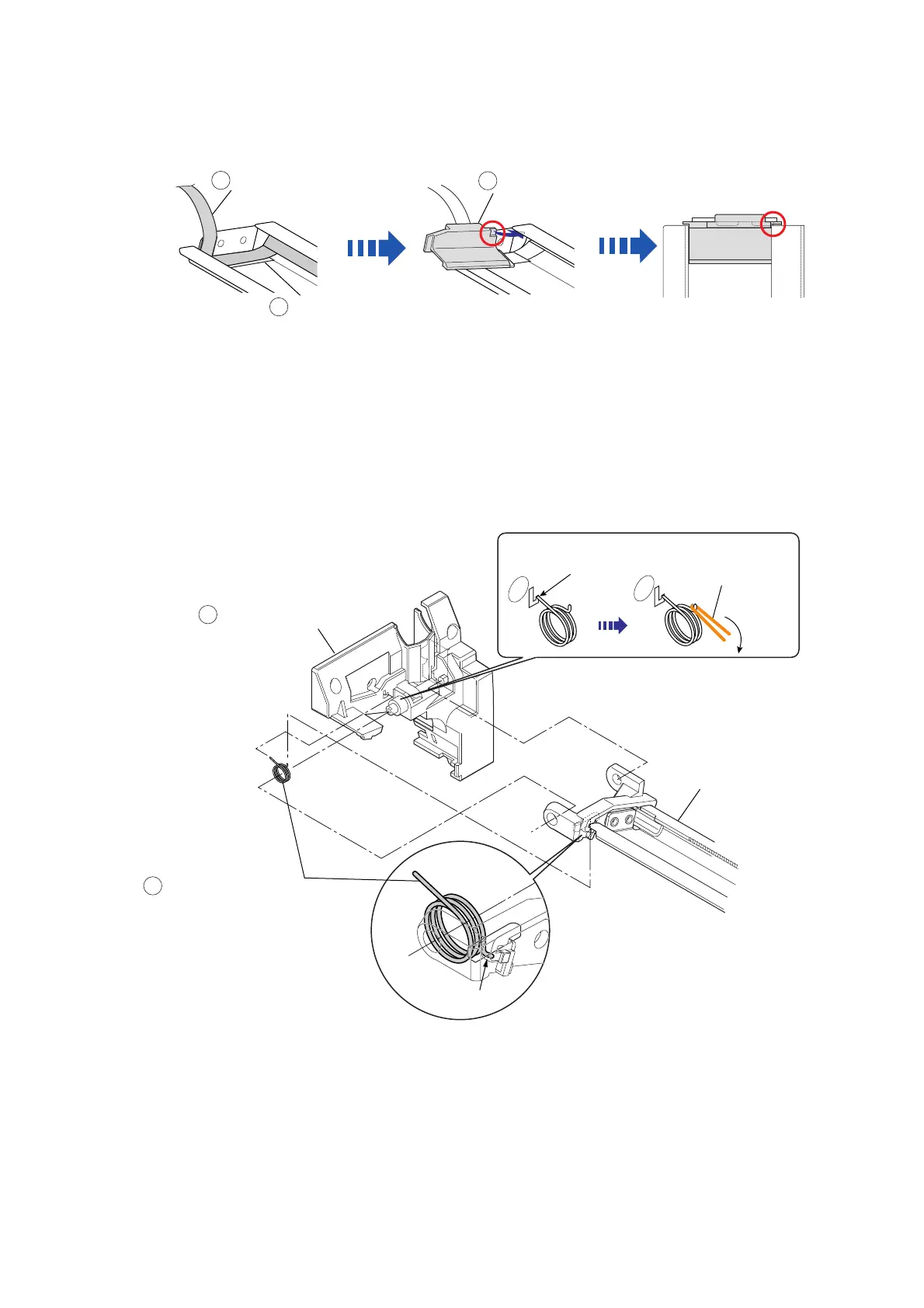

• Securely seat the “Cap Sensor Cable U” () in place as shown below. At this time,
engage its notched corner with the chassis.
• When mounting the “Holder Sensor U” Block on the “Cover Head Wire” (), engage the
spring “Spring Sensor Frame” () as follows.
1) Insert the long end of the spring into the shorter slit in the “Cover Head Wire” ().
2) Hook a cable wire or similar on the short end of the spring, and pull it to lower the
short end of the spring.
3) While pulling the cable wire, mount the “Holder Sensor U” Block on the “Cover Head
Wire” (), and then hook the short end of the spring on the part “C” of the “Holder
Sensor U” Block.
FFC TRA Sensor
Cap Sensor Cable U
Tape Sensor Cable U
15
10
6
Spring Sensor Frame
"Holder Sensor U" Block
Fixing the "Spring Sensor Frame"
(Shorter slit)
Cable wire for pulling
C
Cover Head Wire
2
3
