3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-38

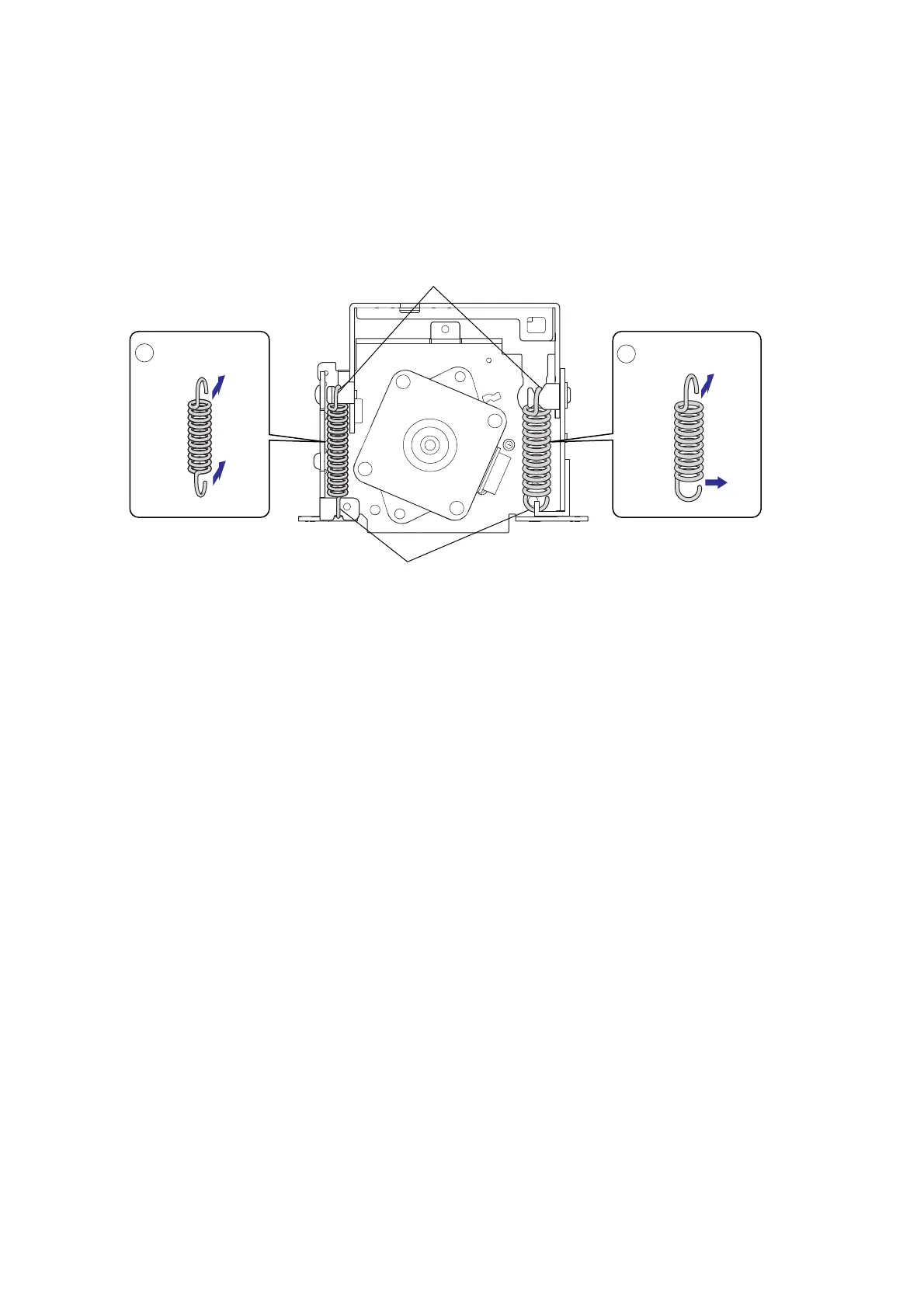

• When engaging the “Spring Head Up” (, thin) and “Spring2 Head Up” (, thick), first, hook
them on the upper hooks of the “Unit Head” (), and next on the lower hooks of the “Unit
PF” ()).
At this time, hook the “Spring Head Up” () so that its hook parts direct inward of the
mechanism as shown below. (This can prevent unwanted noise that might occur when the
“Unit Head” () is opened or closed.)
Hook the “Spring2 Head Up” () so that its hook parts direct as shown below.
Spring Head Up
Thin
Spring2 Head Up
Thick
Hook parts
Hook parts
