Citizen CL-E700 Series Technical Manual

Chapter 3 Disassembly and Maintenance
3-6. Disassembly, Reassembly and Lubrication
CL-E700 series 3-40

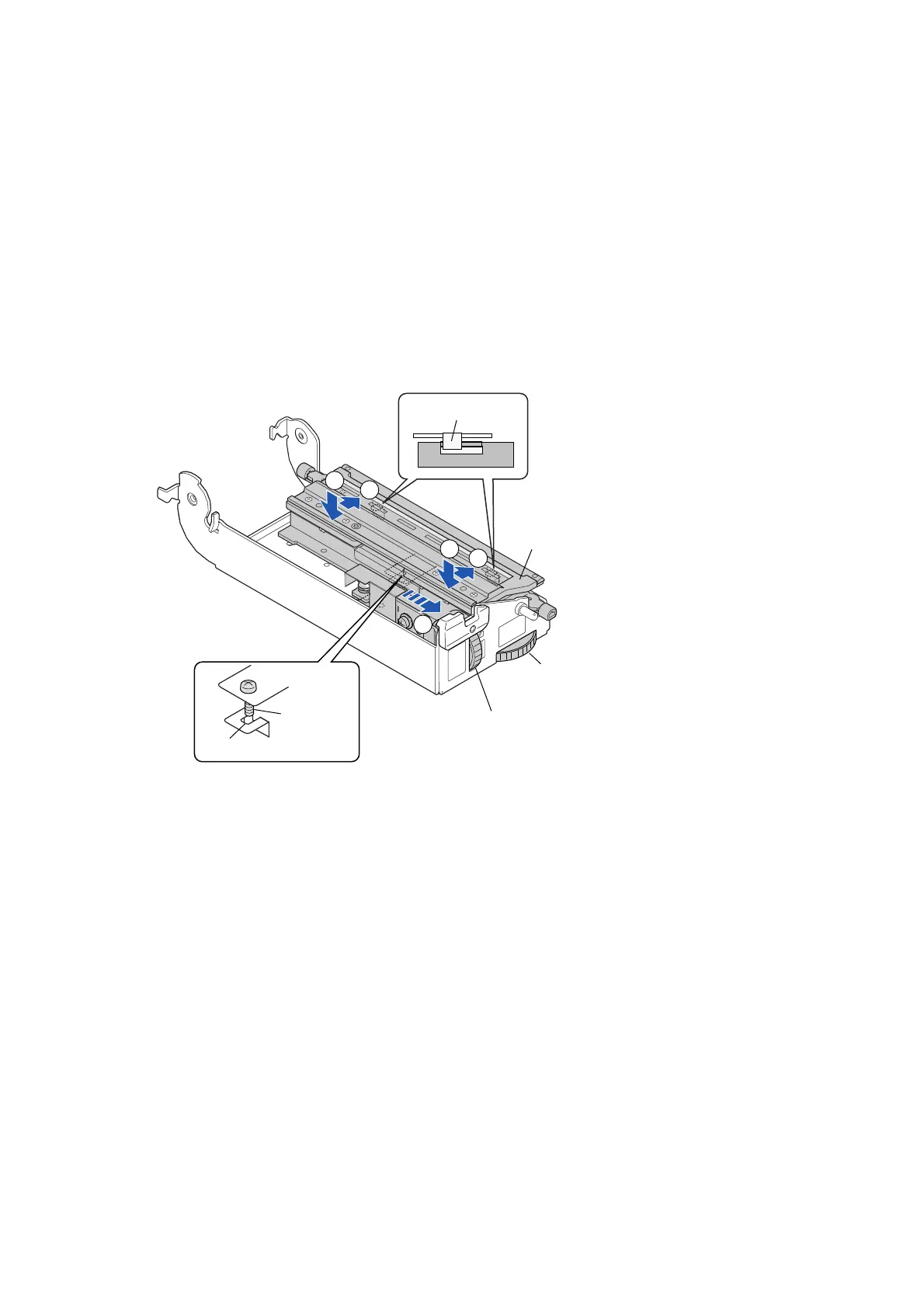

Note on reassembling:
When mounting the “SA Head”, follow the next procedure.
1. Set the dials as follows.
Media width adjustment dial: “0” (for easier mounting)
Media thickness adjustment dial: “9”
2. Put the entire “SA Head” Block in the frame and move it to the direction “”.
At this time, be sure that the screw “A” is inserted into the slit “B”. (If it is not correctly
inserted, the “SA Head” Block cannot be assembled on the frame.)
3. While lightly pressing down the “SA Head” Block (), move it toward the rear () and
hook its rear ends on the 2 claws “C” of the frame.
4. After mounting the “SA Head” Block, set the Media width adjustment dial to “5” to give
tension to the “SA Head” Block.
Claw C
Screw A
Slit B
1
2
2
3
3
"SA Head" Block
(Media Width Adjustment Dial)
(Media Thickness Adjusment Dial)
"0"
"9" to "5"
