Citizen CL-E700 Series - Page 235

Appendices
A. Mounting Diagrams
CL-E700 series AP-6

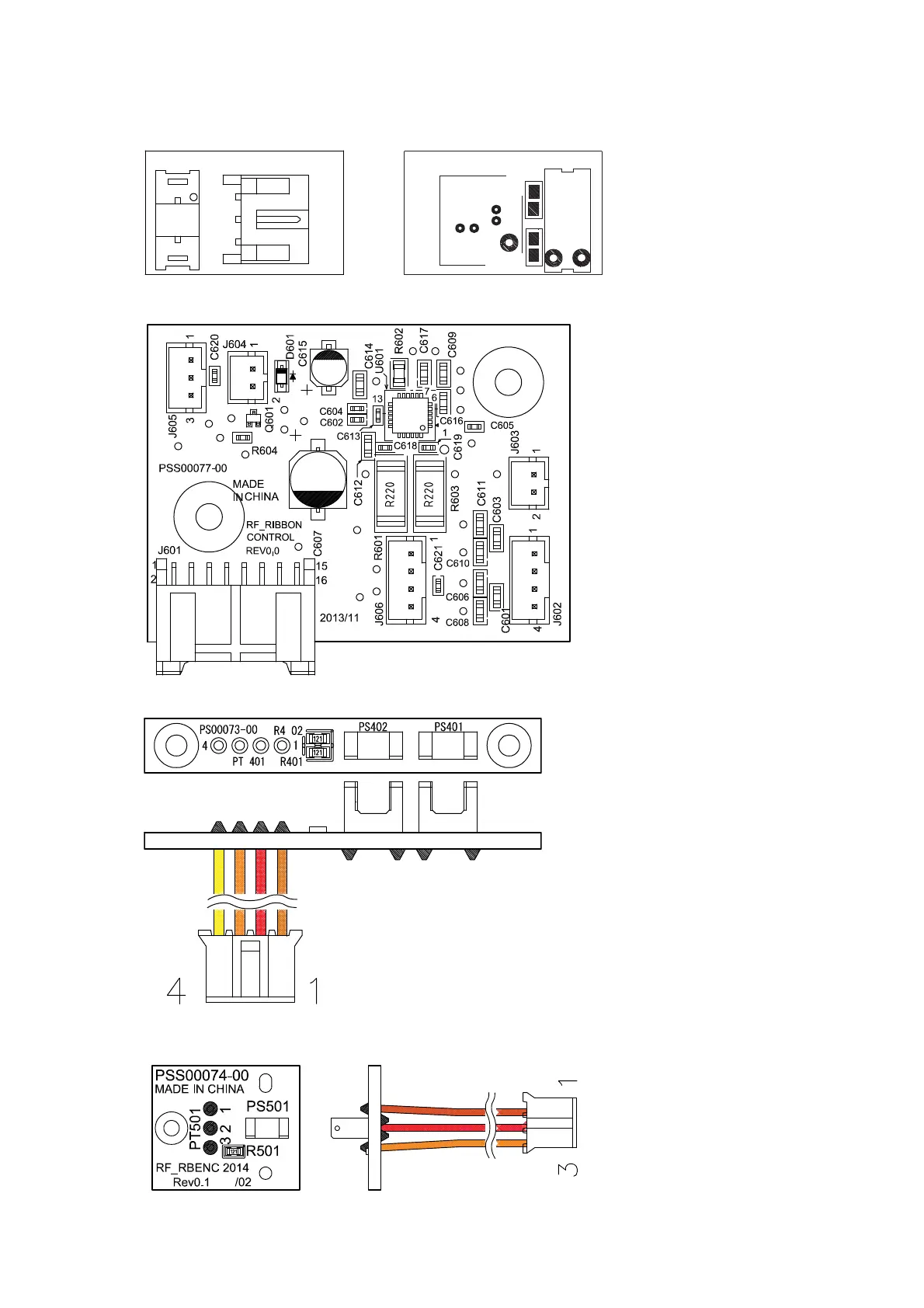

A-6. SA Head Up Sensor PCB
(1) Parts side (2) Solder side
A-7. SA Ribbon Control PCB
A-8. SA Ribbon Sensor
A-9. SA Ribbon Encoder
1
2
3
4
1
3
CN201
PI201
C202
C201
