Setup procedures (part 2)
6-10
9390 Reference manual
Action
Notes

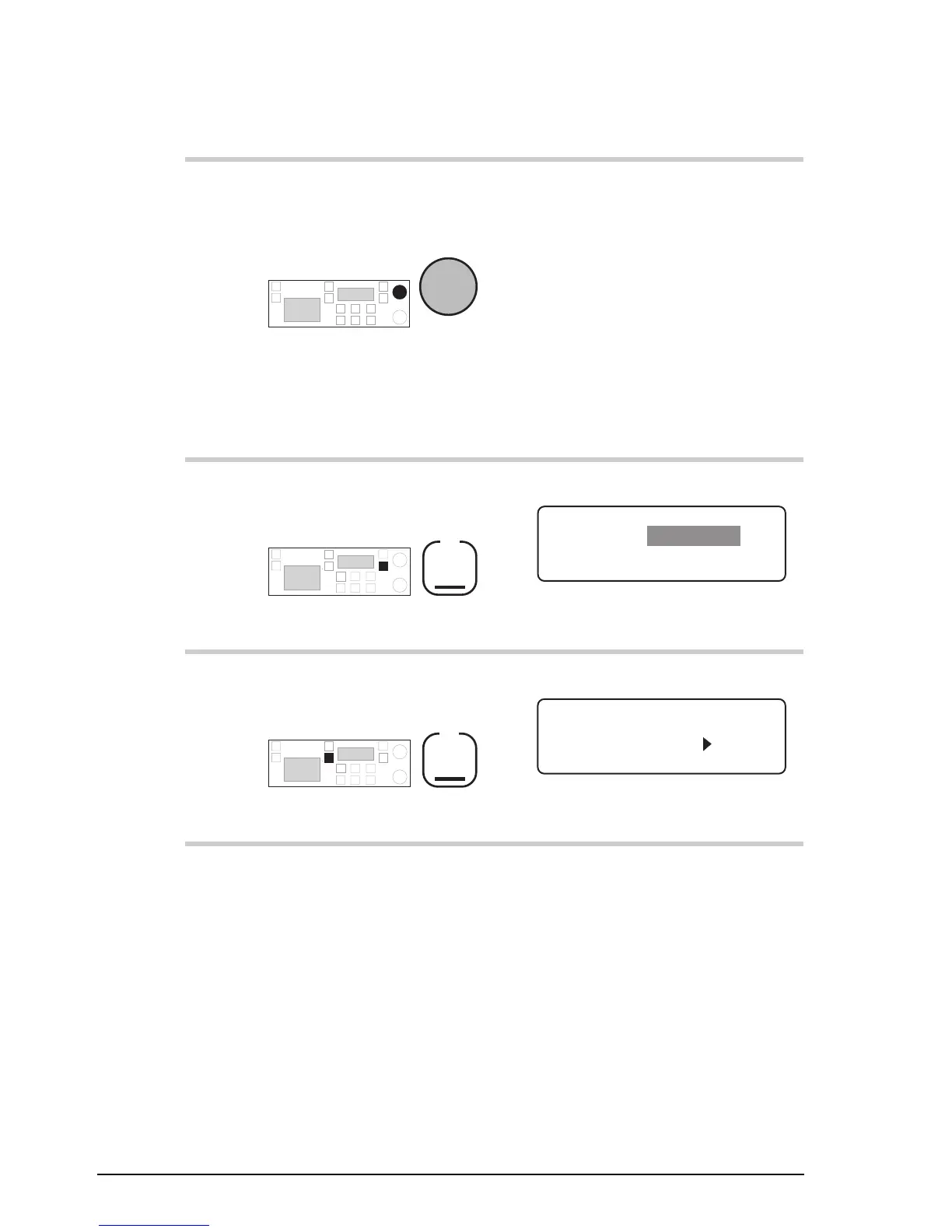

3.
To switch between
‘
ENABLED
’ and
‘
DISABLED
’, rotate
Select
Select:
•
‘
ENABLED
’ if you want to
be able to tune the
transceiver to any receive
frequency
•
‘
DISABLED
’ if you only
want to tune the transceiver
to set channel receive
frequencies.
4.
To save your change,
press
F2
The display shows:
EXIT
CONFIG MENU
1–PowerUp
ENTER
3–RF Gain
3/3
4–More
2–Receiver
5.
To return to Channel
mode, press twice
F1
Example of the display:
USB
HI
RF–ON
Rx.
422
Radphone
Pwr
4,128
4,420
111
113
