Installation
2-2 9390 Reference manual
Type of station
You can operate the transceiver from more than one place if
you attach control heads to your system. Control heads have
the same control panel as the transceiver. The smaller depth
of the control head allows you to mount the unit where there
is insufficient space for the transceiver.
There are two types of station:
• coast station
• ship station.
Coast station
A fixed base coast station typically consists of an AC power
supply connected directly to the mains. DC output from the
power supply is connected to the transceiver which, in turn, is
connected to an antenna system.
AC power supply
Coaxial cable
Microphone
Earth point
Transceiver
On/Off
Select
Mode
Scan
S'Call
Mute
Voice
Mute
On/Off Mode
Tune
F2F1
Volume
9390 Marine Transceiver
CODAN
Test
2182
AM /SSB
Emgcy
Call
Broadband antenna
system
AC mains
XXXX Power Supply
CODAN

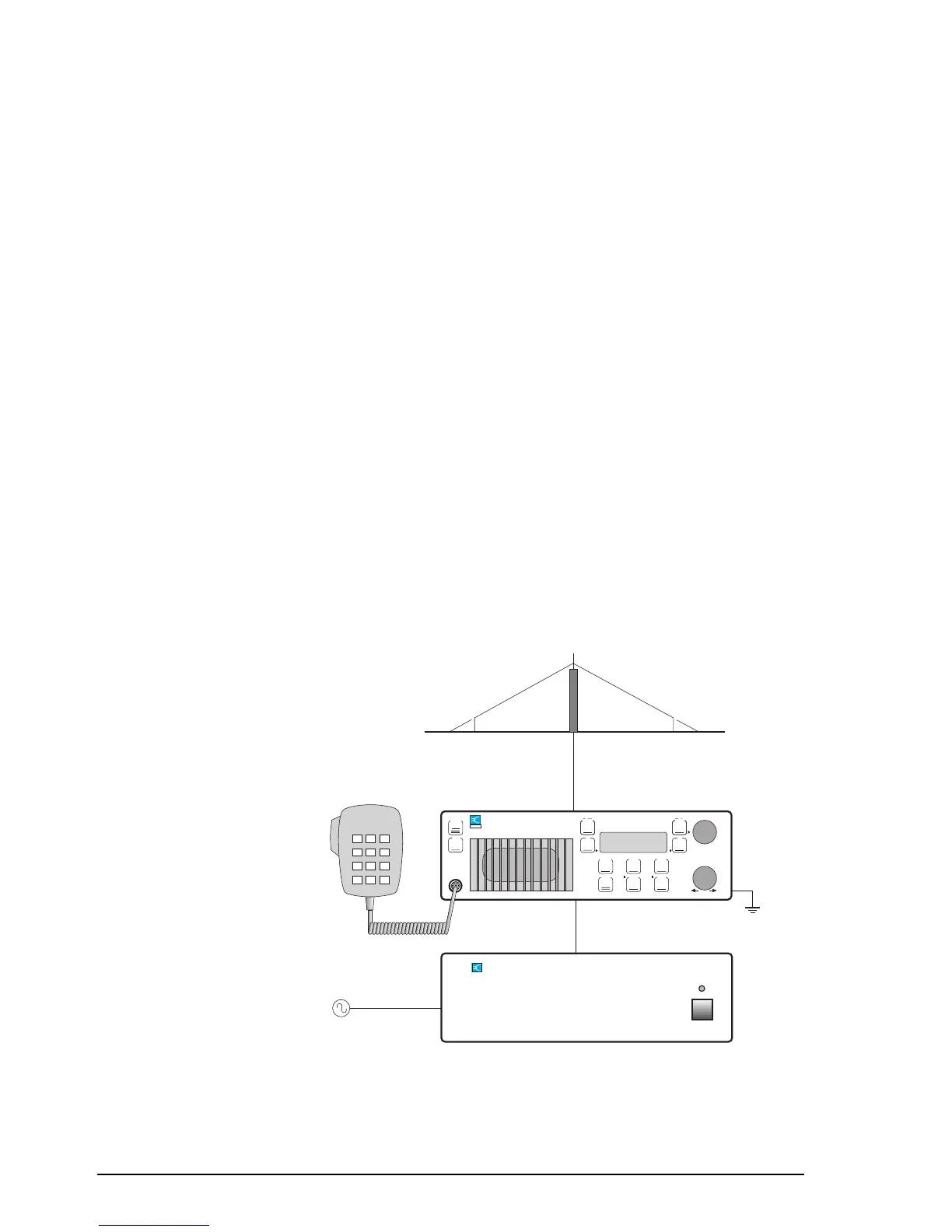

Figure 2.1
A typical coast station installation
