Installation
2-4 9390 Reference manual
For 400 watt high power systems using a 9390-H receiver-
exciter, an external PA unit is connected between the
receiver-exciter and the antenna tuning unit.
Microphone
9390-H receiver-exciter
On/Off
Select
Mode
Scan
S'Call
Mute
Voice
Mute
On/Off Mode
Tune
F2F1
Volume
9390 Marine Transceiver
CODAN
Test
2182
AM /SSB
Emgcy
Call
Whip or long
wire antenna
4203
antenna
tuner
400 watt
PA type
4404
+
24V
battery

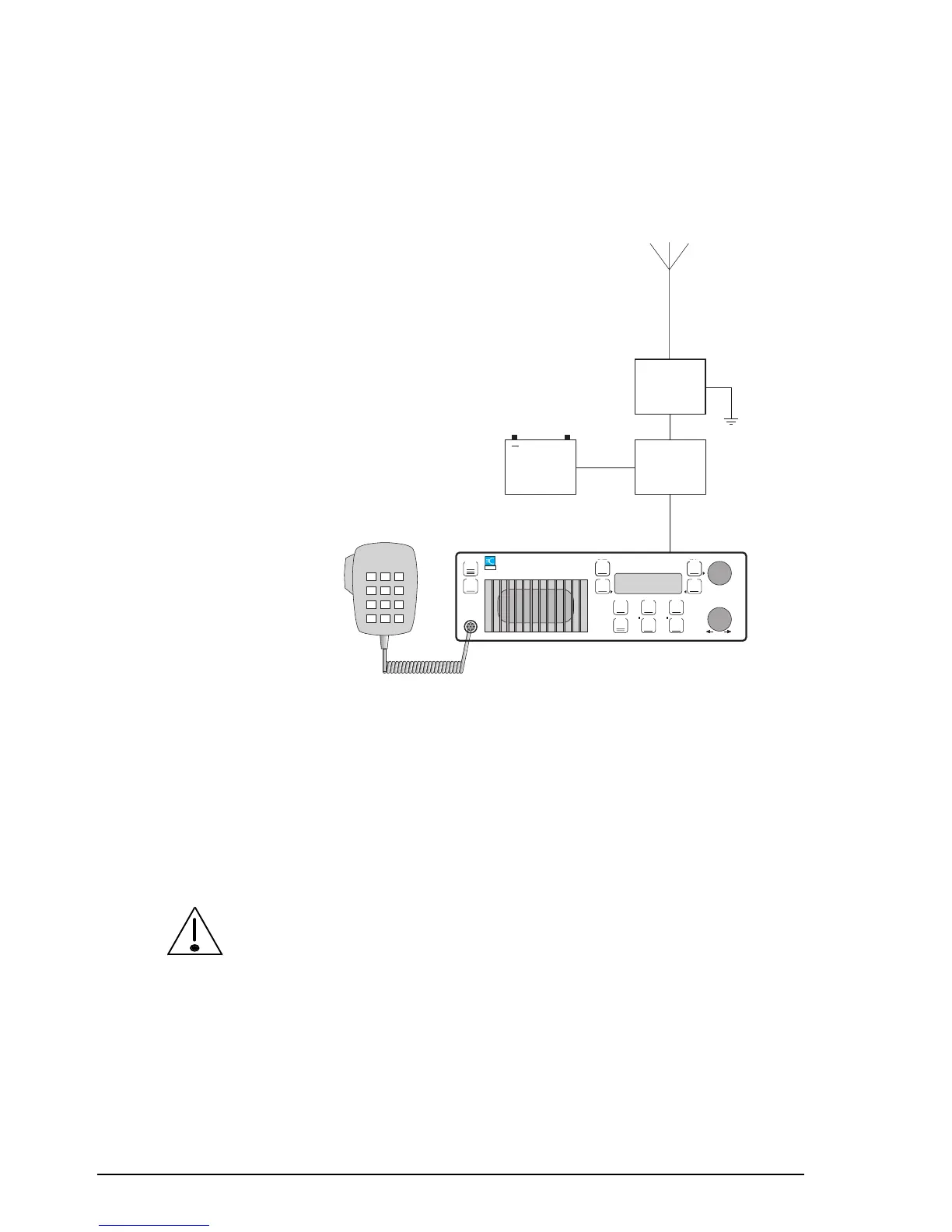

Figure 2.3
High power ship station installation (24 volt)
Where cables must pass through bulkheads with sharp edges,
the insulation of the cables should be protected by grommets.
Holes in the bulkhead need only be large enough to allow the
end of the cable with the smaller connector to pass through
(for example, the control cable between the control head and
the transceiver).
If the power and control cables are long and follow a common
path, keep the cables separated by at least 200mm. The cables
can be closer together for short distances, for example, to pass
through the same hole in the bulkhead.
Failure to observe this warning can cause distortion of the
transmitted audio signals.
