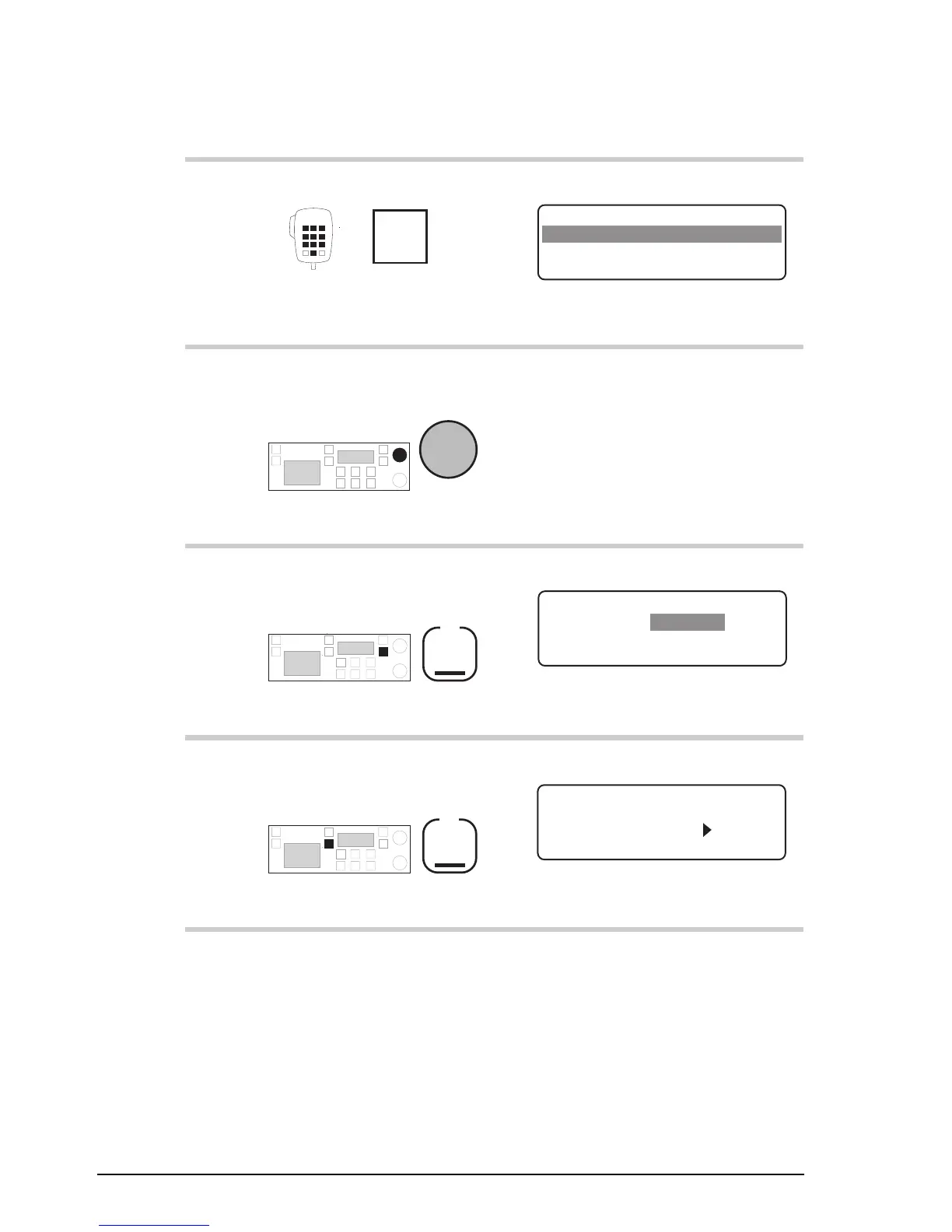

Setup procedures (part 3)
7-28
9390 Reference manual
Action
Notes
2.
Enter 3412
numeral
buttons
Example of the display:
300 Stop:1 Parity:N
EXIT
RS232 Setup
Baud rate
ENTER
3.
To select the baud rate,
rotate
Select
Select the same baud rate used
by the connected equipment in
the range 300–9600.
4.
To save your change,
press
F2
The display shows:
EXIT
CONFIG RS232 MENU
ENTER
1–Mode
2–Config
5.
To return to Channel
mode, press three times
F1
Example of the display:
USB
HI
RF–ON
Rx.
422
Radphone
Pwr
4,128
4,420
143
145
Table of Contents
Default Chapter
3
Table of Contents
3
1 About this Manual
9
Connect the Components that Make up Your Station
10
Standards and Icons
11
Glossary
12
Other Documents
14
2 Installation
16
Type of Station
16
Coast Station
16
Figure 2.1 a Typical Coast Station Installation
16
Ship Station
17
Figure 2.2 a Typical Ship Station Installation
17
Figure 2.3 High Power Ship Station Installation (24 Volt)
18
Installing the Transceiver
19
Mounting the Cradle, Gimbals and Transceiver
19
Installing the Control Head
21
Mounting the Cradle and Control Head
21
Connecting the Control Head
22
Figure 2.4 Rear View of Control Head Without Cover Plate
22
Power Supply
24
Mains Operated Supply
24
Battery Supply
24
DC Power Cable
24
Grounding-RF Earth
26
Ship Stations
26
Figure 2.5 General Grounding Requirements for Metal
26
Figure 2.6 General Grounding Requirements for Wooden or Fibreglass Hulled Vessels
27
Coast Stations
28
Figure 2.7 General Grounding Requirements for 9390-H
28
9390 Transceiver and Control Head Grounding
29
Ancillary Equipment
30
Antennas and Antenna Tuners
30
3 Channel and Scan Table Setup
31
Customising Channels
32
Channel Settings
32
Changing Channel Settings
33
Copying a Channel to a New Channel Number
34
Changing a Channel Comment
36
Changing Channel Options
38
Changing the Receive Frequency of a Channel
41
Creating a Receive-Only Channel
43
Creating a Receive-Only Channel in Free-Tune Receiver Mode
46
Deleting a Channel
49
Creating a Transmit Channel (Option)
51
Creating a Transmit Channel (Option, 3-21)
51
Creating a Scan Table
54
Deleting a Scan Table
59
Creating a Telephone Directory (Option)
61
4 Using Setup Mode
65
Using Setup Mode
66
List of Setup Mode Procedures
67
Advanced Users
71
Figure 4.1 the Setup Mode Tree
72
5 Setup Procedures (Part 1)
75
ALE Option Settings (Option)
76
Changing an ALE Option Setting
81
ALE Option Reset (Option)
83
ALE Sounding Interval (Option)
85
Beep Loudness
87
Call Preamble Length (Option)
89
Call Privacy On/Off (Option)
91
Clock Calibration
93
Clock Setting
95
Clone a Transceiver
100
6 Setup Procedures (Part 2)
104
Display Brightness
104
Display Contrast
106
Display Frequency
108
Free-Tune Receiver Mode Availability On/Off
111
GPS Display On/Off (Option)
113
GPS Timeout On/Off (Option)
115
7 Setup Procedures (Part 3)
117
Password Entry to Enable Transceiver Options
118
Enabling Transceiver Options
118
Deleting a PIN
122
Power up Message On/Off
124
Power up Mute Setting
127
Power up Selcall Self ID Display On/Off (Option)
130
Power up Selcall Self ID Display On/Off
130
PTT Release Beep On/Off
132
PTT Transmit Cutout
134
Recall Channels by Frequency On/Off
136
RF Gain On/Off
138
RS-232 Connected Equipment
140
RS-232 Connection Baud Rate
143
8 Setup Procedures (Part 4)
145
Scan Table Automatic Scanning Start
146
Scan Table Editing On/Off
148
Selcall ID Setup (Option)
150
Setting up a Selcall Group
151
Selcall ID Size Compatibility (Option)
157
Selcall Lockout On/Off (Option)
160
Selcall Mute Availability On/Off (Option)
163
Telcall Availability On/Off (Option)
165
Tone Call Setup
167
99-Beacon Call Response On/Off (Option)
170
9 Link Setup Mode
173
Link Setup Mode Enter/Exit
174
Figure 9.1 Moving the Link for Link Setup Mode
174
Antenna Band or Channel Control
177
PIN Setup
179
Setup Mode Availability On/Off
182
Transceiver Reset to Factory Settings
184
10 Display Messages
187
11 Appendix
199
Connectors
200
Microphone Socket
201
Antenna Control Connector
202
Remote Control Connector
203
GP Connector
204
RS-232 Socket
205
Loudspeaker Socket
205
External Alarm Socket
205
Connecting Ancillary Equipment
206
Using the Optional RS-232/I C Interface
208
Interface
208
Specifications
212
Transceiver Options
213
Accessories
214
Index
215
