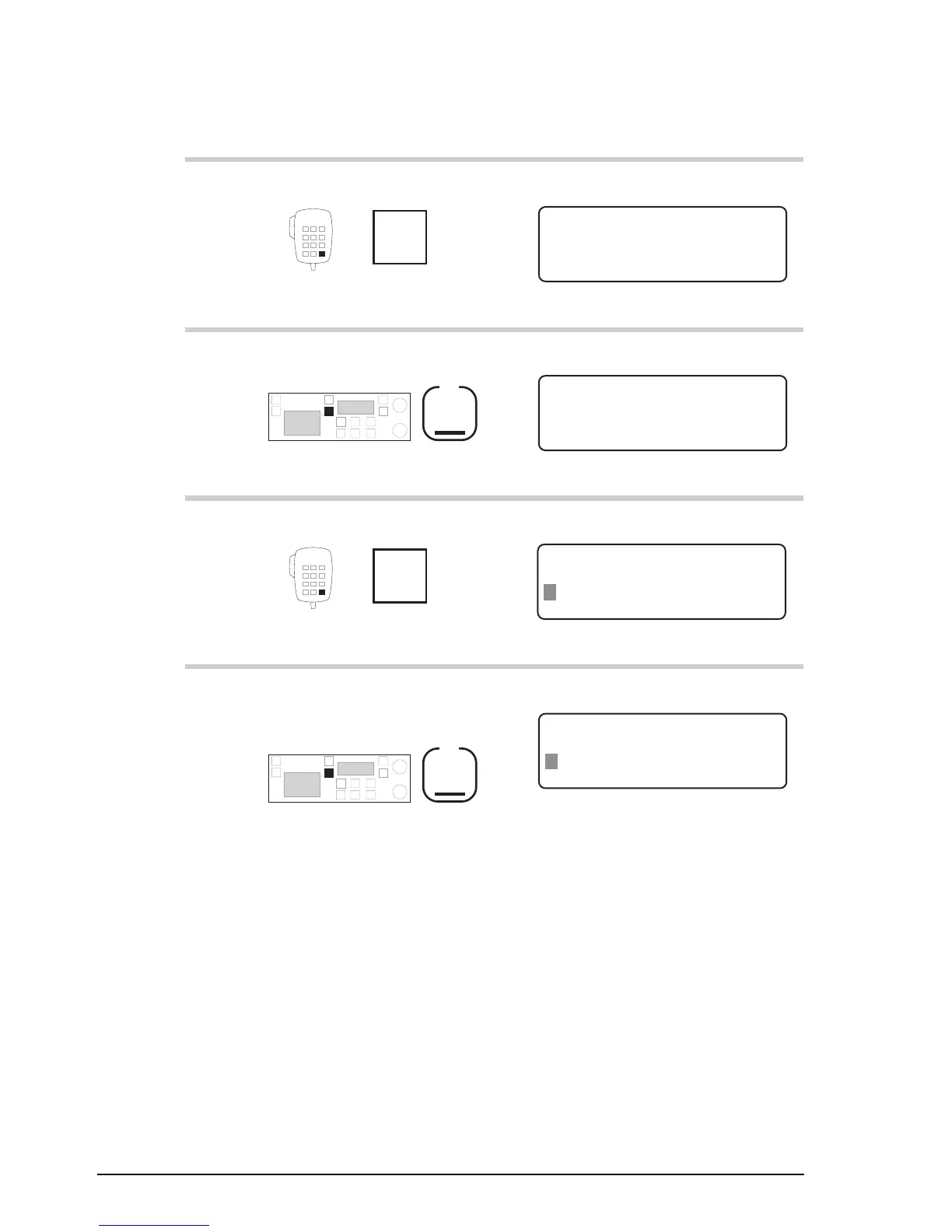

Channel and scan table setup
3-14
9390 Reference manual
Action
Notes
5.
Press
Enter
R'call
Example of the display:
INHIBIT
ENTER
Enter or Tx Inhibit
RX 8,731.00
TX 8,204.00
6.
Press
F1
Example of the display:
INHIBIT
ENTER
Enter or Tx Inhibit
RX 8,731.00
TX Inhibit
7.
Press twice
Enter
R'call
Example of the display:
CLEAR
ENTER
Enter channel text
R
adphone––––––––––––
8.
To clear any existing
channel comment, press
F1
Example of the display:
CLEAR
ENTER
Enter channel text
–
–––––––––––––––––––
43
45
