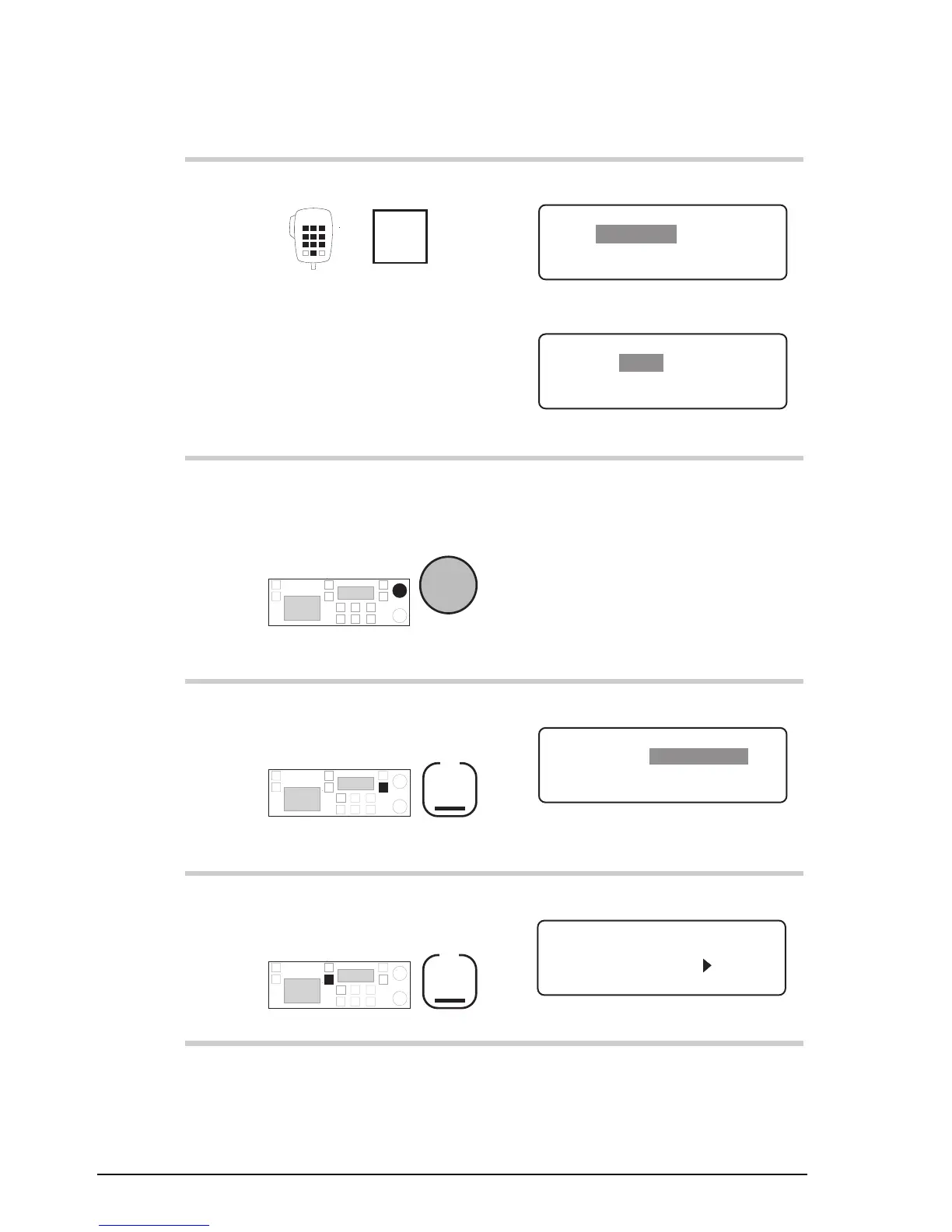

Setup procedures (part 1)
5-16
9390 Reference manual
Action
Notes
2.
Enter 242
numeral
buttons
The display shows:
EXIT
ENTER
SELCALL
Setup Call Preamble
Selcall preamble
or
EXIT
ENTER
ALE
Setup Call Preamble
ALE preamble
3.
To switch between
‘
SELCALL
’ and ‘
ALE
’,
rotate
Select
Select:
•
‘
SELCALL
’ if you are not
using an ALE controller
•
‘
ALE
’ if you are using an
ALE controller to send
calls.
4.
To save your change,
press
F2
The display shows:
EXIT
CALL
MENU
1–Beacon
2–Preamble
ENTER
3–ALE
4–More
2/3
5.
To return to Channel
mode, press twice
F1
Example of the display:
USB
HI
RF–ON
Rx.
422
Radphone
Pwr
4,128
4,420
89
91
