Changing the setup options
Error! Main Document Only.-2 9480 HF SSB transceiver
The front panel link
The front panel link is located on the front panel display printed
circuit board (PCB) assembly.
On front panel control transceivers, the PCB is located behind
the numeric buttons and display. The link is located on a row of
four horizontally mounted pins on the PCB (Figure 8.1).
On extended control transceivers, the PCB is located inside the
control head. The link is located on a row of four vertically
mounted pins on the PCB (Figure 8.1).
The front panel link can fit into four positions on the PCB, only
three of which are used:
2 not used
1 used for set-up options
F used for front panel control transceivers
E used for extended control head transceivers.
Link
2
1
F
E
P1
Extended control head
Link
Front panel control
IC5
21
F
E
IC3

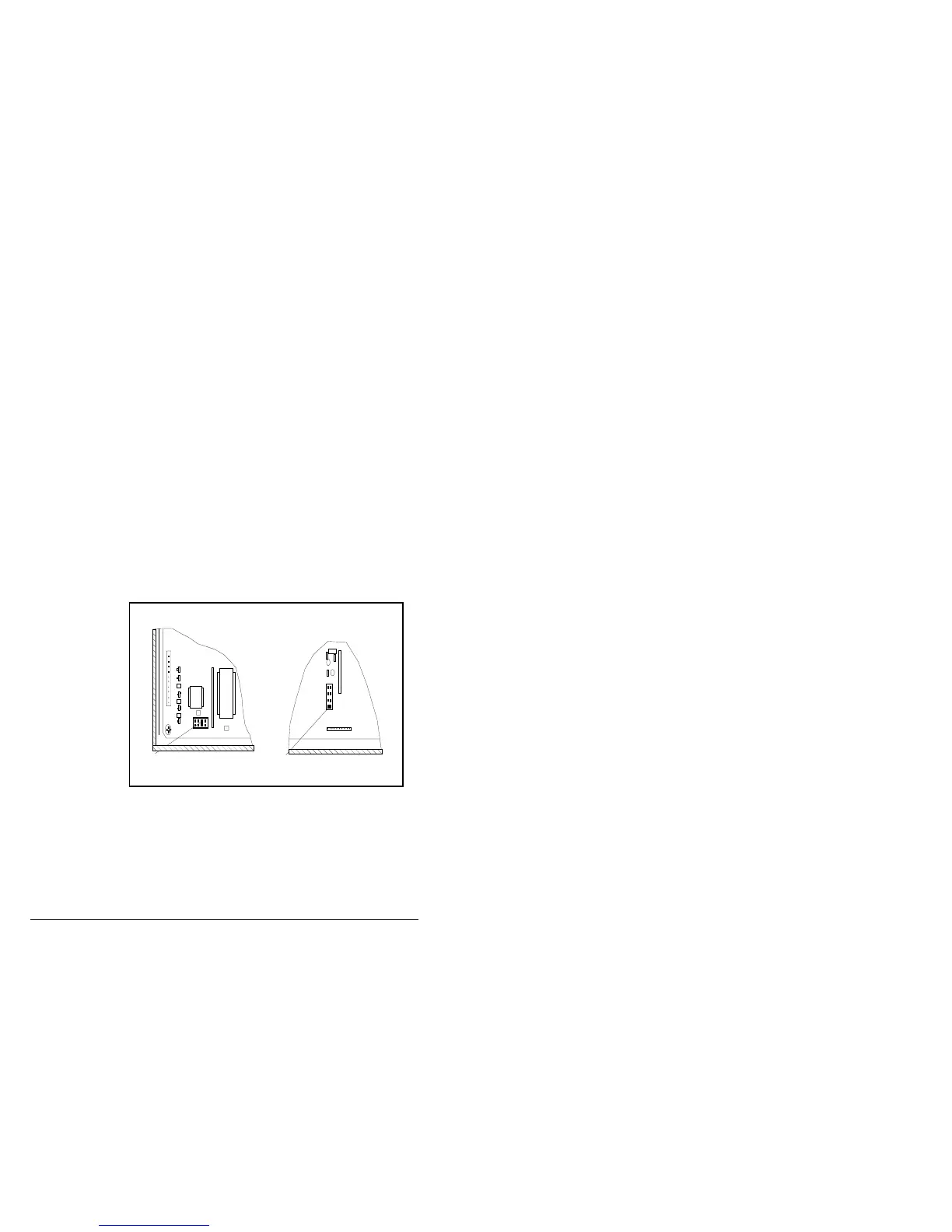

Figure 8.1: The front panel link
