Using the transceiver
Error! Main Document Only.-14 9480 HF SSB transceiver
Tuning the antenna
Before using the selected channel, the antenna must be tuned to the transmission
frequency. The procedure used to tune the antenna depends upon the type of antenna
you are using. This may be:
• an automatic tuning whip antenna
• a multi-frequency tapped whip antenna
• an antenna tuner with antenna.
The transceiver also has an auto tune facility which automatically tunes the antenna
when the Call, B’con or Emgcy button is pressed.
Automatic tuning whip antenna
Step Action… Display shows… Remarks…
1.
Select the
required channel.
Refer to page 4-9,
Selecting channels.
2.
Press
Tune

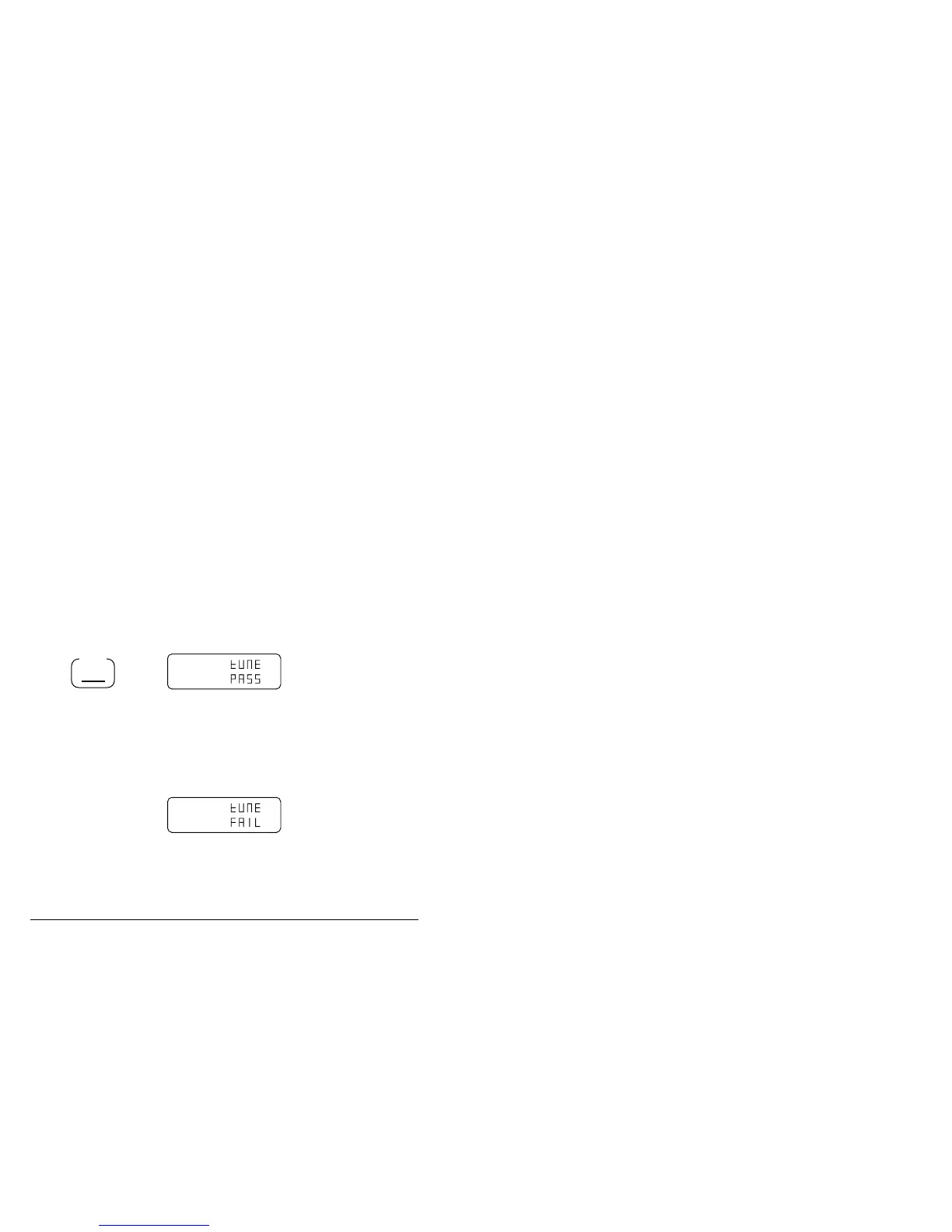

If tuning was successful
If tuning was
unsuccessful
The Tx indicator is lit
during this procedure.
You hear ‘pips’ while the
antenna is tuning.
Once tuned successfully
you hear two high
pitched ‘pips’.
If tuning is unsuccessful
you hear two low pitched
tones. For further
information, refer to the
antenna handbook.
