Front and rear panel sockets
Error! Main Document Only.-4 9480 HF SSB transceiver

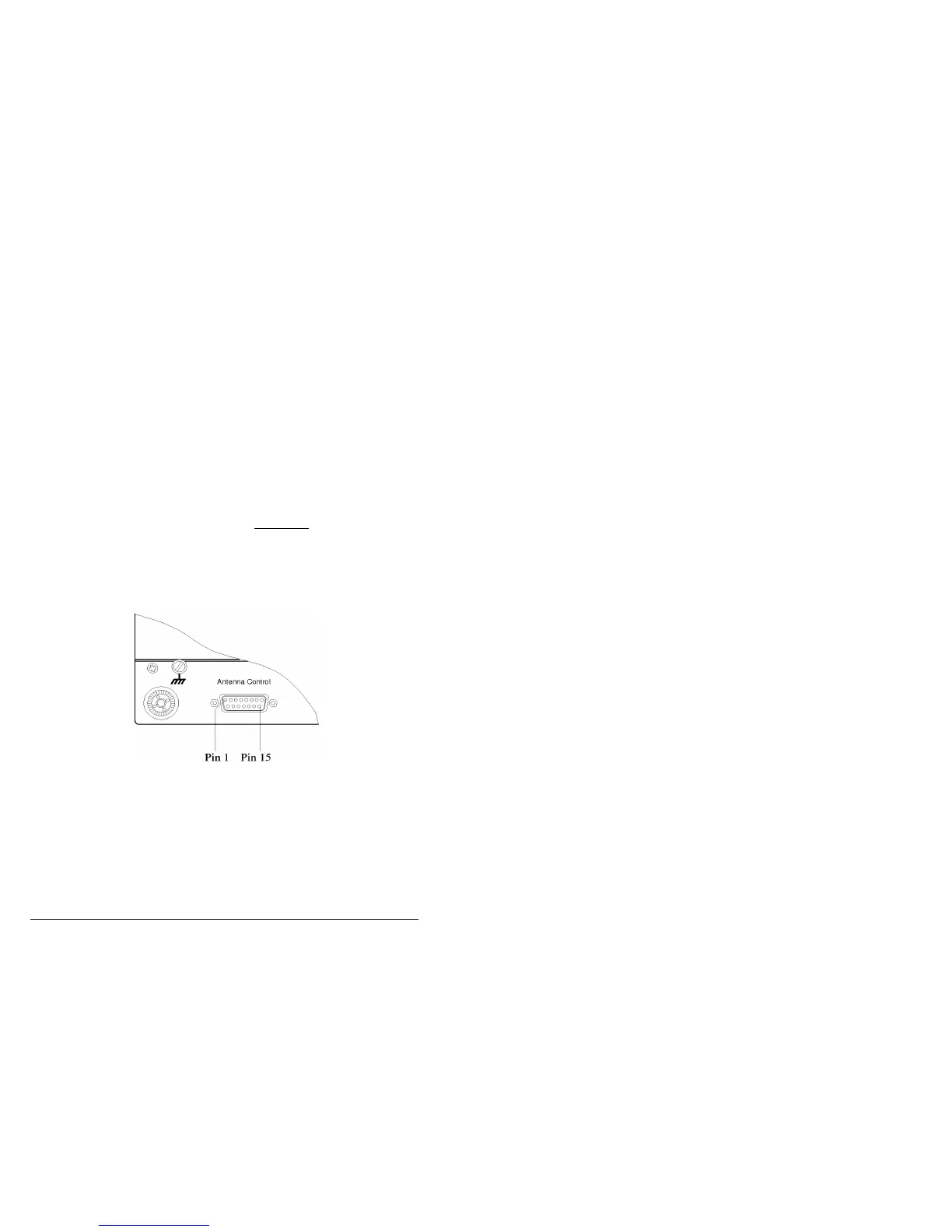

Antenna control socket
This socket is located on the rear panel of the transceiver. It allows you to connect an
automatic tuning antenna to your transceiver.
There are two options available which determine the connections made to the pins on
this socket:
• Antenna control—standard
This option allows an 8551 antenna driver to be connected to the transceiver.
• Antenna control—option AD
Fitting of this option is identified with a WARNING label fitted above the
antenna control socket.
This option allows an 8558 automatic tuning antenna to be connected to the
transceiver.
