9480 HF SSB transceiver 3-1
3. Installation
On receipt of your transceiver, check the contents against the
packing list. Ensure all items are available before
commencing installation.
The following notes provide guidance to installation but are
not intended to be comprehensive procedures. It is
recommended that installation is carried out by qualified and
experienced personnel.
There are two types of installation:
• fixed base station
• mobile.
Fixed base station
The fixed base station installation (Figure 3.1) typically
consists of an AC power supply connected directly to the
mains. DC output from the power supply is connected to the
transceiver, which in turn is connected to an antenna.
Broadband antenna system
9480 transceiver
AC Power supply
Microphone
AC mains
Coaxial cable
Earth point

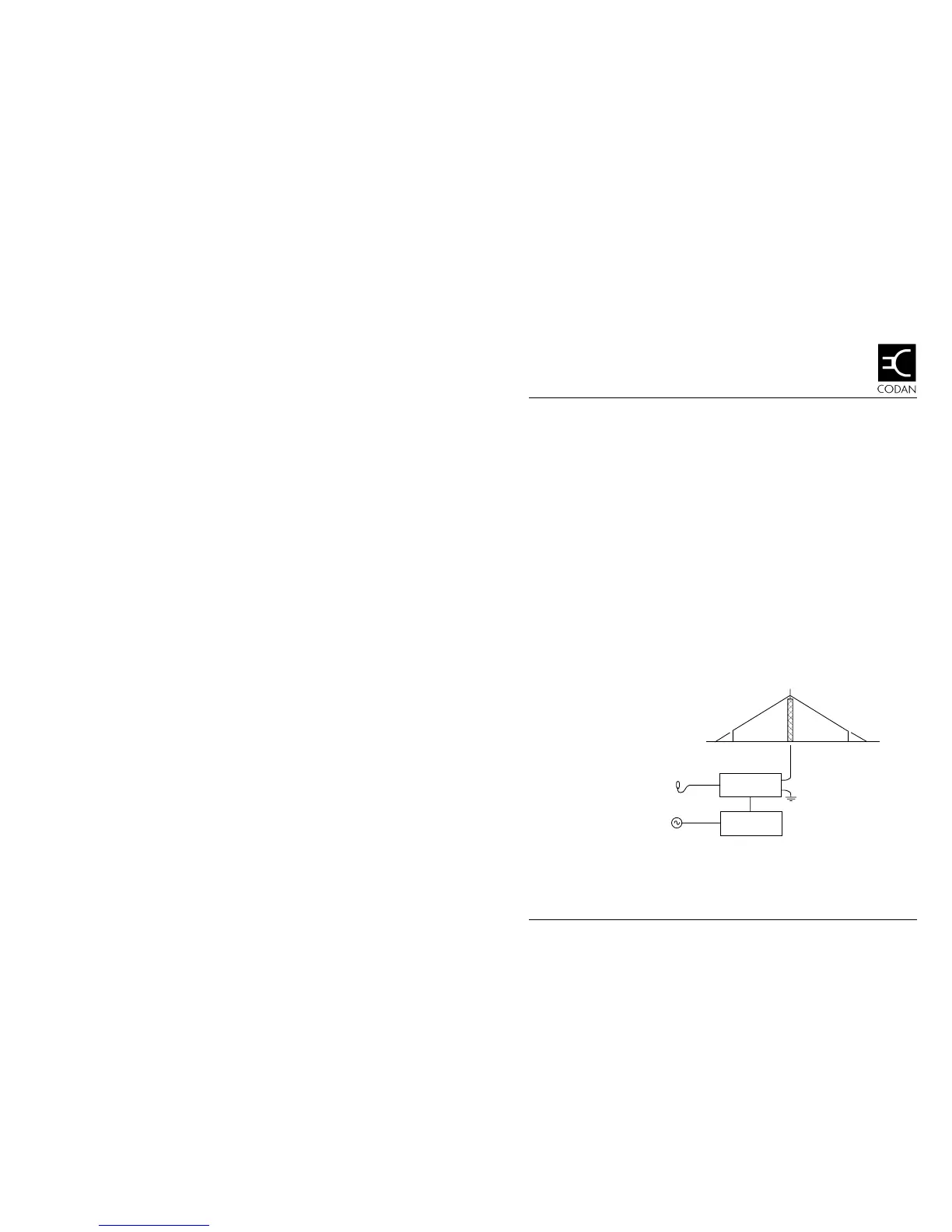

Figure 3.1: Typical fixed base station installation
