Front and rear panel sock
ets
Error! Main D
ocument Only.
-2
9480 HF SSB transceiver

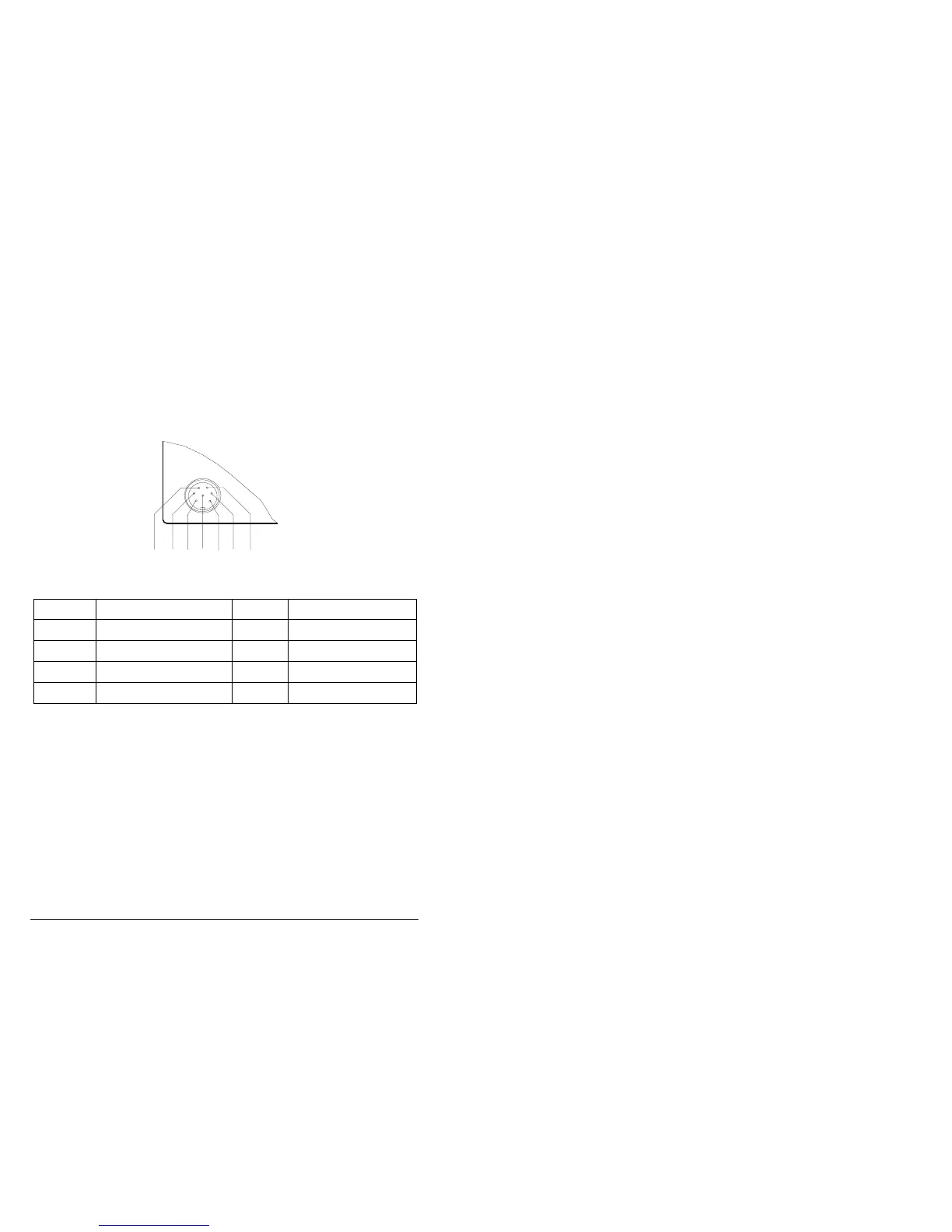

Micr
ophone socket
This socket is located on the front pan
el of the transceiver. It is used to con
nect the
microph
one to the transceiver.
12
3
4
5
6
7
Control head view
Pin No.
Designation
Pin No.
Designatio
n
1
PT
T gro
und
5
N/C
2
PTT
(active low)
6
Audi
o output
3
Microphone in
put
7
Audi
o ground
4
Microphone g
round
q
137
139
Table of Contents
Default Chapter
5
Table of Contents
5
1 About this Handbook
11
Who Should Use this Handbook
11
Icons and Standards
11
Glossary
12
2 Overview
13
The Transceiver and Control Head Front Panels
15
The Transceiver and Control Head Rear Panels
19
The Transceiver Front Panel
20
The Control Head Front Panel
21
The Transceiver Rear Panel
22
The Control Head Rear Panel
22
3 Installation
23
Fixed Base Station
23
Typical Fixed Base Station Installation
23
Mobile
24
Typical Mobile Installation
24
Mounting the Transceiver
25
Code 117 Mounting Cradle-Front Entry
26
Code 118 Mounting Cradle-Top/Bottom Entry
27
Mounting the Extended Control Head
28
Power Supply
30
Grounding
31
Antennas
31
4 Using the Transceiver
33
Switching the Transceiver on or off
34
Switching on or off Without a PIN
34
Switching on or off with a PIN
35
The Transceiver Display
36
Option Codes
36
Displaying the Channel Option
37
Dimming the Display and Indicators
38
Reviewing the EPROM Version and Options
39
Selecting Channels
41
Using the Channel Buttons
41
Adjusting the Volume
42
Using the Clarifier
43
Changing the Operating Mode (USB-LSB)
44
Using the Mute Control
45
Voice Mute
45
Selective Call Mute
45
Tuning the Antenna
46
Automatic Tuning Whip Antenna
46
Multi-Frequency Tapped Whip Antenna
47
Antenna Tuners
48
Transmitting
50
Using the Microphone
50
Transmitting a Message
51
Setting up for Emergency Call Transmission
53
Making an Emergency Call
55
Automatic Method
55
Manual Override
56
Setting up to Receive an Emergency Call
57
Receiving an Emergency Call
60
5 Using Selective Call
61
Selective Call Terms
62
Setting up Selective Call
64
Setting the Preamble Time Period
65
Setting the Fixed Called Address
66
Setting the Self-Identification Address
67
Enabling or Disabling Selective Call Lockout
68
Enabling the Beacon Mode
68
Checking if a Channel Is Enabled for Selective Call
69
Selective Call Mute Enable or Inhibit
70
Enabling a Channel for Selective Call
72
Transmitting a Selective Call
74
Receiving a Selective Call
77
Answering a Received Call
78
Returning a Received Call
79
Reviewing the List of Received Calls in Memory
80
Reviewing Calls Held in Memory
81
Using the Beacon Feature
83
Selective Beacon Mode
85
Beacon Mode
87
Using the External Alarm Feature
89
6 Using the Receiver in Scan Mode
91
Setting up the Scan Mode
92
Programming the Channels to be Scanned
94
Receiving in Scan Mode
96
Start Scanning
96
Stop Scanning
96
Changing the Scan Mode
97
Using Selective Call in Scan Mode
99
7 Programming Channels
101
Setting up the Channel Inhibit Options
102
Checking if the Inhibit Link Is Fitted to the PCB
103
Changing the Inhibit Options
104
Creating Receive Only Channels
106
Creating Transmit and Receive Channels
108
Deleting Unwanted Channels
111
Programming Display Messages
112
Inhibit (Inhib)
112
Used (Used)
112
Full (FULL)
113
Too High or too Low (too Hi or too Lo)
113
Setting up Temporary Channels
113
8 Changing the Setup Options
115
Setup Option Links
115
The Front Panel Link
116
Changing the Position of the Front Panel Link
117
The Microprocessor PCB Link
118
The Microprocessor Link
118
Inserting the Microprocessor PCB Link
119
Reviewing Setup Options
120
PTT Timer
121
Enter a PIN (Personal Identification Number)
123
Changing or Deleting a PIN
125
Power-On Settings
127
Mute Settings
127
Beep Volume
129
9 Display Messages
131
Messages and Operator Errors
132
System Errors
135
Reviewing the EPROM Program Content
136
10 Front and Rear Panel Sockets
137
Microphone Socket
138
External Alarm Socket
139
Antenna Control Socket
140
Antenna Control-Standard
141
Antenna Control-Option AD
142
Remote Control Socket
143
11 Specifications
145
12 Options and Accessories
147
