Installation
3-4 9480 HF SSB transceiver
Code 117 mounting cradle—front entry
Step Action
1.
The cradle can support the transceiver from above or below
permitting roof or floor mounting.
Secure the mounting cradle into position with the rotating
cam catches to the front. Ensure there is sufficient space at
the rear of the cradle to take the transceiver heat sink and
connectors.
2.

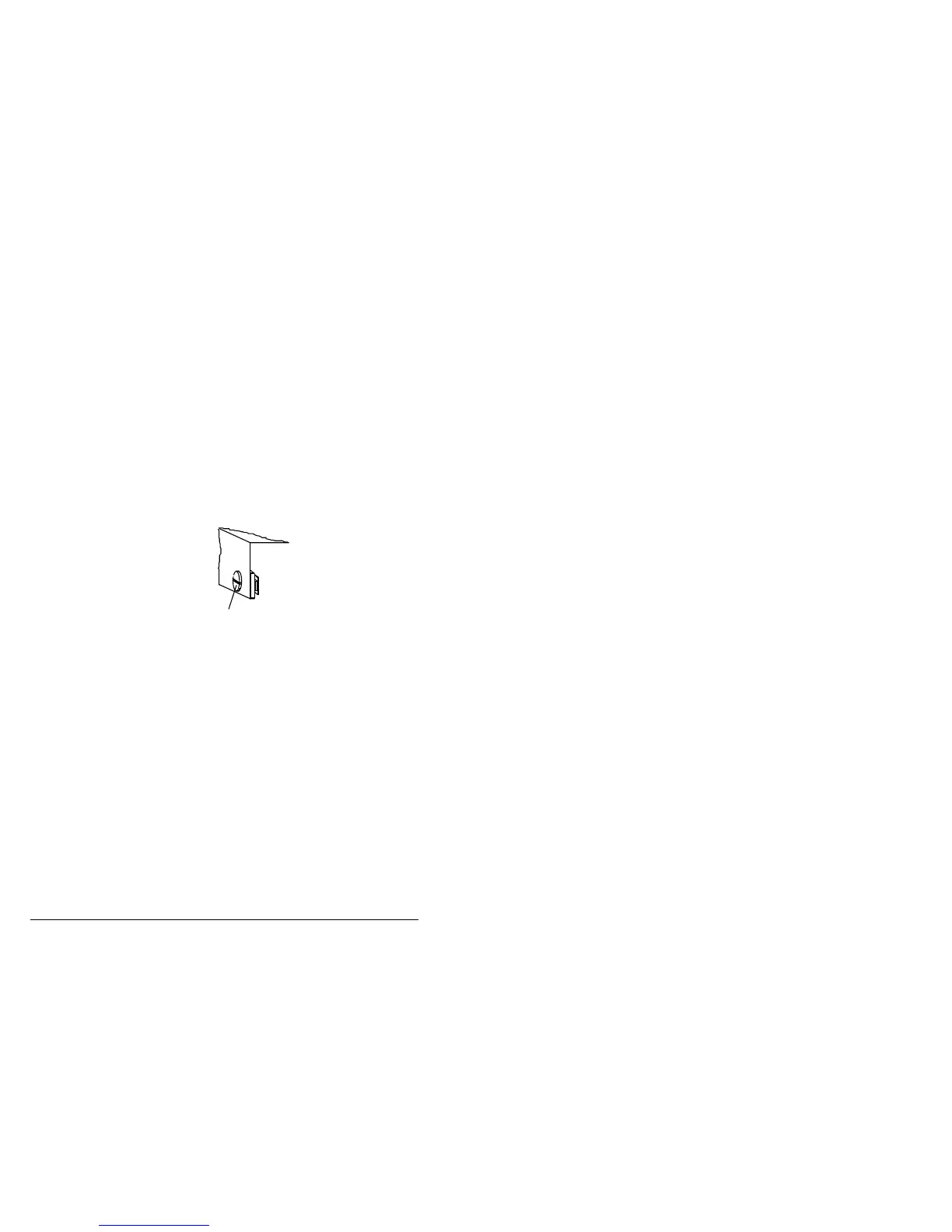

Align both cam catch slots with the T-section slides.
Cam catch
(Slot in line
with T slide)
Front section
3.
Insert the transceiver side rails into the T-section slides and
push the transceiver fully into the cradle.
4.
Apply gentle pressure to the front panel of the transceiver
and lock into the cradle by turning the cam catches one
quarter of a turn in either direction with a suitable tool or
small coin.
q
