Programming channels
7-4 9480 HF SSB transceiver
Changing the inhibit options
Only qualified technicians should complete this procedure. This mode can only be
entered if the Inhibit link is fitted across pad 2 on the microprocessor PCB and the
front panel link is repositioned. Refer to Section 8, Inserting the microprocessor link
and Changing the position of the front panel link.
Step Action… Display shows… Remarks…
1.
Turn the
transceiver off
and move the
front panel link to
position 1.
No display. Before moving the link,
note its original position.
Refer to Section 8,
Changing the position of
the front panel link.
2.
Insert an Inhibit
link across the
number 2 pads on
the
microprocessor
PCB.
Refer to Section 8,
Inserting the
microprocessor PCB
link.
3.
Hold down
Enter
and press
On/Off

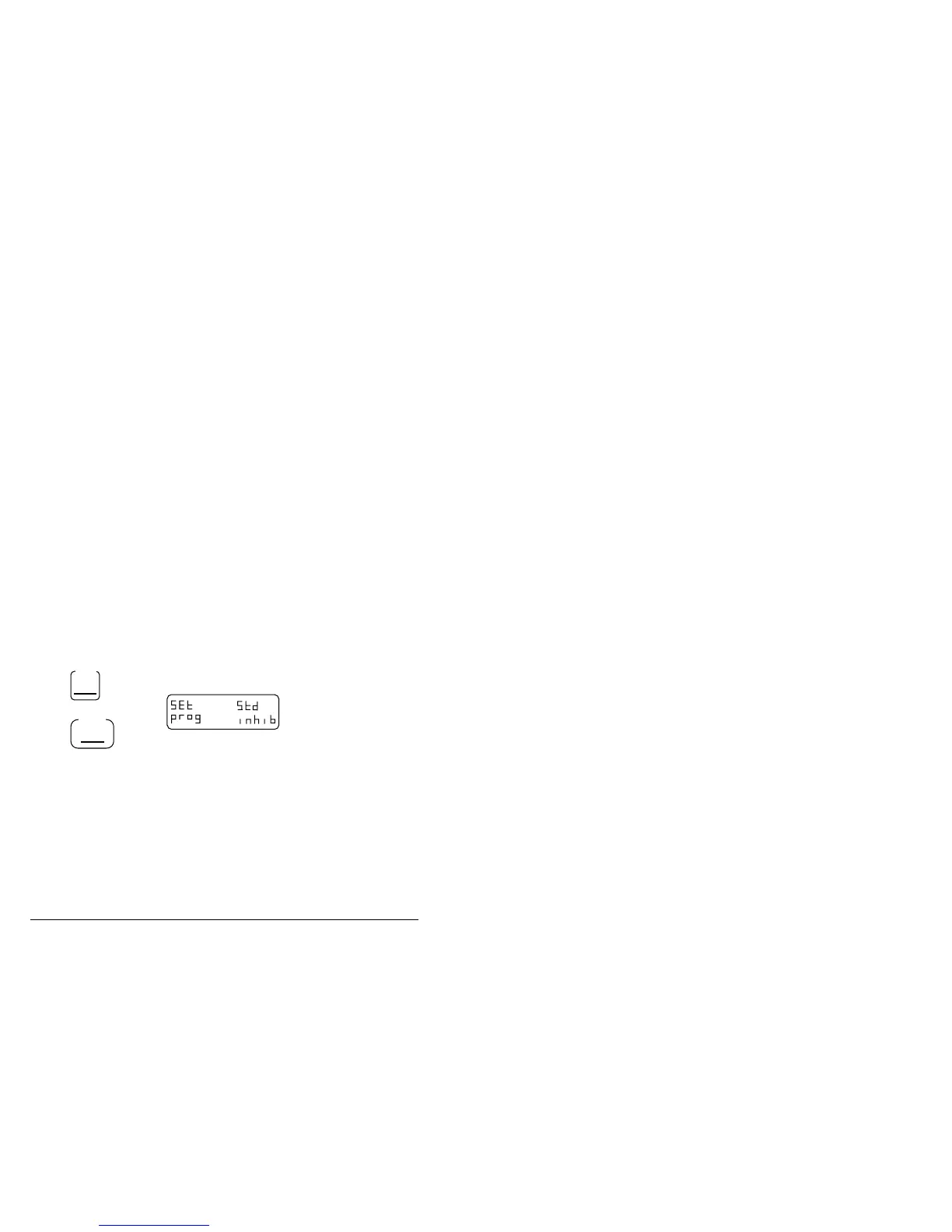

Hold the Enter button
down until the display
shows
This display shows your
last setting, either ‘Std’,
‘Full’ or ‘Total inhib’.
Pressing the Enter button
scrolls through the
available options.
If this is the option you
want, go to step 6.
To Next Page
