NGT—Checks and adjustments
160 NGT Transceiver System Technical Service Manual
Adjustment locations and test points

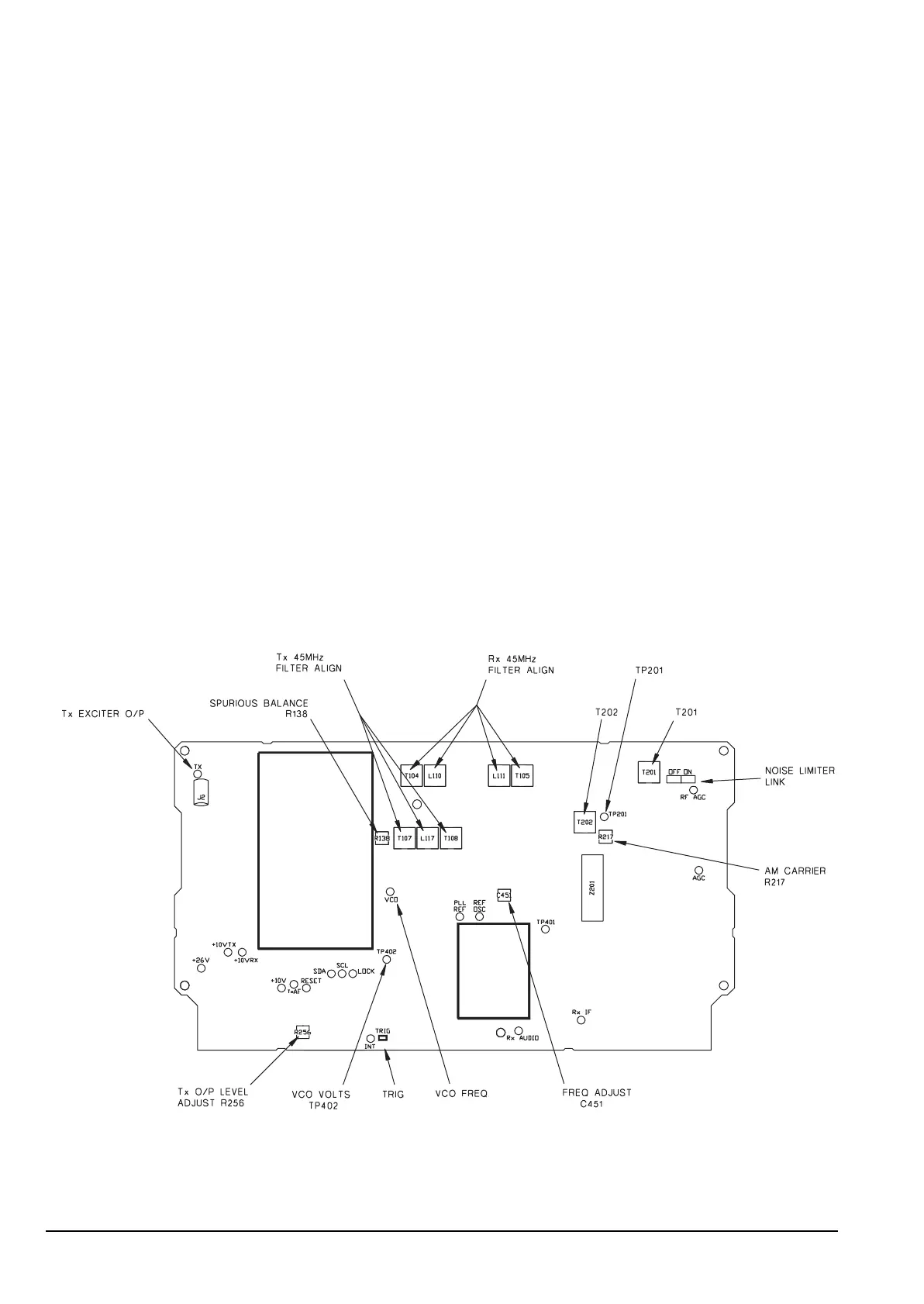

Figure 28: RF/IF PCB in the RF unit (08-05261)
To view the adjustment locations and test points for the... See...
RF/IF PCB in the RF unit (08-05261) Figure 28 on page 160
RF/IF PCB in the RF unit (08-05889) Figure 29 on page 161
PA PCB in the RF unit (08-05415 or 08-05511) Figure 30 on page 161
PA PCB in the RF unit (08-05869) Figure 31 on page 162
PA PCB in the RF unit (08-06461) Figure 32 on page 162
Filter and Control PCB in the RF unit (08-05416) Figure 33 on page 163
Filter and Control PCB in the RF unit (08-05910) Figure 34 on page 163
Audio Interface PCB in the RF unit (08-05266, 2010 only) Figure 35 on page 164
Audio & Interconnect PCB in the RF unit (08-05988, 2011
only)
Figure 36 on page 164
Audio Interconnect & Data I/O PCB in the RF unit (08-06261,
2012 only)
Figure 37 on page 165
