NGT—Overview and specifications
46 NGT Transceiver System Technical Service Manual

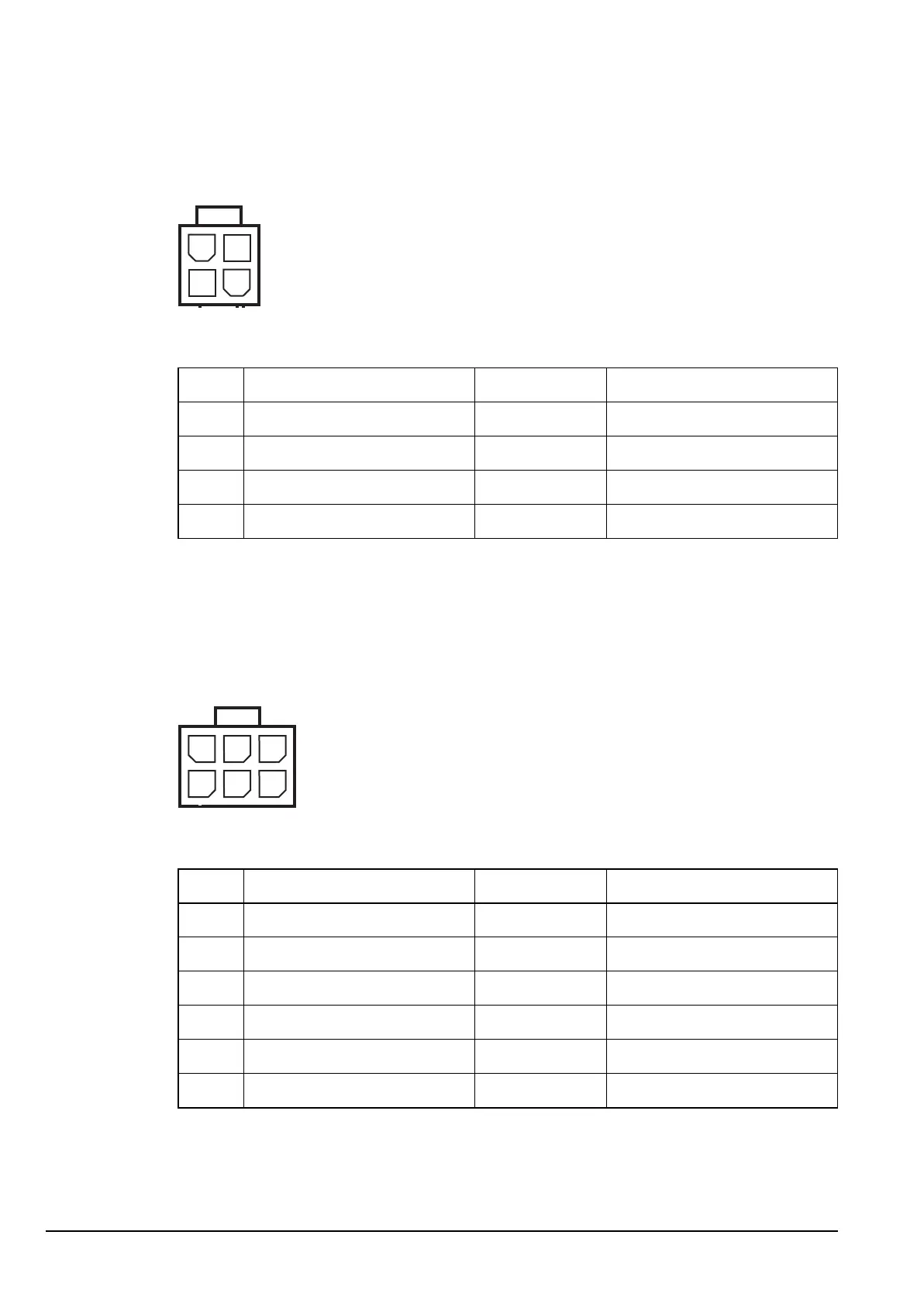

Pinouts of the 4-way connector on the RF unit (2011/2012 only)
Figure 10: Front view of the 4-way connector on the RF unit (2011/2012 only)
Pinouts of the 6-way connector on the RF unit (2011/2012 only)
Figure 11: Front view of the 6-way connector on the RF unit (2011/2012 only)
Table 9: Pinouts of the 4-way connector on the RF unit (2011/2012 only)
Pin no. Function Input/output Signal level
1 A rail protected (2 A) Output +13.6 V nominal
2 Ground 0 V
3 RS232 Transmit data Output RS232
4 RS233 Receive data Input RS232
Table 10: Pinouts of the 6-way connector on the RF unit (2011/2012 only)
Pin no. Function Input/output Signal level
1 A rail protected (2 A) Output +13.6 V nominal
2 Ground 0 V
3 RS232 Transmit data A Output RS232
4 RS233 Receive data A Input RS232
5 RS232 Transmit data B Output RS232
6 RS233 Receive data B Input RS232
1
23
4
1
2
4
3
5
6
