Codan NGT 2010 RF - Figure 31: PA PCB in the RF unit (08-05869); Figure 32: PA PCB in the RF unit (08-06461)

NGT—Checks and adjustments
162 NGT Transceiver System Technical Service Manual

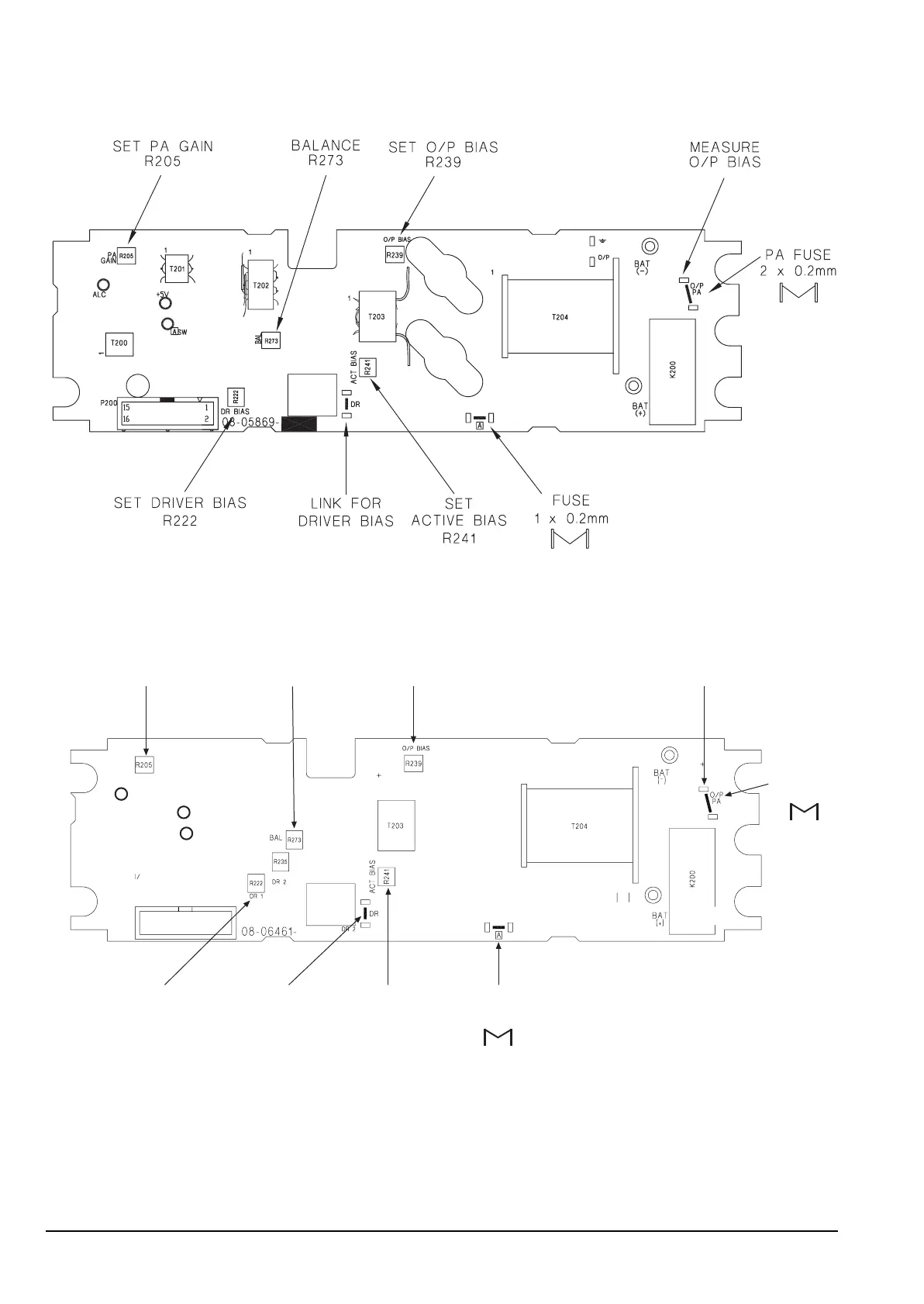

Figure 31: PA PCB in the RF unit (08-05869)
Figure 32: PA PCB in the RF unit (08-06461)
+5V
ALC
ASW
SET PA GAIN
R205
BALANCE
R273
SET O/P
R239
MEASURE
O/P BIAS
SET
ACTIVE BIAS
R241
LINK FOR
DRIVER BIAS
SET DRIVER BIAS
R222
FUSE
1 X 0.2 mm
PA FUSE
2 X 0.2 mm
