3-14 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: d-ch3 Installing the Rack Model Last Saved On: 12/13/99 3:43 PM
CZR4-006.eps

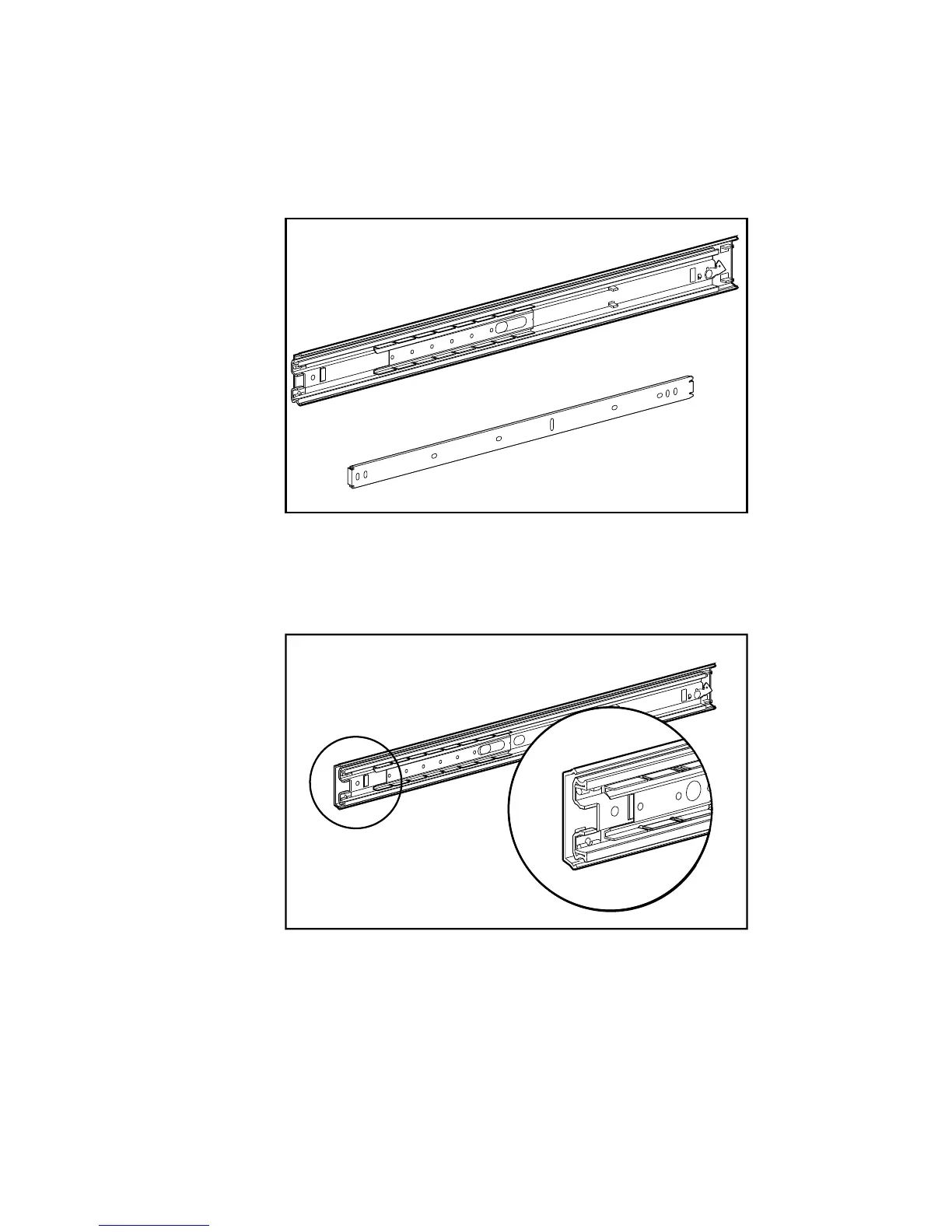

Figure 3-6. Separated bracket rail (top) and component rail
The bracket rail consists of a fixed outer rail that screws to the rack-mounting
bracket, and an inner slide on a steel ball bearing movement. The inner slide
does not detach from its housing.
CZR4-007.eps
Figure 3-7. Bracket rail with inner slide
6. Set the bracket rail inside the mounting bracket with the front of both
pieces oriented in the same direction. Align the front screw holes in the
mounting bracket and the bracket rail as shown below.
G The front of the mounting bracket has alignment tabs on its flange.
