3-22 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: d-ch3 Installing the Rack Model Last Saved On: 12/13/99 3:43 PM
Use the following procedure to mount and secure your server in the rack:
1. Pull the slide rails forward until they are fully extended from the
mounting brackets. At full extension, the rails lock into place, as shown
in the following figure.

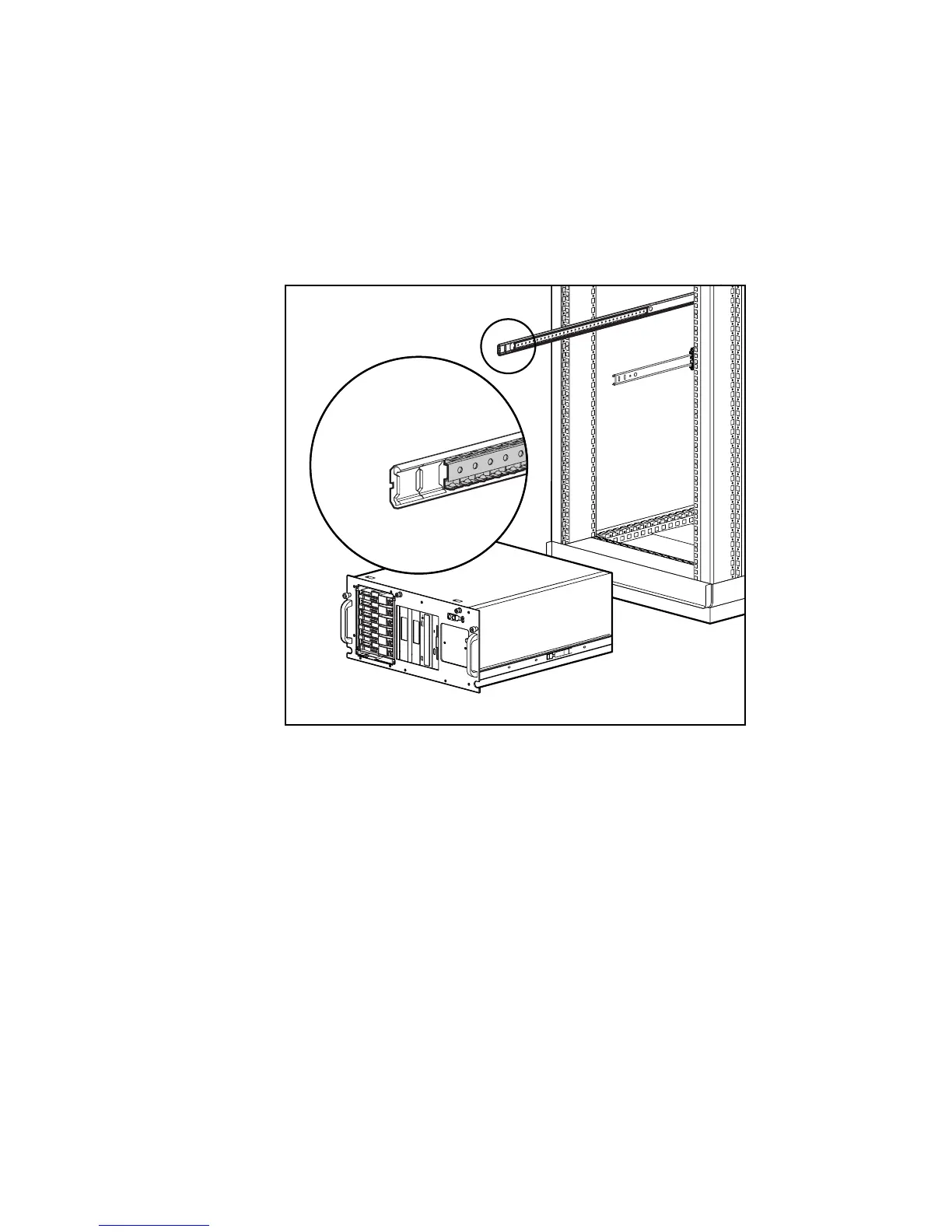

Figure 3-15. Extending the rack rails until they lock into place
