Installation – RF Path Elements P/N 709C011801 Page 112
5.2.2.9 Verify Normal Operation
Verify normal operation via RAU LEDs (located on enclosure cover – see Figure 5-72):
LED Description
LINK RAU Only: Blinking Green
RAU + RxU Installed: Steady Green
POWER Steady Green - Input power within required range detected
RUN Steady Green - Module SW has initialized and is up and running
Blinking Green – Fault detected
Off – Power off
Note: Refer to section 2.3.2 for complete description of LEDs.

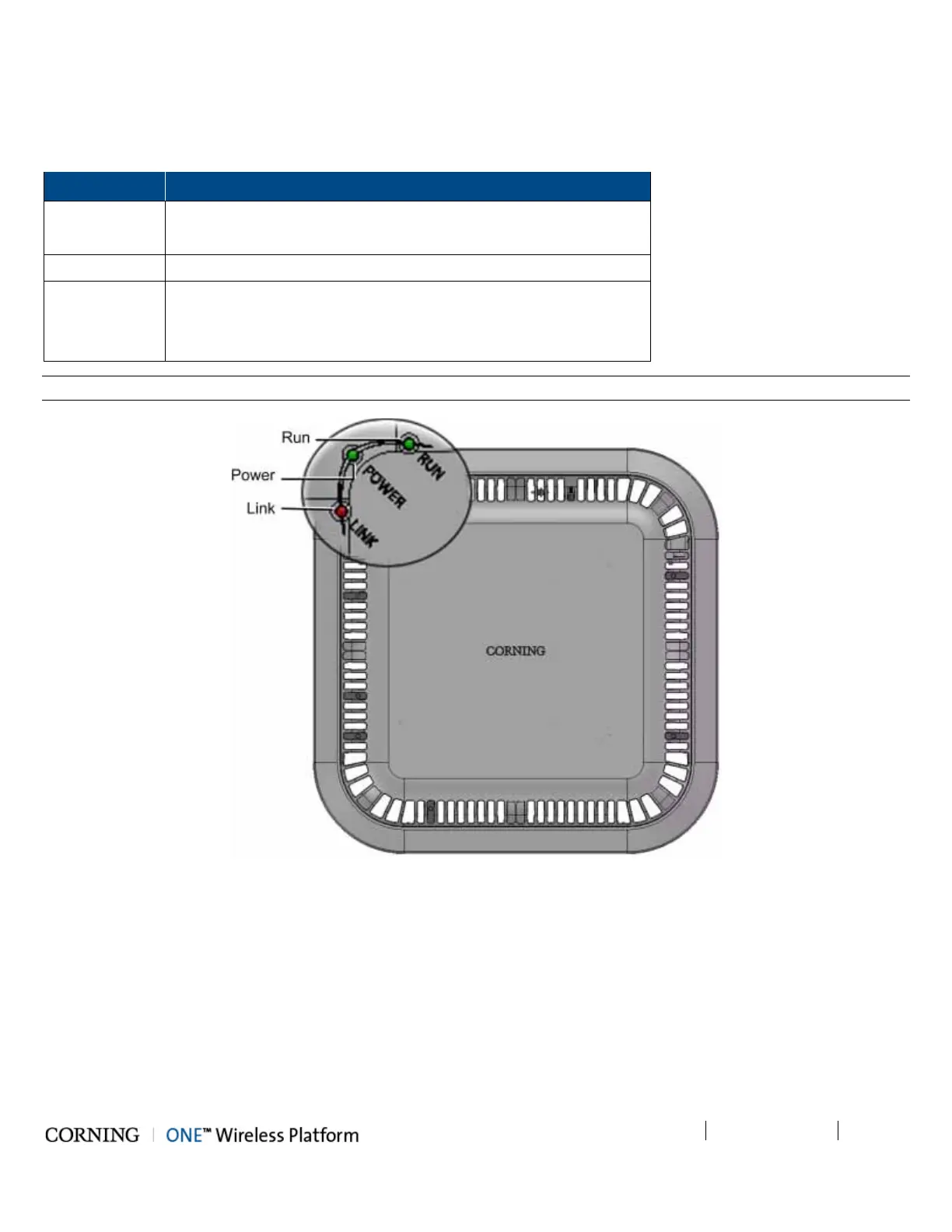

Figure 5-72. RAU LEDs
