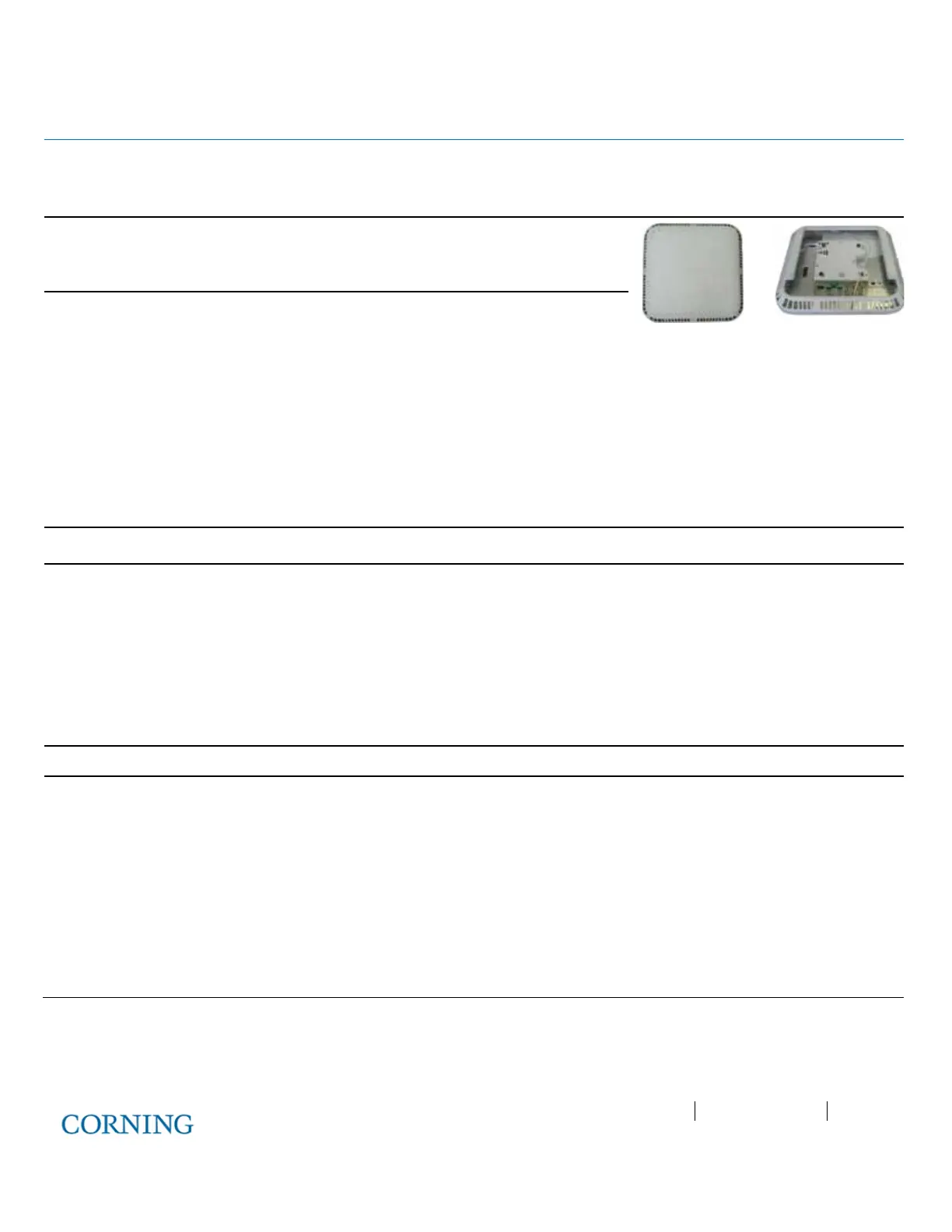

Remote Access Unit (RAU)
RAU will host the following modules:
1. RxU; Remote Expansion Module, for additional LTE and AWS MIMO service. One module per RAU.
2. GEM; Giga bit Ethernet Module – upgrade module for the RAU. One module per RAU
Supported Services
SISO: CELL, PCS, AWS, 700LTE
MIMO: AWS/ 700LTE
(with Expansion Module - RxU)
Interface Connections
Two LC APC SM fiber connectors; UL and DL
Two DC power Inputs ports; Main and secondary in case
of PoE clients.
Two QMA RF Ports; for External cavity filter (In/Out) use
- LTE and CELL filters
One Broadband External antenna QMA connector
(connected antenna must have a return loss of 12 dB)
One RJ-45 MGMT (local) connection
RxU module interface – power, digital and RF
GEM module Interface – power and digital
Antenna
Omni Directional; 0 dBi (15
◦
down from horizon)
Power Consumption
For Main Power Input: Input Range: 37-57 V DC
RAU: 37 V; 35 W
RAU + RxU: 37 V; 60 W
RAU + GEM: 37 V; 39 W
RAU + RxU + GEM: 37 V; 64 W
For Secondary Power
Input:
For 2 PoE ports of 802.3af: 43 V; 30 W (Input range: 43 - 57 V DC)
For 2 PoE ports of 802.3at: 52 V; 62 W (Input range: 52 - 57 V DC)
Management
Managed via the HCM
Physical Characteristics
(Enclosure and Modules)
Mounting: Wall/ceiling (Horizontal mount)
Mounting bracket included in installation kit
Dimensions
(H x W X D):
4 x 13.1 x 13.1 in (including mounting bracket)
(101.6 x 332.7 x 332.7 mm)
Weight: RAU only: 7.93 lbs (3.6 kg)
RAU + RXU + GEM: 12.12 lbs (5.5 kg)
Environment
Ambient Temperature:
Wall-mount installations: 45
◦
C (113
◦
F)
Ceiling-mount installations: 50
◦
C (122
◦
F)
