5.1.2.5 RIM Connections to RF Source
For each service specific RIM - connect (Simplex or Duplex) RF QMA connectors to the service providers’ external RF source.
See Figure 5-9.

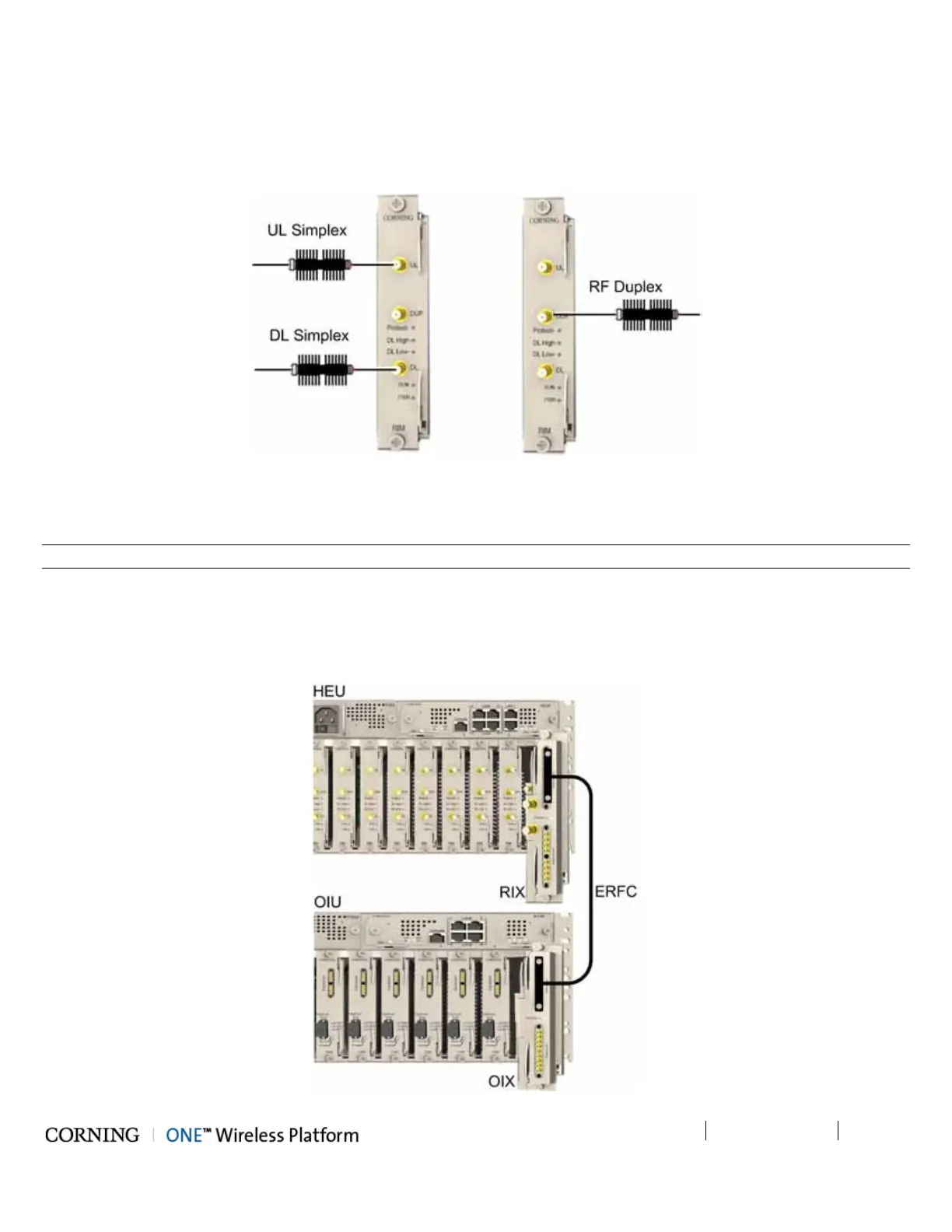

Figure 5-9. RIM RF Source Interfaces
5.1.2.6 RIX to OIX Connections
Note: Each RIX module supports connections to up to two OIUs.
Using the appropriate length ERFC cable (according to distance of available OIX port) connect the HEU RIX module 9-Pin
connector to the corresponding connector on the OIU OIX module. See Figure 5-10.
Refer to Section 5.1.2.7 for schematic diagram of coax connections in a maximum HEU-OIU configuration of 4x4 where all HEU
units are connected to all OIU units.
Figure 5-10. HEU to OIU Coax Connections
