CORNING ONE - Optical Interface Unit (OIU) (Continued); Intermediate Centralized Unit (ICU)

Appendix B: Specifications P/N 709C011801 Page 141
DRAFT
Optical Interface Unit (OIU)
(continued)
Physical
Characteristics
(Chassis +
Modules)
Mounting: Rack-mount – 19 in and 4U
Dimensions
( H x W x D):
Chassis: 7 x 17.3 x 18.95 in
(177.8 x 440 x 481.7 mm)
Cable Management
Tray:
6.96 x 20.02 x 4.35 in
(176.9 x 508.6 x 110.6 mm)
Weight:
Chassis :
Per OIM:
Per OIX:
ACM:
PSM:
37 lbs (16.8 kg)
1.5 lbs (0.7 kg)
1.54 lbs (0.7 kg)
2.2 lbs (1.0 kg)
1.98 lbs (0.9 kg)

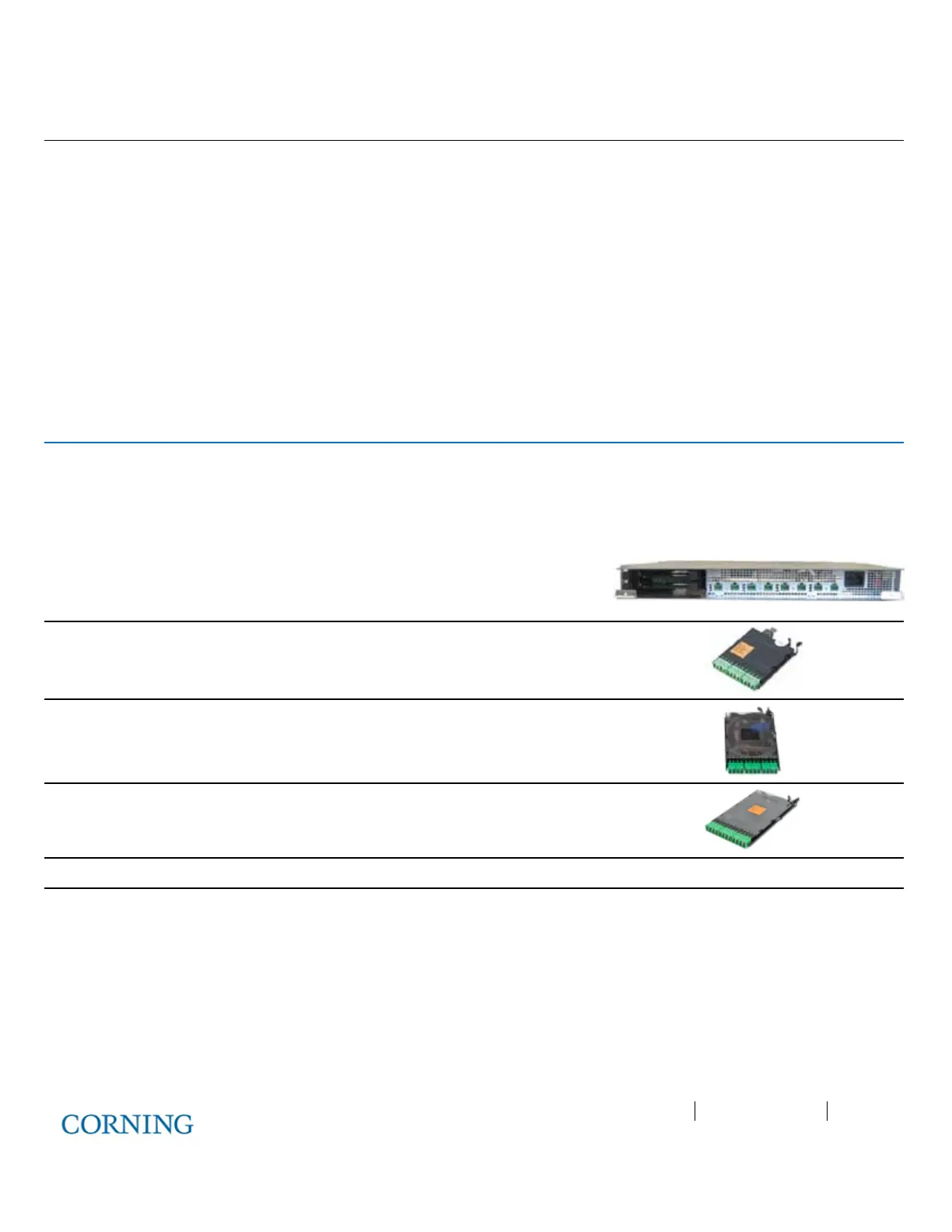

Intermediate Centralized Unit (ICU)
ICU will host the following modules:
1. PSM-I; Power Supply Module, up to four PSM-I modules can be installed.
2. Pretium EDGE
®
Module – MTP
®
to LC APC splice module/cassette/field-term cassette. Up to two EDGE
®
Modules can
be installed.
Chassis Interfaces
Power Input: 110-240 V AC, 50-60 Hz power
Output: Eight DC ports- 57 V DC, Max. 60V (UL limit)
Pretium Edge
®
Module
Interfaces
Pretium EDGE® Module, 12 F, LC APC to MTP®
APC Connector, Single-mode (OS2)
Pretium Edge
®
Splice
Cassette Interfaces
12 F, LC duplex, Single-mode APC, single-fiber
Pretium Edge
®
Field-Term
Cassette Interfaces
12 F, LC duplex, Single-mode APC, No Pigtail
Power Consumption
ICU with four PSM-I: 942 W
Physical Characteristics
(Chassis)
Mounting: Rack-mount – 19 in 1U
Dimensions
(H x W x D):
1.74 x 17 x 19.2 in
(44.4 x 431.8 x 11.96 mm)
Weight: 5.5 lbs (2.5 kg) – without PSM
