Installation – RF Path Elements P/N 709C011801 Page 91
5.2 RF Remote-End Installation
The remote end site (RF coverage) installation consists of installing the ICU and RAU module(s).
5.2.1 ICU Installation
Note the following:
• The ICU is a passive unit installed at the floor level and provides the power and fiber interfaces to the RAU units (and to the
GEU for the digital path).
• Connections between the ICU and the RAU units are performed via Corning composite cables (ordered separately)
consisting of:
• two DC wires
• three LC APC pairs
• The chassis and modules are supplied separately and must be inserted by the user.
• All ICU modules (i.e. PS and Edge) are hot-swappable
• Each ICU chassis hosts up to four Power Supply modules and up to two Edge modules

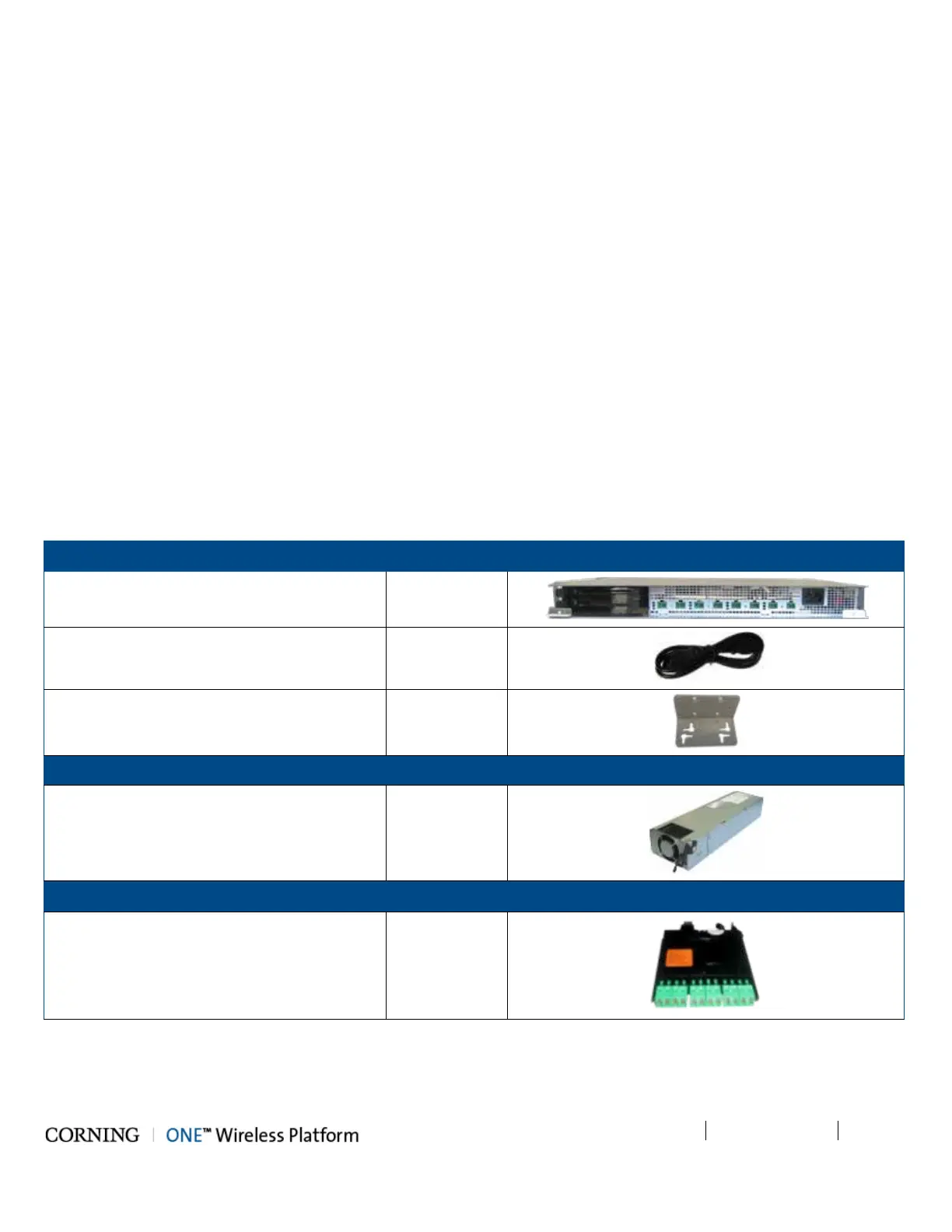

5.2.1.1 Items Required for ICU Installation
The following kits and included items are required for installing the ICU. If any of the listed items are missing, contact your CMA
representative.
ICU Chassis Kit Quantity Item
ICU Chassis 1
IEC 60320-1 C13 right angled, AC power cable
110-240V AC, 50-60
1
Wall mount bracket 2
Power Supply Kit (1 to 4 according to order) Quantity Item
Power supply module 1
Edge Module Kit (1to 2 according to order) Quantity Item
Edge Module 1
